N15
Model | N15 |
Color | Black (Color can be customized) |
Material | High-quality all aluminum，surface anodic oxidation |
Processor | Onboard Intel Core i5 8250U（Quad core eight threads，1.6GHz，Max turbo 3.4GHz，Cache 6MB）； |
Onboard Intel Core i7 8550U（Quad core eight threads，1.8GHz，Max turbo 4.0GHz，Cache 8MB） | |
RAM | Support 1*DDR4 2133/2400 SODIMM RAM Slot，Max. Support 16GB |
BIOS | AMI EFI BIOS |
Display Chip | Integrated Intel HD Graphics 620 |
Display Port | 1*DP，1*HDMI |

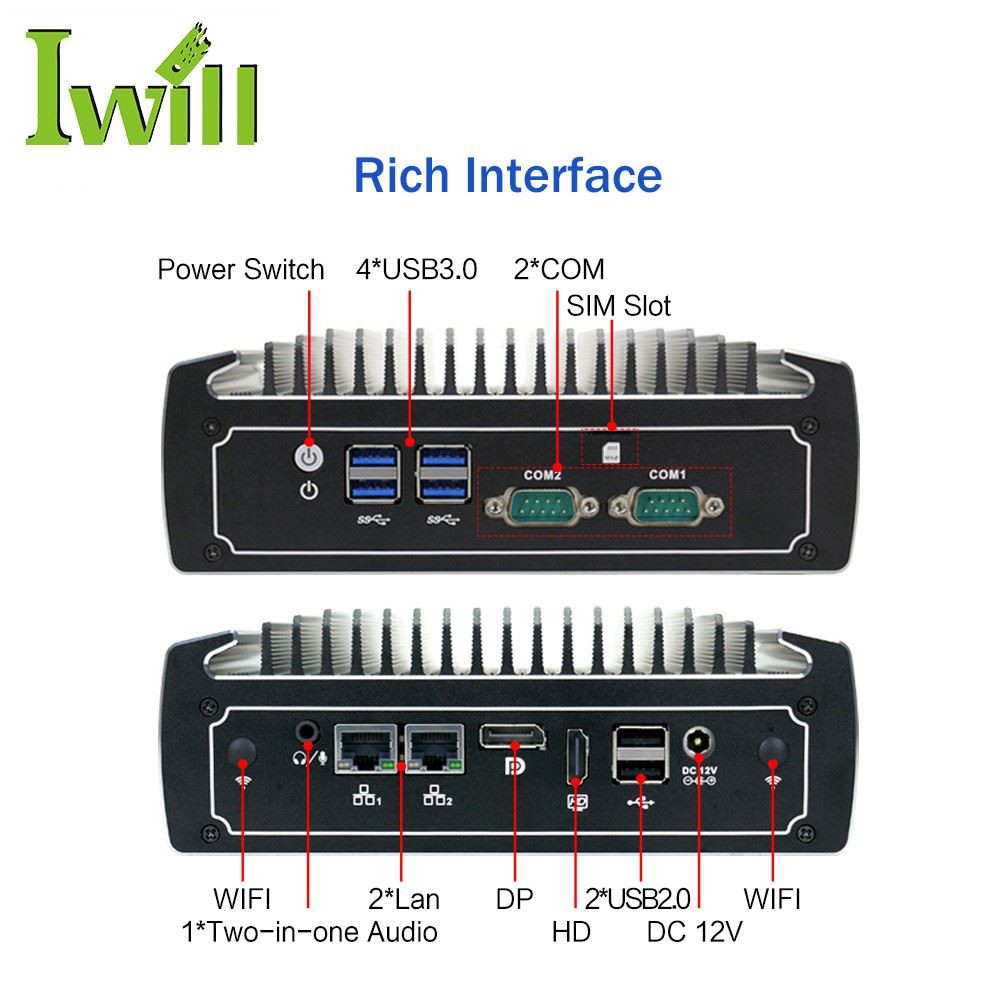

Front I/O | 2*COM（COM2 RS232/485 Optional），4*USB3.0，1*Power Switch，1*SIM Slot |
Rear I/O | 1*DC，2*USB2.0，1*HDMI，1*DP，2*Intel 1000M LAN, |
1*Audio (Support Mic and Speaker at the same time) | |

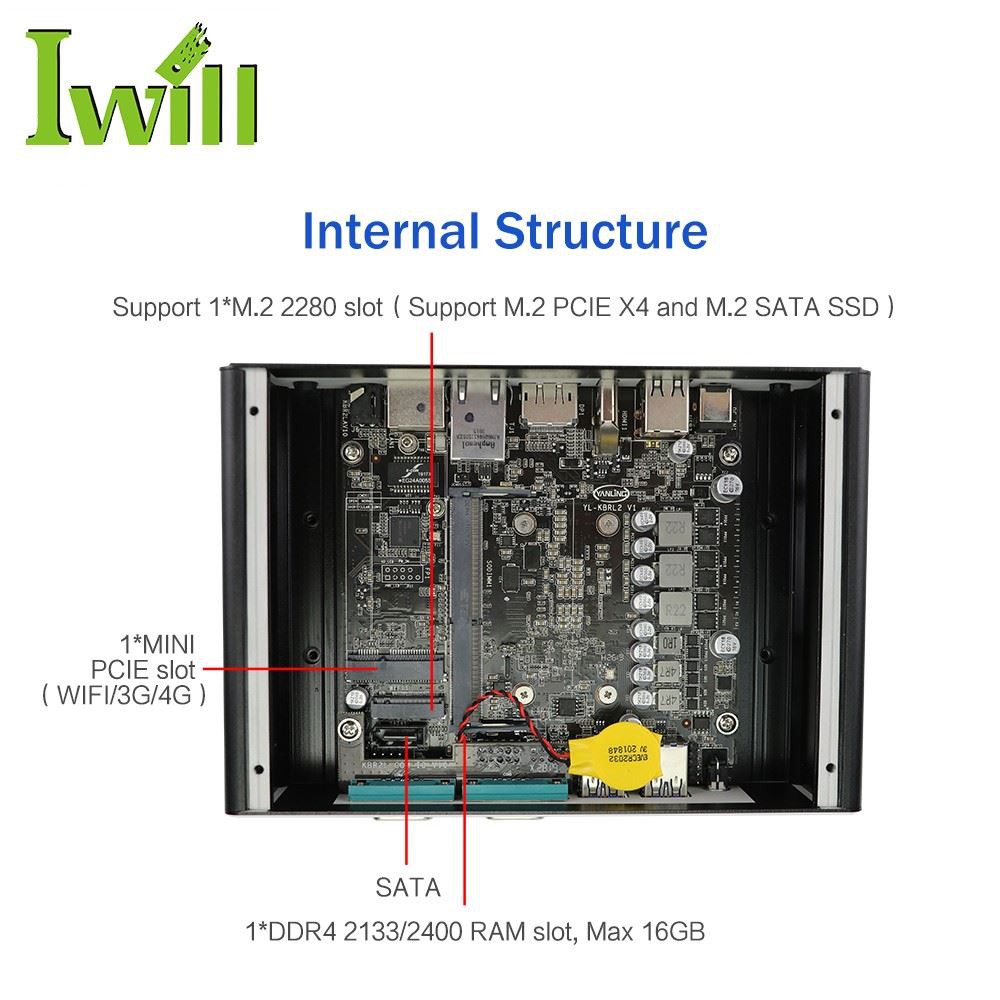

Expansion Slot | Support 1*M.2 2280 Slot（Compatible with PCIE X4 and SATA signal） |
Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），SIM Slot on front plate | |
Network | 2*Intel i211-AT 10/100/1000M LAN |
Storage | Support 1*M.2 2280 Slot，1*2.5”HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
Work Temp | 0℃ ～ +40℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Dimension | 186 * 126.5 * 66 mm |
Net Weight | 1.3 kg |
N3022
Model | Nano N3022 |
Color | Black (color can be customized) |
Material | High-quality all aluminum |
Processor | Intel Core i3 10110U (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache) |
Intel Core i5 10210U (Quad core 8 threads, 1.6G,Max. Turbo 4.2G, 6MB Cache) | |
CPU Architecture | Comet Lake |
RAM | Support 1*DDR4 2666/2933 SODIMM memory slot, Max. Support 32GB |
BIOS | AMI EFI BIOS |
Display Chip | Intel UHD Graphics for 10th Gen Intel Processors |
Display Port | 1*DP, 1*HDMI |
Front I/O | 2*COM (2*COM RS232/485 is Optional), 4*USB3.0, 1*Power Switch, 1*SIM slot |
Rear I/O | 1*DC-IN 12V, 2*USB2.0, 1*HDMI, 1*DP, 2*Intel 1000M LAN, |
1*Audio ( Support Mic and Speaker at the same time) | |
Expansion Slot | Support 1*M.2 2280 slot (Support M.2 PCIE X4 and M.2 SATA SSD); |
Support 1*MINI PCIE slot (WIFI/3G/4G choose one from three),embedded SIM socket; | |
Network | 2*Intel i211-AT 10/100/1000M LAN |
Storage | Support 1*M.2 2280 slot, 1*2.5”HDD, support RAID 0/1 |
Power Supply | DC 12V |
Dimension | 186 * 126.5 * 66 mm |
Net Weight | Net Weight |
