I5 I7 Mini PC with Fan
◇ All aluminum structure, Fan design;
◇ Onboard Intel 8th Generation Core i5 or i7;
◇ Max. Support 1*DDR4 RAM, 16G;
◇ Support 1*M.2 2280, 1*2.5”HDD;
◇ Support DC 12V Input;
◇ Applied OS:
Send Inquiry
Product Details ofI5 I7 Mini PC with Fan
Thin Small Size Office Mini Computers Core 8th I5 i7 CPU Desktop Mini PC
Specification | |
Model | N16 |
Color | Black (Color can be customized) |
Material | High-quality all aluminum, Surface anodic oxidation |

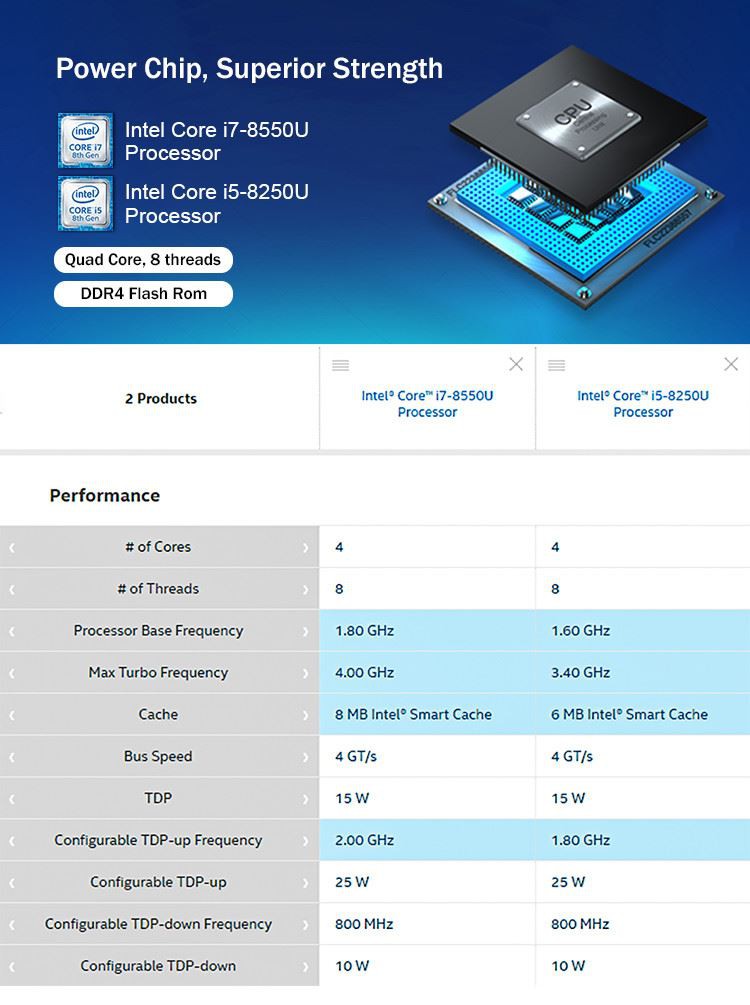

Processor | Onboard Intel Core i5 8250U (quad core, 8 threads, 1.6GHz, Max. Turbo 3.4G, 6MB Cache) |
Onboard Intel Core i7 8550U (quad core, 8 threads, 1.8GHz, Max. Turbo 4.0G, 8MB Cache) | |
RAM | Support 1*DDR4 2133/2400 SODIMM RAM slot, Max. 16 GB |
BIOS | AMI EFI BIOS |
Display Chip | Integrated Intel HD Graphics 620 |
Display Port | 1*DP, 1*HDMI |
Front I/O | 4*USB3.0, 1*Power Switch, 1*SIM Slot |
Rear I/O | 1*DC, 1*HDMI (Support 4096x2304@24Hz), 1*DP (Support 4096x2304@60Hz) |
2*USB2.0, 1*Audio (Support Mic and Speaker at the same time), 2*Intel 1000M LAN | |
Expansion Slot | Support 1*M.2 2280 Slot (Compatible with PCIE X4 and SATA signal) |
Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), SIM Slot on front plate | |
Network | 2*Intel i211-AT 10/100/1000M LAN |
Storage | Support 1*M.2 2280 Slot, 1*2.5" HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) |
Work Temp | 0℃ ～ +40℃ (Commercial HDD), -10℃ ～ +50℃ (Industrial SSD), Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |
Dimension | 133 * 128 * 46 mm |
Net Weight | 0.65 kg |
Application | Office, HD Media, Electronic Education etc. |
