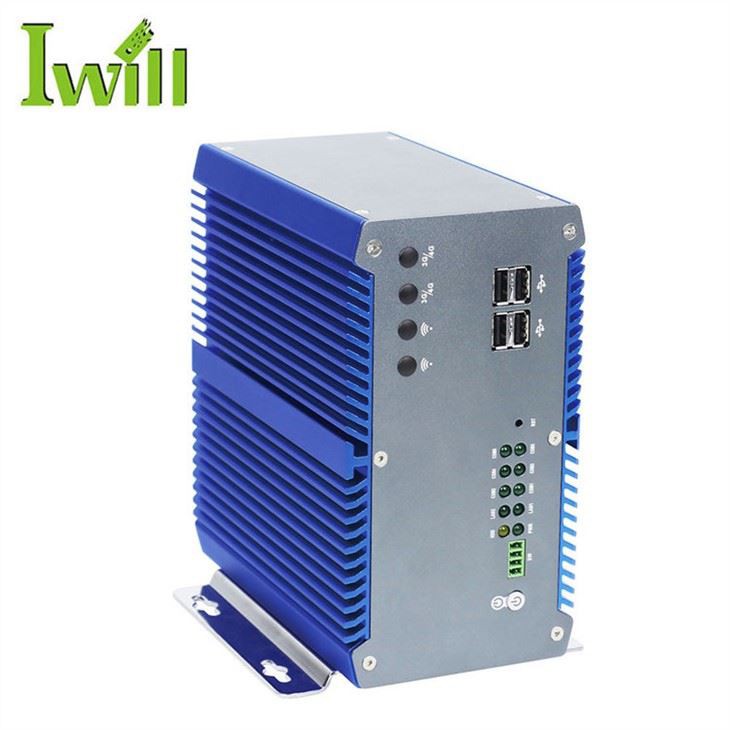

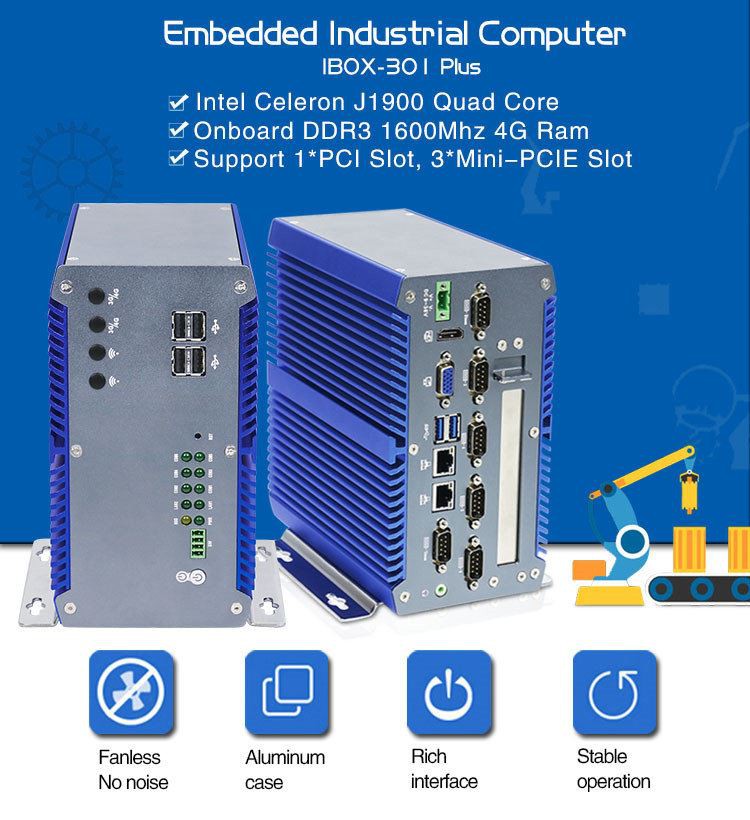

J1900 Industrial PC with PCI

Model

IBOX-301 Plus

Color

Blue + Grey (Color can be customized)

Material

High-quality all aluminum, surface anodic oxidation

Processor

Onboard Intel Celeron J1900 (Quad core quad threading, 1.99G, TDP:10W)

RAM

Onboard DDR3L 1333 4GB RAM

BIOS

AMI EFI BIOS

Display Chip

Integrated Intel HD Graphics

Display Port

1*VGA, 1*HDMI

Front I/O

4*USB2.0, 1*RESET, 10*LED, 1*4PIN Phoenix Connector, 1*Power Switch

Rear I/O

1*USB3.0, 1*USB2.0, 6*COM (2*RS232/422/485 Optional), 1*Speaker

2*Intel 1000M LAN, 1*VGA, 1*HDMI, 1*2PIN Phoenix Connector Power Input port

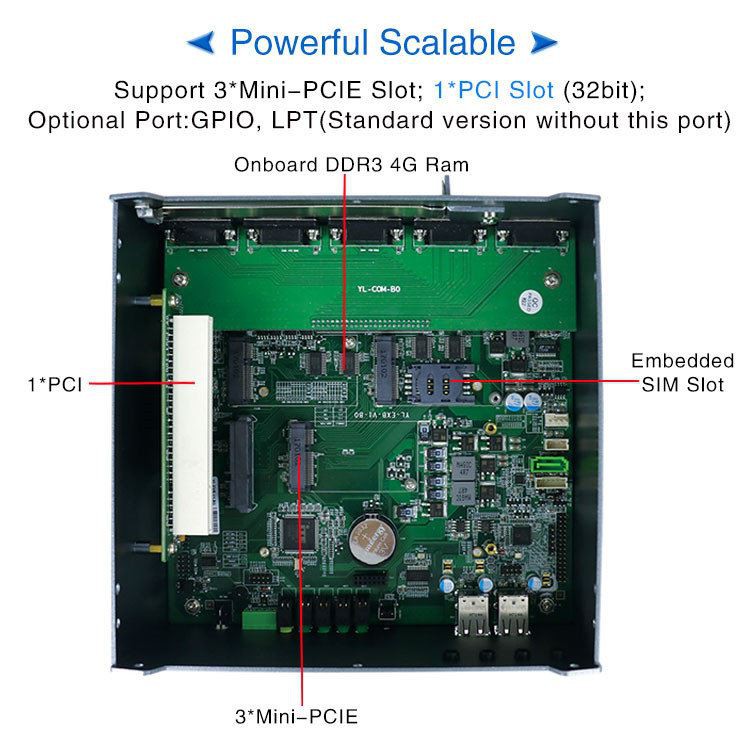

Expansion Slot

Support 1*PCI Slot (32bit), Max. Can support the length of expansion card: 168 mm

Support 1*MINI PCIE Slot (Support WIFI/Bluetooth)

Support 1*MINI PCIE Slot (Support WIFI/Bluetooth/3G/4G Optional), Embedded SIM slot

Support 1*MINI PCIE Slot (Support MSATA)

Optional Ports: GPIO, MIC, LPT, 10*COM, PS/2, 2*USB2.0 (Standard version doesn't include these ports)

Network

2*Intel 82583V/i211-AT 10/100/1000M LAN

Storage

Support 1*MSATA Slot, 1*2.5" HDD

Input Voltage

Support DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection

Other Function

Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function)

Work Temp

0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow

Work Humidity

5% ～ 95% non-condensing

Certificates

CE, CCC, FCC Class A, ROHS

Dimension

185 * 175 * 100 mm【Not include the brackets】

Net Weight

2.5 kg【Not include the brackets】

Application

Industrial automation, medical, logistics transportation, data acquisition,motion control, etc.
