Rugged Fanless Computer
◇ All aluminum structure, fanless design;
◇ Support Intel Celeron J1900 quad core processor;
◇ Onboard DDR3 4GB RAM;
◇ 1*MSATA Slot, 1*2.5" HDD;
◇ Support 3*Mini PCIE Slot;
◇ 10*COM (2*COM RS232 or 422 or 485 Optional);
◇ Support DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection;
◇ Support OS:
Send Inquiry
Product Details ofRugged Fanless Computer

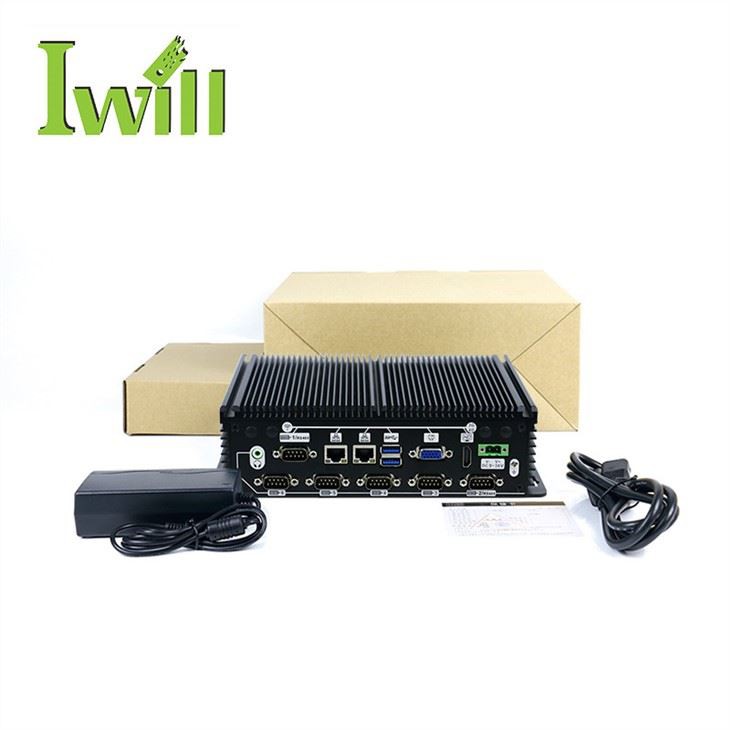

702 rugged industrial computer features J1900 quad core processor ,dual Gigabit Ethernet ports,six RS-232 serial ports ,one 2PIN Power Supply Phoenix Connector,one 4Pin Phoenix Connector.Support DC 9～36V wide voltage Input，Support positive pole and negative electrode connect reversely protection.Windows7,Windows8,Windows10,Linux.
Specification | |
Model | IBOX-702 |
Color | Black (Color can be customized) |
Material | High-quality all aluminum, surface anodic oxidation |
Processor | Onboard Intel Celeron J1900 (Quad core quad threading, 1.99G, TDP: 10W) |
RAM | Onboard DDR3L 1333 4GB RAM |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics |
Front Port | 1*VGA, 1*HDMI |
Rear I/O | 4*USB2.0, 1*RESET, 10*LED, 1*4Pin Phoenix Connector, 1*Power Switch |
Rear I/O | 1*USB3.0, 1*USB2.0, 6*COM (COM1, COM2 RS232/422/485 Optional), 1*Speaker |
2*Intel 1000M LAN, 1*VGA, 1*HDMI, 1*2PIN Power Supply Phoenix Connector | |
Expansion Slot | Support 1*MINI PCIE Slot (WIFI/Bluetooth Optional) |
Support 1*MINI PCIE Slot (WIFI/Bluetooth/3G/4G Optional), Embedded SIM Slot | |
Support 1*MINI PCIE Slot (Support MSATA) | |
Optional Ports: GPIO, MIC, LPT, 10*COM, PS/2, 2*USB2.0 (Standard version doesn't have these ports) | |
Network | 2*Intel 82583V/i211-AT 10/100/1000M LAN |
Storage | Support 1*MSATA Slot, 1*2.5" HDD |
Input Voltage | Support DC 9～36V wide voltage Input, support positive pole and negative electrode connect reversely protection |
Dimension | IBOX-702 A (1*COM): 234 * 175 * 50mm |
IBOX-702 B (6*COM): 234 * 175 * 64.5mm | |
IBOX-702 C (10*COM): 234 * 175 * 64.5mm | |
Net Weight | 2.0 kg |
702 Rugged Fanless Computer,High quality aluminum case with exquisitecooling teech, heat dissipation further upgrade.Fanless design for dustproof, shockproof and nonoise during operation, suitable for industrial application.
The 702 Rugged Fanless Computer ,Support WiFi module and 3G/4G module (three choose one)Move at any time, no need network cable to avoid wiring problems.
Rugged Fanless ComputerVGA+HDMI Full HD 1080P Dual DisplayHigher image quality and display capabilities.
[ At a glance, know who's no work ]
702 Rugged Fanless Computer With external 10 LED lights on the front panel, justglance, you can know rear l/ O interface running status!
