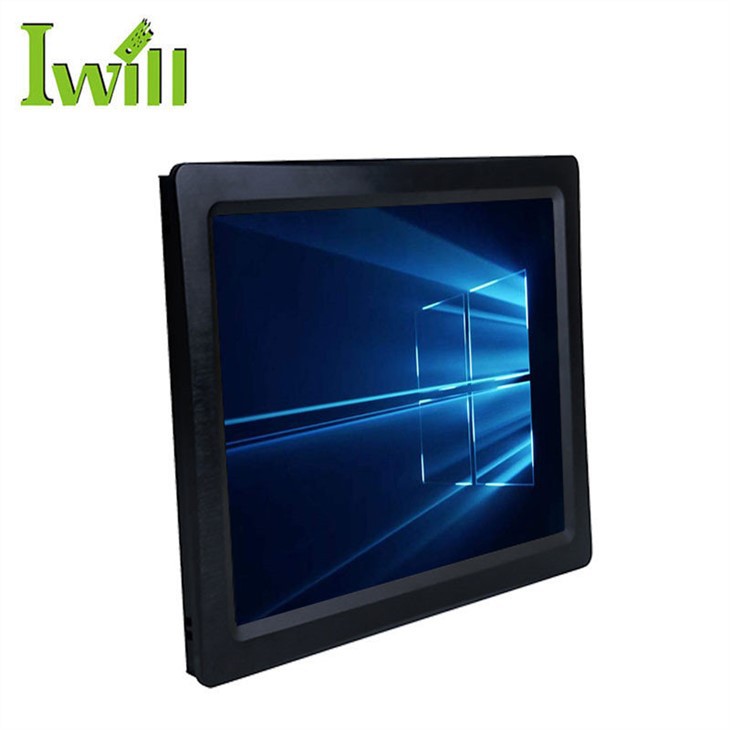

15 Inch J1900 I5 Fanless Panel PC
◇ All aluminum alloy structure, fanless design;
◇ Intel Celeron J1900, 4th Generation Core, 6th Generation Core Optional;
◇ Using high-definition industrial LCD screen, Capacitive type multi touch screen;
◇ Support 1*MSATA, 1*2.5" HDD;
◇ 2*LAN, 6*COM, Wide Voltage DC 9～36V Input Optional;
◇ Compatible with Desktop, Wall Mount, Embedded, VESA stanrard;
◇ Support OS:
Send Inquiry
Product Details of15 Inch J1900 I5 Fanless Panel PC
15 Inch J1900 Industrial Fan Touch Panel PC For automation
Specification | |
Model | ITPC-A150 CT |
Color | Black (Any color can be customized) |
Material | Aluminum pc case |
Processor | Onboard Intel Celeron J1900 (Quad core quad threading, 1.99Ghz, 2MB Cache) |
Onboard Intel Core i5 4210U (Dual Core quad threading, 1.7Ghz, Max. Turbo boost to 2.7Ghz, 3MB Cache) | |
Onboard Intel Core i5 6360U (Dual Core quad threading, 2.0Ghz, Max. Turbo boost to 3.1Ghz, 4MB Cache) | |
Chipset | Intel CPU Integrated Chip |
Memory | J1900 version and i5-4210U version: Support 1*DDR3L 1333/1600 RAM Slot, Max support 8GB |
i5-6360U: Support 2*DDR3L 1333/1600 RAM slot, Max support 16GB | |
BIOS | 64Mb Flash ROM |
Display Chip | J1900: Integrated Intel HD Graphics |
i5-4210U: Integrated Intel HD Graphics 4400 | |
i5-6360U: Integrated Intel® Iris® Graphics 540 | |
Display Port | 1*VGA, 1*HDMI, 1*LVDS; (Support synchronous and asynchronous dual display) |
Storage | Support 1*MSATA, 1*2.5" HDD |
Expansion | Support 1*Mini PCIE Slot, (WIFI/Bluetooth/3G/4G Optional, Embedded 1*SIM Slot) |
I/O | 1*VGA, 1*HDMI, 2*RS232 COM【6*COM Optional (COM3 RS232/RS422/RS485 Optional)】 |
1*1000M LAN【2*LAN Optional】, 1*DC, 1*3Pin Power Connector, 1*Mic, 1*Line Out | |
2*USB3.0, 2*USB2.0【J1900 version is with 1*USB3.0, 3*USB2.0】 | |
LCD | Size: 15 inch TFT-LCD |
Ratio: 4:3; Resolution: 1024 * 768 | |
Brightness: 300 cd/m2; Viewing Angle: Full Angle | |
Touch Screen | Capacitive type multi touch screen, Life Time: more than 50000 Thousand Times |
Speaker | 2*8-ohm 2-watt speaker |
Power Supply | DC 12V (DC 9 ～ 36V Input Optional) |
Work Temp | 0℃ ～ +50℃ (HDD), -20℃ ～ +60℃ (SSD), surface air flow |
Work Humidity | 5% ～ 95% Non-Condensing |
Dimension | 373 * 298 * 59 mm |
Embedded Installation | 363 * 288 mm |
Weight | 5.0 kg |
Application | Industrial automation, medical, logistics transportation, warehousing, electronic education and other fields |
