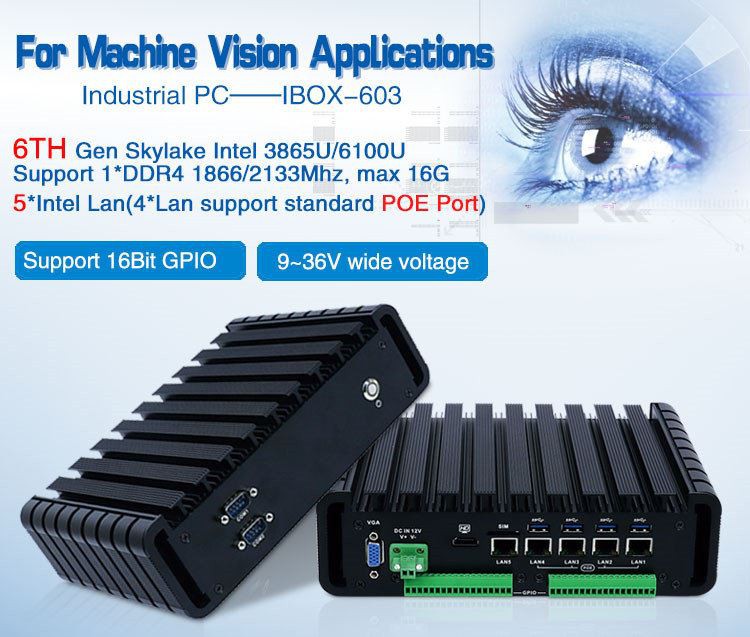

I3 I5 I7 Industrial PC with POE
◇ All aluminum structure, fanless design;
◇ Onboard Intel Skylake-U 6th Generation Core i3 or i5 or i7;
◇ Max. Support DDR4 1866 or 2133 16GB RAM;
◇ Support 32 road Opto-couplers isolation GPIO Signal;
◇ Support 5*LAN (Support 4*802.3af standard POE LAN);
◇ Support DC 9～36V wide voltage Input;
◇ Support OS:
Send Inquiry
Product Details ofI3 I5 I7 Industrial PC with POE
Industrial Grade Fanless Mini PC Poe I3 I5 with 5 Lan Port
Specification | |
Model | IBOX-603 |
Color | Black (Color can be customized) |
Material | High-quality all aluminum, surface anodic oxidation |
Processor | Onboard Intel Celeron 3855U (Dual core dual threading, 1.6 GHz) |
Onboard Intel Core i3 6100U (Dual core quad threading, 2.3 GHz) | |
Onboard Intel Core i5 6200U (Dual core quad threading, 2.3GHz, Max turbo 2.8GHz) | |
Onboard Intel Core i7 6500U (Dual core quad threading, 2.5GHz, Max turbo 3.1GHz) | |
CPU Architecture | Skylake-U |
RAM | Support 1*DDR4 1866/2133 SODIMM RAM Slot, Max. Support 16GB |
BIOS | AMI EFI BIOS |
Display Chip | Integrated Intel HD Graphics 510 / 520 |

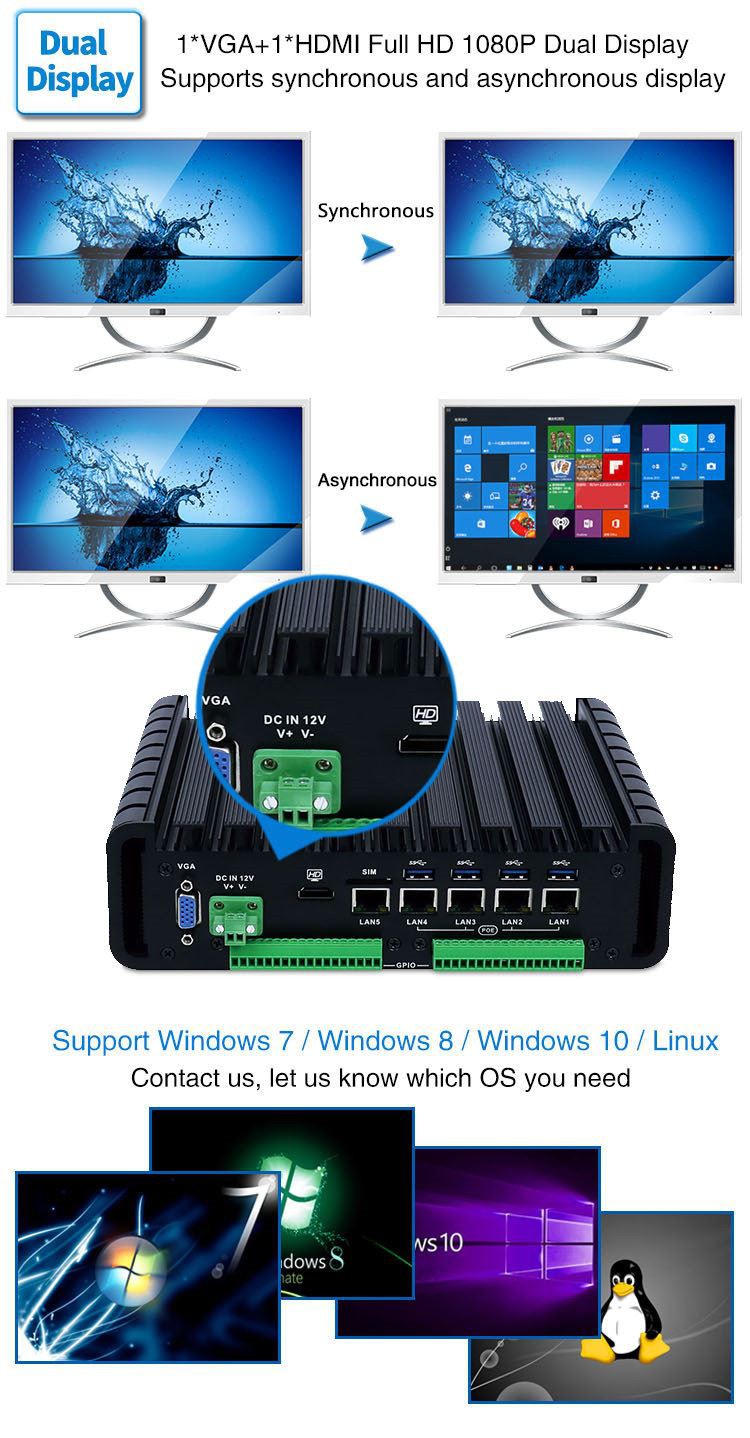

Display Port | 1*VGA, 1*HDMI |
Front I/O | 2*COM, 1*Power Switch |
Rear I/O | 4*USB3.0, 1*VGA, 1*HDMI, 1*3 PIN Power Supply Phoenix Connector (Support 9～36V wide voltage Input) |
5*Intel 1000M LAN, 2*18 PIN Phoenix Connector GPIO (Support Opto-couplers isolation) | |
Expansion Slot | Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot |
Support 1*MINI PCIE Slot (Support MSATA) | |
Network | 5*Intel i211-AT 1000M LAN (Support 4*802.3af standard POE LAN) |
Storage | 1*MSATA Slot, 1*2.5" HDD |
Power Supply | Support DC 9～36V wide voltage Input |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function) |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |
Dimension | 230*166*68mm【Not include bracket】 |
Net Weight | 2.3 kg【Not include bracket】 |

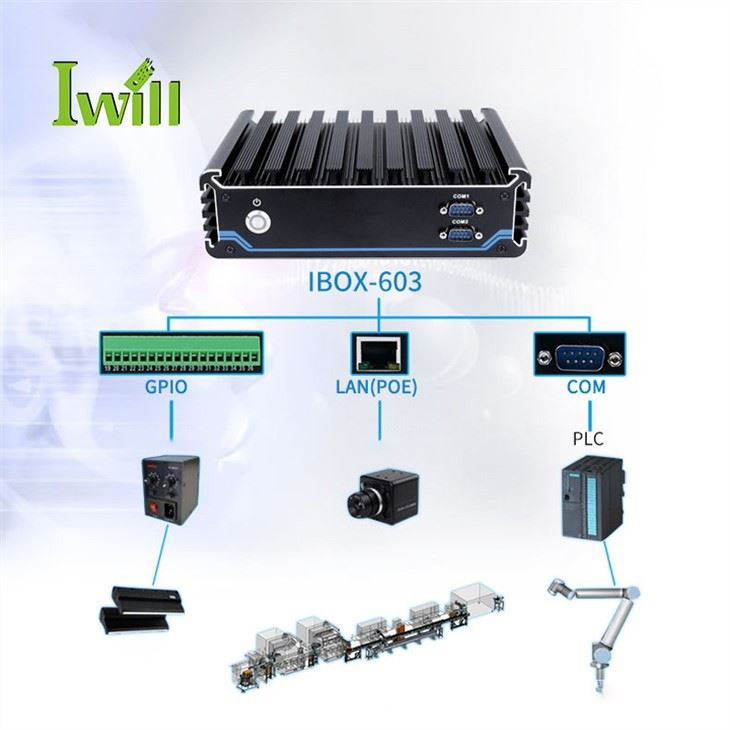

Application | Industrial automation, Machine vision, Transportation industry, Power monitoring, etc. |
