I3 I5 I7 Fanless Industrial PC
◇ All aluminum structure, fanless design;
◇ Onboard Intel Skylake-U 6th Generation Core i3 or i5 or i7;
◇ Max. Support DDR4 1866 or 2133, Support 16GB RAM;
◇ Support 2*Intel LAN;
◇ Support 6*COM, 6*USB;
◇ Support OS:
Send Inquiry
Product Details ofI3 I5 I7 Fanless Industrial PC
Fanless Mini Computer I3 6100U Processor with 6COM Industrial PC
|
Specification |
|
|
Model |
IBOX-601 |
|
Color |
Titanium gray (Color can be customized) |
|
Material |
High-quality all aluminum, surface anodic oxidation |
|
Processor |
Onboard Intel Celeron 3855U (Dual core dual threading, 1.6GHz, 2M third level cache) |
|
Onboard Intel Core i3 6100U (Dual core quad threading, 2.3G, TDP: 15W) |
|
|
Onboard Intel Core i5 6200U (Dual core quad threading, 2.3GHz, Max turbo 2.8GHz) |
|
|
Onboard Intel Core i7 6500U (Dual core quad threading, 2.5GHz, Max turbo 3.1GHz) |
|
|
CPU Architecture |
Skylake-U |
|
RAM |
Support 1*DDR4 1866/2133 SODIMM RAM Slot, Max. Support 16GB |
|
BIOS |
AMI EFI BIOS |
|
Display Chip |
Integrated Intel HD Graphics 510/520 |
|
Display Port |
1*VGA, 1*HDMI |
|

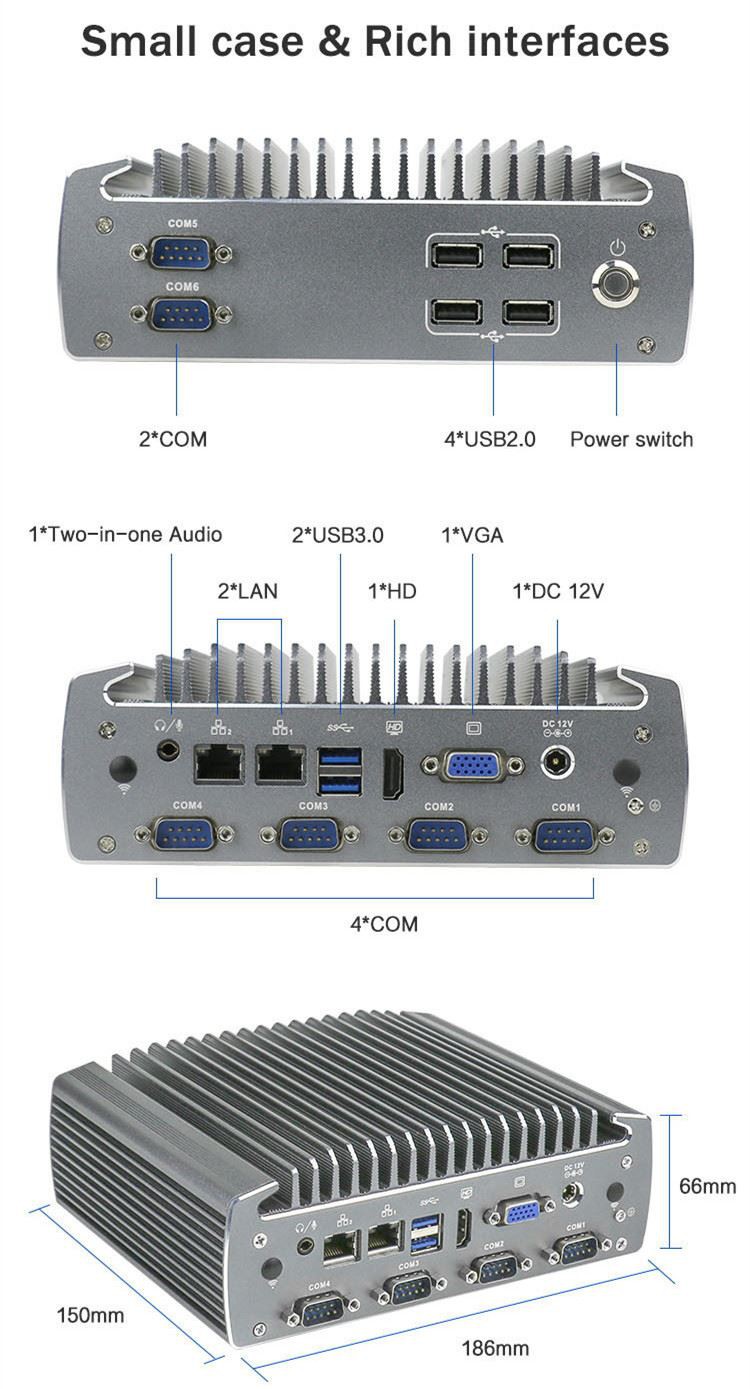

Front I/O |
2*COM, 4*USB2.0, 1*Power Switch |
|
Rear I/O |
2*USB3.0, 2*Intel 1000M LAN, 1*VGA, 1*HDMI, 4*COM, |
|
1*Audio (Support Mic and Speaker at the same time), 1*DC Input |
|
|
Expansion Slot |
Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot |
|
Support 1*MINI PCIE Slot (Support MSATA) |
|
|
Network |
2*Intel i211-AT 1000M LAN |
|
Storage |
1*MSATA Slot, 1*2.5" HDD |
|
Input Voltage |
Support DC 12V Input |
|
Other Function |
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function) |
|
Work Temp |
0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +50℃ (Industrial SSD), Surface air flow |
|
Work Humidity |
5% ～ 95% non-condensing |
|
Certificates |
CE, CCC, FCC Class A, ROHS |
|
Dimension |
186 * 150 * 66mm【Not include bracket】 |
|
Net Weight |
1.6 kg【Not include bracket】 |
|
Application |
Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
Application Scenarios
– Factory automation & SPC lines: connecting sensors, PLCs via COM and LAN
– Digital signage & kiosks: dual‑display 4K output silently
– Network appliances: Core i7 with iAMT & multi‑LAN for edge/firewall use
– Transport & vehicles: wide-power range, rugged design, anti-vibration
Why Choose This Model?
- Reliable 24/7, fanless operation with full environmental and EMC compliance
- Scalable performance – choose from Core i3/i5/i7 across generations
- Extremely versatile I/O – supports legacy (COM), modern (USB 3.0/GbE), and expansion needs
- Rugged, silent, and energy-efficient – designed for industrial longevity and low cost of ownership
