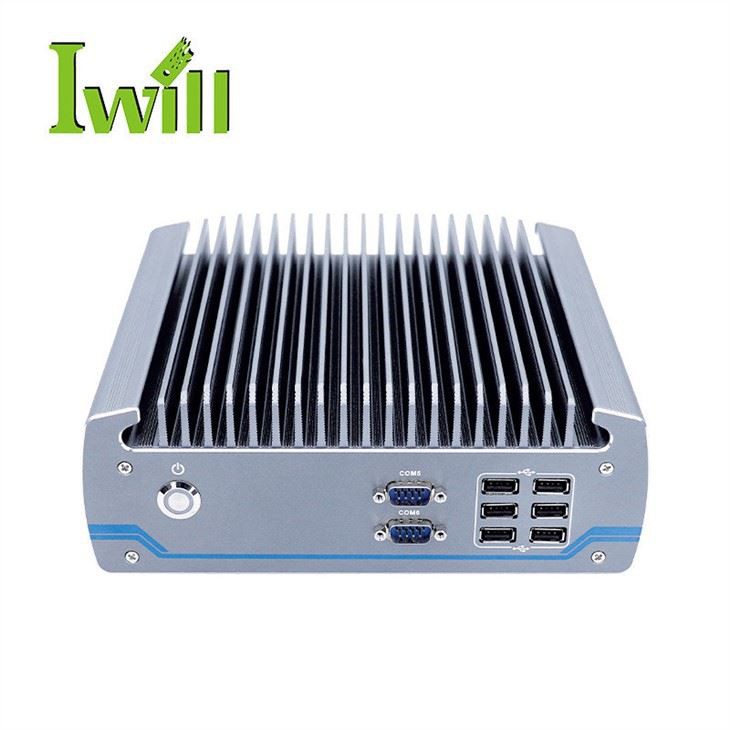

I3 I5 I7 Industrial PC with 2 HDMI
◇ All aluminum structure, Fanless design;
◇ Onboard Intel H310 chipset;
◇ Max. Support 2*DDR4, 32G;
◇ Support 1*M.2, 2*2.5" HDD Optional;
◇Support 6*COM (1*COM RS232 or 422 or 485 Optional);
◇ Support 2*HDMI;
◇ Support DC12～19V Input (DC 9～36V wide voltage Optional);
◇ Applied OS:
Send Inquiry
Product Details ofI3 I5 I7 Industrial PC with 2 HDMI
New Industrial PC Core I7 8700T Dual Lan Mini Computer
Specification | |
Model | IBOX-605 |
Color | Titanium gray (other color can be customized) |
Material | High-quality all aluminum, Surface anodic oxidation |
Processor | Intel Core i3 8100T (quad core, 4 threads, 3.1 GHz) |
Intel Core i5 8500T (6 core, 6 threads, 2.1 GHz, Maximum Turbo 3.5 GHz) | |
Intel Core i7 8700T (6 core, 12 threads, 2.4 GHz, Maximum Turbo 4.0 GHz) | |
Chip | Intel H310 |
Memory | Support 2*DDR4 2133/2400 SODIMM slot, Max:32GB |
BIOS | AMI EFI BIOS |
Display Chip | Integrated Intel HD Graphics 630 |
Display Port | 1*VGA, 2*HDMI (Support synchronous and asynchronous dual display) |

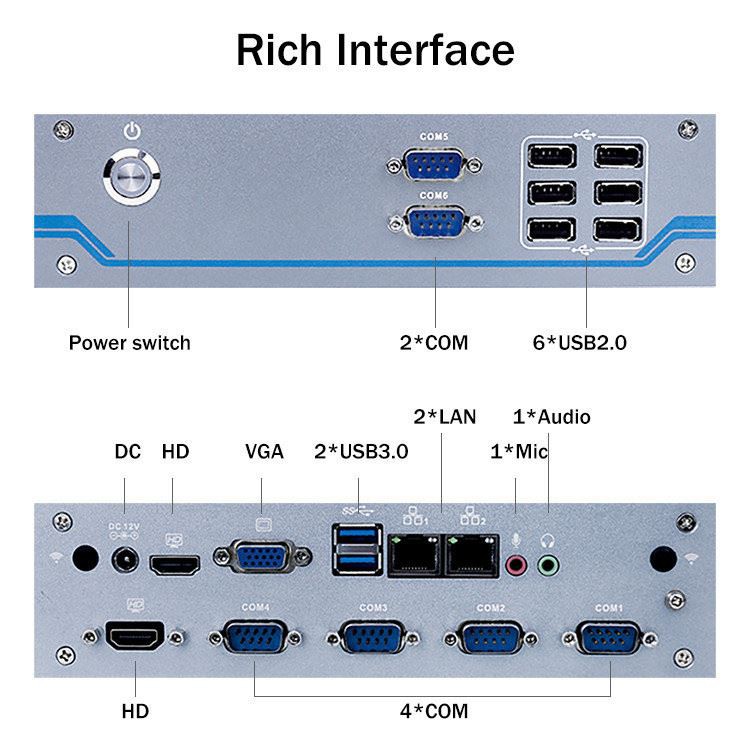

Front I/O | 6*USB2.0, 2*COM, 1*Power Switch |
Rear I/O | 2*USB3.0, 2* 1000M LAN, 1*VGA, 2*HDMI, 1 * Mic, 1 * Line Out |
4*COM (COM2*RS232/RS422/485 Optional), 1*DC | |
Expansion Slot | Support 1*M.2 2280 slot (Compatible: PCIE and SATA signal) |
Support 1*MINI PCIE slot (Support WIFI/Bluetooth) | |
Expansion Port: GPIO (4 Input*4 Output) | |
Network | 2*RTL8111H 1000M LAN |
Storage | Support 1*M.2 2280 slot, 1*2.5" HDD (2*2.5" HDD Optional) |
Power Supply | Support DC 12 ～ 19V Input (DC 9 ～ 36V wide voltage Optional) |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow |
Work Humidity | 5% ～ 95% Non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |

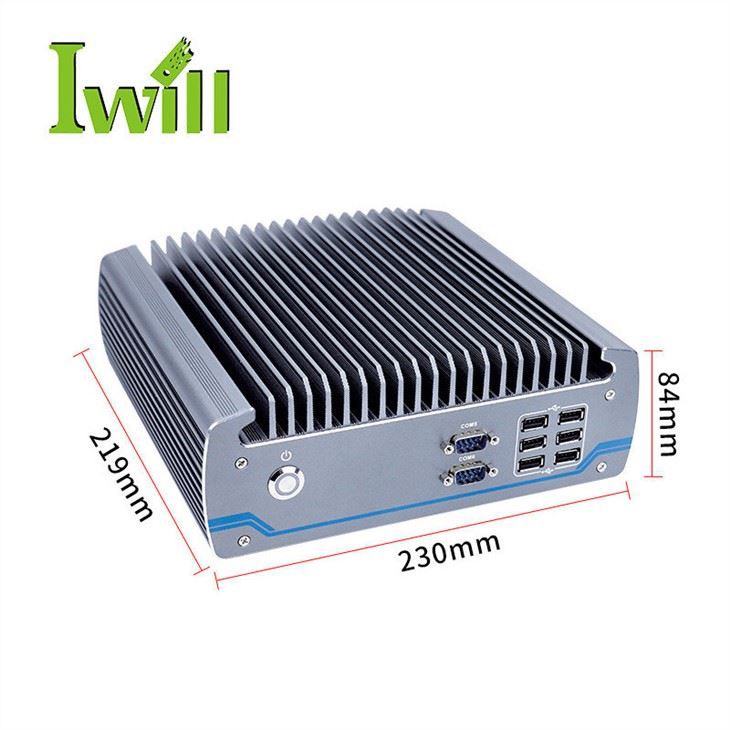

Dimension | 230 * 219 * 84 mm【not include wall bracket】 |
Weight | 4.0 kg【not include wall bracket】 |
Application | Industrial Automation, Medical, Data Acquisition, Motion Control, Vehicle Application and etc. |
