I5 Industrial PC with GPIO

Model

IBOX-706 Plus

Color

Titanium gray (Color can be customized)

Material

High-quality all aluminum, surface anodic oxidation

Processor

Intel Celeron 3865U (Dual core dual threads, 1.8 GHz)

Intel Core i5 7200U (Dual core quad threads, 2.5GHz, Max turbo 3.1GHz), i5-6200U Optional

CPU Architecture

Skylake-U / KabyLake-U

RAM

Support 1*DDR4 1866/2133 SODIMM RAM Slot, Max. Support 16GB

BIOS

AMI EFI BIOS

Display Chip

Integrated Intel HD Graphics 510/520

Display Port

1*VGA, 1*HDMI

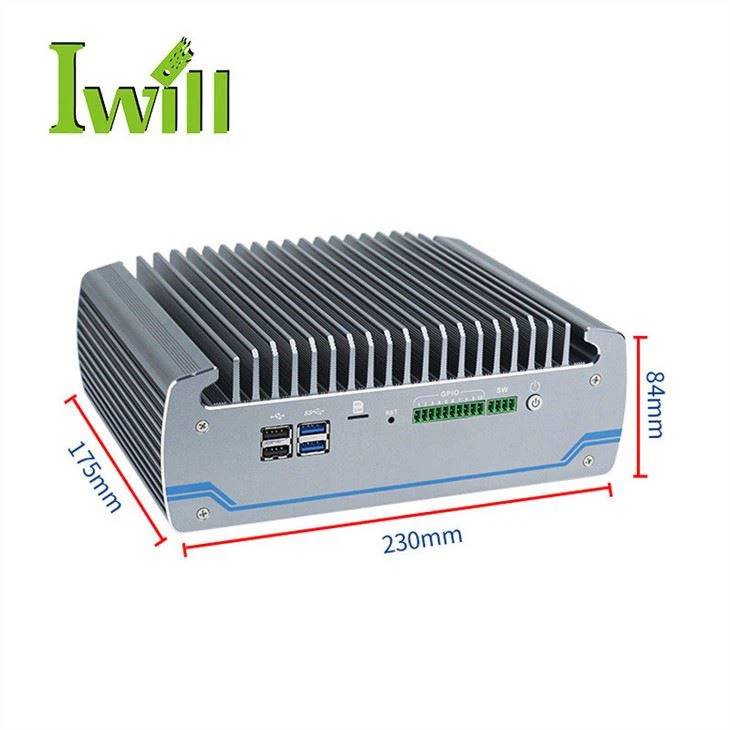

Front I/O

2*USB3.0, 2*USB2.0, 1*10PIN GPIO Phoenix Connector (3.3V or 5V Optional)

1*RST Button, 1*Built-in SIM Slot, 1*Power Switch, 1*4PIN switch signal Phoenix Connector

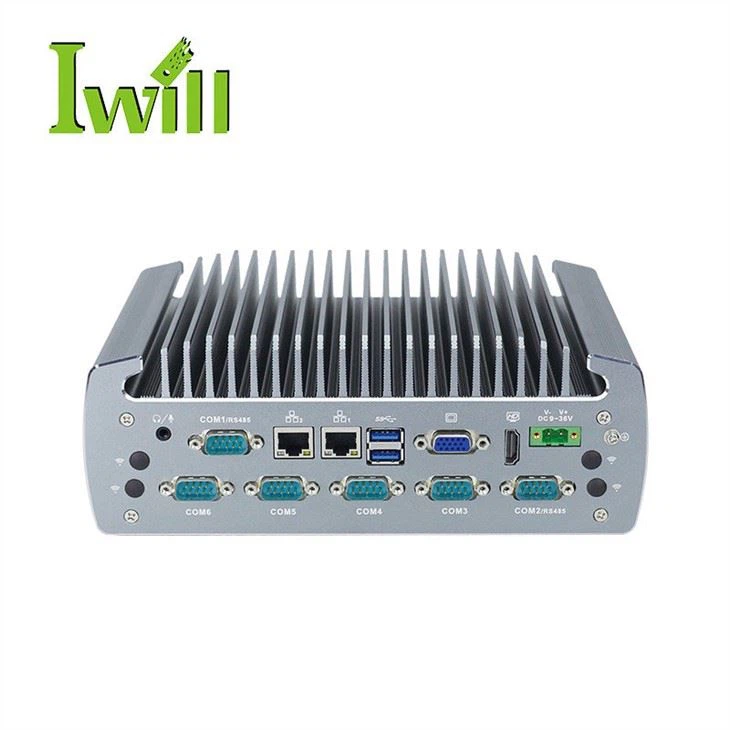

Rear I/O

2*USB3.0, 2*Intel 1000M LAN, 1*VGA, 1*HDMI

1*Audio (Support Mic and Speaker at the same time), 6*COM (COM1, COM2 RS232/RS422/485 Optional), 1*2PIN Power supply Phoenix Connector

Expansion Slot

Support 1*M.2 2280 Slot (Support NVME Protocol and SATA Bus)

Support 1*M.2 Slot (Support 3G/4G, External SIM Slot)

Support 1*MINI PCIE Slot (WIFI/Bluetooth/3G/4G, Embedded SIM Slot)

Optional Ports: 10*COM, LPT, 2*USB2.0 (Standard version doesn't include these ports)

Network

2*Intel i211-AT 1000M LAN

Storage

1*M.2 2280 Slot, Onboard 1*2.5" HDD (2*2.5" HDD Optional, Support RAID0/1)

Input Voltage

Support DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection

Other Function

Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function)

Work Temp

0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow

Work Humidity

5% ～ 95% non-condensing

Certificates

CE, CCC, FCC Class A, ROHS

Dimension

230 * 175 * 84mm【 Not include the brackets】

Net Weight

2.8 kg【Not include the brackets】

Application

Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.
