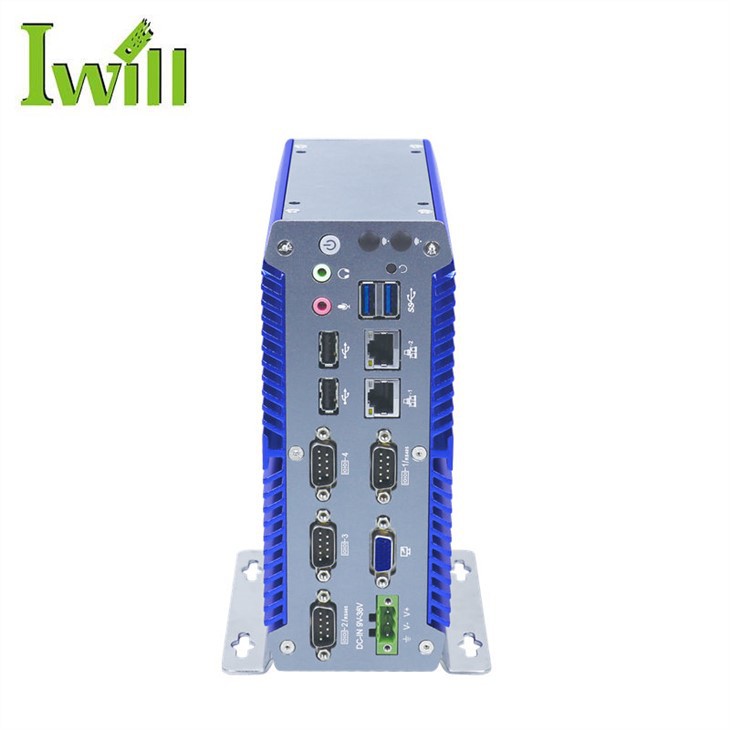

I5 I7 Industrial PC with 4 COM
◇ All aluminum structure, fanless design;
◇ Onboard Intel Celeron 3865U, 7th Generation Core i5 or i7;
◇ Max. Support DDR4 1866/2133 16GB RAM;
◇ Support 1*MSATA Slot, 1*2.5" HDD;
◇ Support WIFI or 3G or 4G module (Choose one from three);
◇ Support 4*COM (2*RS232 or 422 or 485 Optional);
◇ Support DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection;
◇ Support OS:
Send Inquiry
Product Details ofI5 I7 Industrial PC with 4 COM
9～36V Embedded PC Core I5 Single Board Industrial Computer
Specification | |
Model | IBOX-700 Plus |
Color | Blue + Grey (Color can be customized) |
Material | High-quality all aluminum, surface anodic oxidation |
Processor | Onboard Intel Celeron 3865U (Dual core dual threading, 2MB third level cache, 1.8 GHz) |
Onboard Intel Core i5 7200U (Dual core quad threading, 3MB third level cache, 2.5GHz, Max turbo 3.1GHz) | |
Onboard Intel Core i7 7500U (Dual core quad threading, 4MB third level cache, 2.7GHz, Max turbo 3.5GHz) | |
CPU Architecture | KabyLake-U |
RAM | Support 1*DDR4 1866/2133 SODIMM RAM Slot, Max. Support 16GB |
BIOS | AMI EFI BIOS |
Display Chip | Integrated Intel HD Graphics 610 / 620 |
Display Port | 1*VGA, 1*HDMI Built-in Pin (Support synchronous and asynchronous dual display) |
Rear I/O | 2*USB3.0, 2*USB2.0, 1*Power Switch, 2*Intel 1000M LAN, 1*VGA |
1*3Pin Power Supply Phoenix Connector, 1*Clean away COMS button, 1*MIC, 1*Speaker | |
Standard 4*COM (6*COM Optional, COM1, COM2 RS232/422/485 Optional) | |
Expansion Slot | Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot |
Support 1*MINI PCIE Slot (Support MSATA) | |
Built-in 2*USB2.0 | |
Optional Ports：GPIO, HDMI, 2*COM (Standard version doesn’t include these ports) | |
Network | 2*Intel i211-AT 10/100/1000M LAN |
Storage | Support 1*MSATA Slot, 1*2.5" HDD |
Input Voltage | DC 9～36V wide voltage Input, support positive pole and negative electrode connect reversely protection |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function) |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |
Dimension | 185 * 160 * 74 mm【Not include the brackets】 |
Net Weight | 2.2kg【Not include the brackets】 |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
