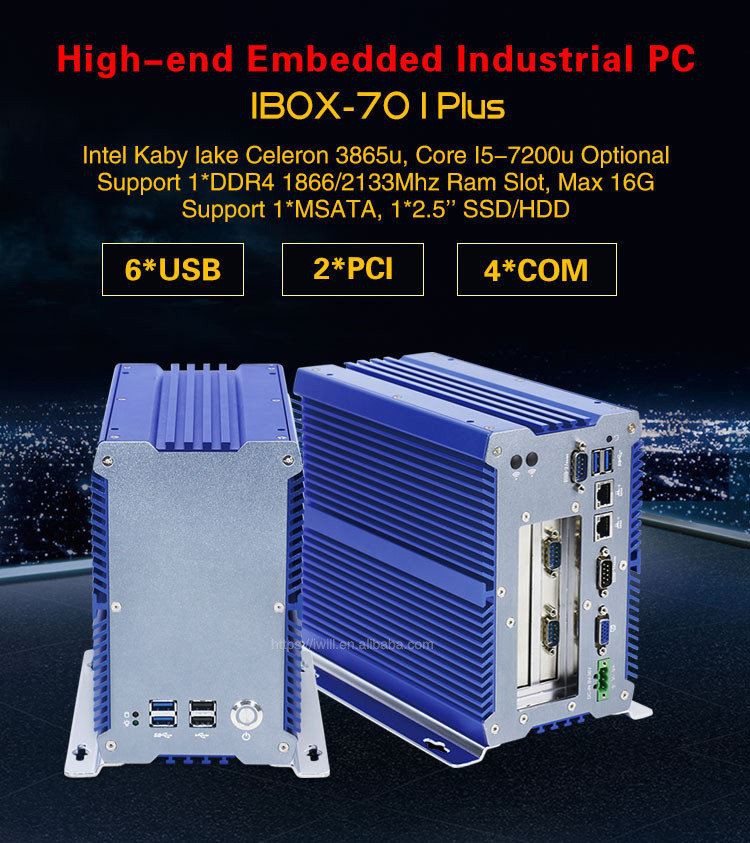

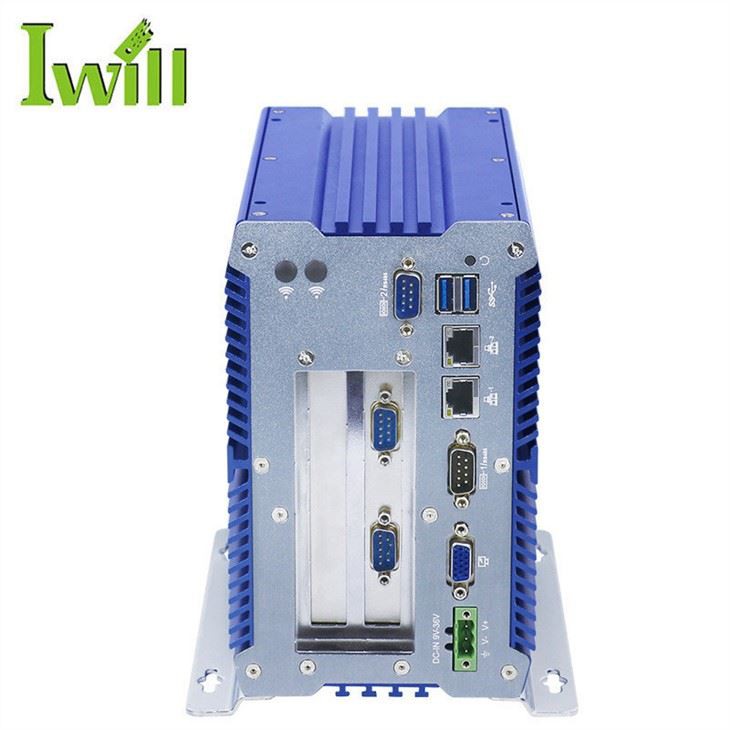

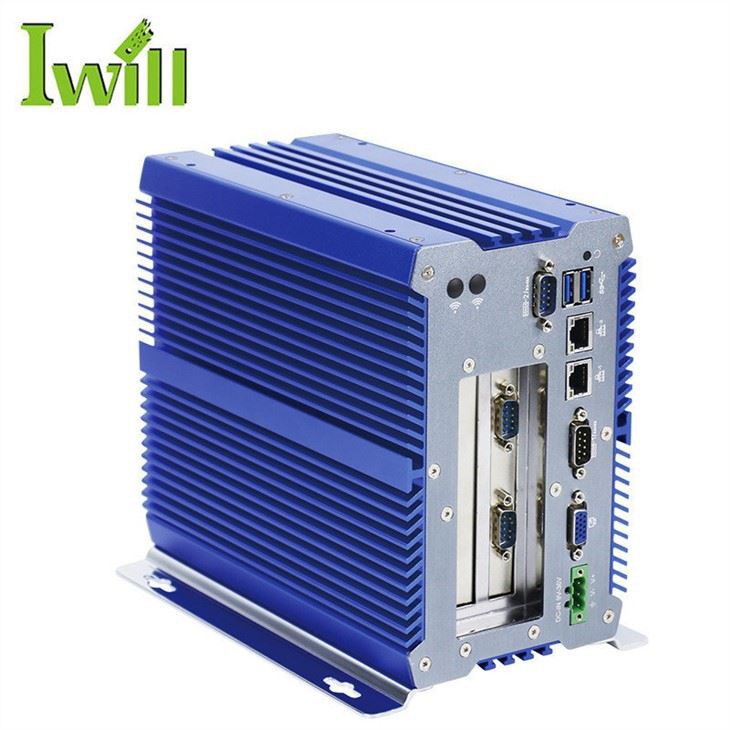

I5 I7 Industrial PC with 2 PCI
◇ All aluminum structure, fanless design;
◇ Adopt Intel Celeron 3865U, Core i5 7200U;
◇ Max. Support DDR4 ram slot, 16G;
◇ Support 1*MSATA, 1*2.5" HDD;
◇ Support WIFI or 3G or 4G (three choose one);
◇ Support 6*COM (2*COM support RS422 or 485 optional);
◇ Support DC9～36V wide voltage, power positive and negative reverse protection;
◇ Support OS:
Send Inquiry
Product Details ofI5 I7 Industrial PC with 2 PCI
Industrial Box Computer Mini PC with PCI Slot
Specification | |
Model | IBOX-701 Plus |
Color | Blue (color can be customized) |
Material | High-quality all aluminum |
Processor | Intel Celeron 3865U dual core 1.8GHz, 2MB third cache |
Intel Core i5 7200U dual core 2.5G, max turbo boost 3.1G, power 15W) | |
CPU Architecture | KabyLake-U |
Ram | Support 1*DDR4 1866/2133MHz, max 16GB |
BIOS | SPI AMI EFI BIOS |
Display Chip | Integrated Intel HD Graphics Card 620 |
Display Port | 1*VGA, (can lead to an HDMI port) |
Front I/O | 2*USB3.0, 2*USB2.0, 2*LED light, 1*Power Switch |
Rear I/O | 2*USB3.0, 2*COM (2*COM support RS422/RS485 optional), 2*Intel Lan, 1*VGA, 1* Phoenix Terminal, 1*RST, 1*PCIE 4X + 1*PCI (2*PCI/2*PCIE optional) |
Expansion Slot | Support 1*MINI PCIE channel (WIFI/3G/4G optional), embedded SIM slot |
Support 1*MINI PCIE (support MSATA) | |
GPIO is optional(Default without GPIO) | |
Network | 2*Intel i211-AT 10/100/1000M Lan |
Storage | 1*2.5" HDD, 1*MSATA |
Power Supply | DC 9～36V |
Work Temp | -10℃ ～ +50℃ |
Work Humidity | 0% ～ 95% non-condensing |
Dimension | 215 * 185 * 115 mm |
Net Weight | 3.6kg |
Certificates | CE, CCC, FCC Class A, ROHS |
Application | Automation, Medical, Transportation, Warehouse, Education etc |
