I3 I5 I7 1U Server 6 LAN
◇ 1U 19" Structure Network Security Platform;
◇ Support 4th Generation Core i3 or i5 or i7 LGA1150;
◇ Max: DDR3 1333 or 1600 16G;
◇ Support 1*MSATA, 1*2.5" HDD;
◇ Support 1*Mini PCIE, WIFI or Bluetooth;
◇ Support 6*Intel 1000M LAN, 2*Intel X520 Gbe fiber port Optional;
◇ Support OS:
Send Inquiry
Product Details ofI3 I5 I7 1U Server 6 LAN
1U Rack Mount Server Core I3/I5/I7 Industrial PC
Specification | |
Model | NS-1U8L (B85) |
Color | Black |
Shell Material | Good quality of cold-rolled sheet |
Processor | Intel Core i3 4160 (dual core, 4 threads, 3.6 GHz) |
Intel Core i5 4460 (quad core, 4 threads, 3.2 GHz, turbo boost 3.4 GHz) | |
Intel Core i7 4770 (quad core, 8 threads, 3.4 GHz, turbo boost 3.9 GHz) | |
Chipset | Intel B85 |
Memory | Support 2*DDR3 1333/1600 MHz, SODIMM, Max:16 GB |
Display Port | 1*VGA |

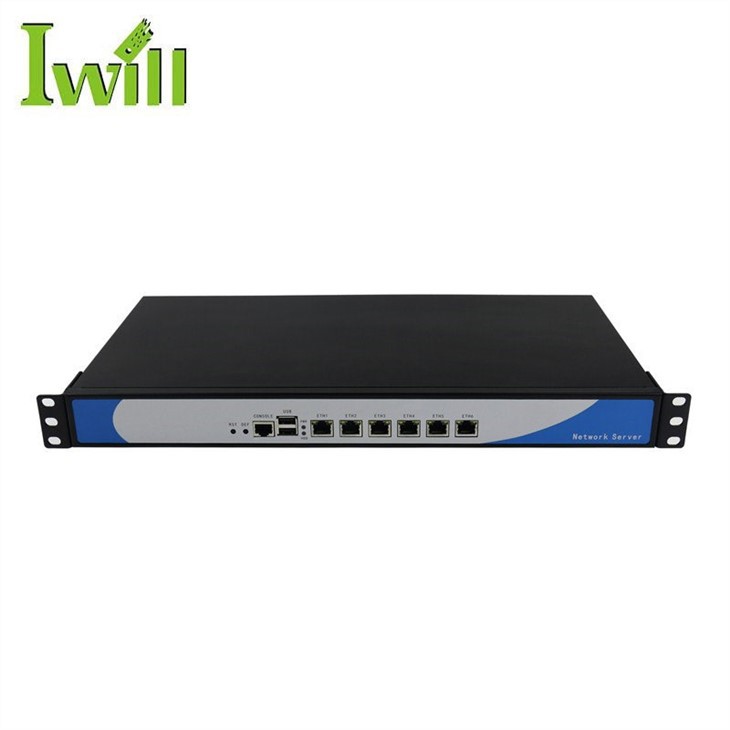

Front I/O Port | 1*RJ45 COM (support Console), 2*USB2.0, 6*Intel 1000M LAN, 2*Intel X520 Gbe fiber port Optional |

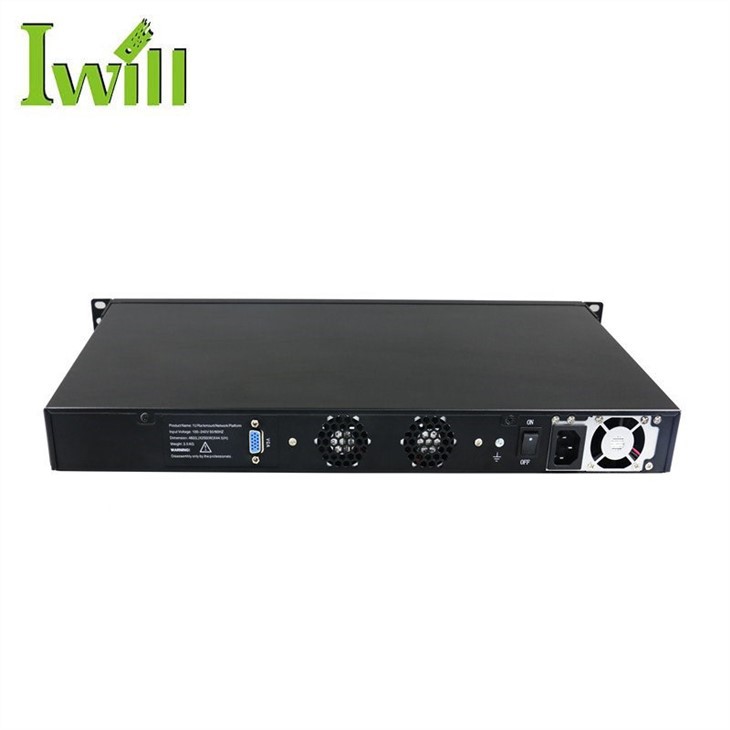

Back I/O Port | 1*VGA, 1*Power Switch, 1*AC power port |
Expansion Slot | 1*MINI PCIE (Support MSATA) |
1*MINI PCIE (WIFI/Bluetooth optional) | |
LAN | 6*Intel 82583V LAN |
Storage | 1*MSATA |
1*2.5" SATA HDD (2*2.5" SATA HDD optional) | |
Power Supply | 110～240V/50～60Hz AC Input |
Work Temp | -10℃ ～ +50℃ |
Work Humidity | 5% ～ 95% non-condensing |
Dimension | 440 * 250 * 44.5mm |
Weight | 3.4kg |
Application | Firewall, VPN, Network Server, Network Security, Router and etc. |
