1U Firewall Server 6 LAN
◇ 1U 19" Structure Network Security Platform;
◇ Support 3th Generation Core i3 or i5 or i7 LGA1155;
◇ Max: DDR3 1333 or 1600 16G;
◇ Support 1*MSATA, 1*CF slot, 1*2.5" HDD;
◇ Support 1*Mini PCIE, WIFI or Bluetooth;
◇ Support 6*Intel 1000M LAN; (2*Intel i350 Gbe fiber port Optional);
◇ Support OS:
Send Inquiry
Product Details of1U Firewall Server 6 LAN
- 1U 19" Structure Network Security Platform;
- Support 3th Generation Core i3 i5 i7 LGA1155;
- Max:DDR3 1333/1600 16G;
- Support 1*MSATA,1*CF slot,1*2.5" HDD;
- Support 1*Mini PCIE,WIFI/BT;
- Support 6*Intel 1000M LAN(2*Optical Fiber Ports optional);
|
Specification |
|
|
Model |
NS-1U8L (B75) |
|
Color |
Black |
|
Shell Material |
Good quality of cold-rolled sheet |
|
Processor |
Intel Core i3 3220 (dual core, 4 threads, 3.3 GHz) |
|
Intel Core i5 3450 (quad core, 4 threads, 3.1 GHz, turbo boost 3.5 GHz) |
|
|
Intel Core i7 3770 (quad core, 8 threads, 3.4 GHz, turbo boost 3.9 GHz) |
|
|
Chipset |
Intel B75 |
|
Memory |
Support 2*DDR3 1333/1600 MHz, Max: 16 GB |
|
Display Port |
1*VGA |
|
Front I/O Port |
1*RJ45 COM (support Console), 2*USB2.0, 6*Intel 1000M LAN |
|

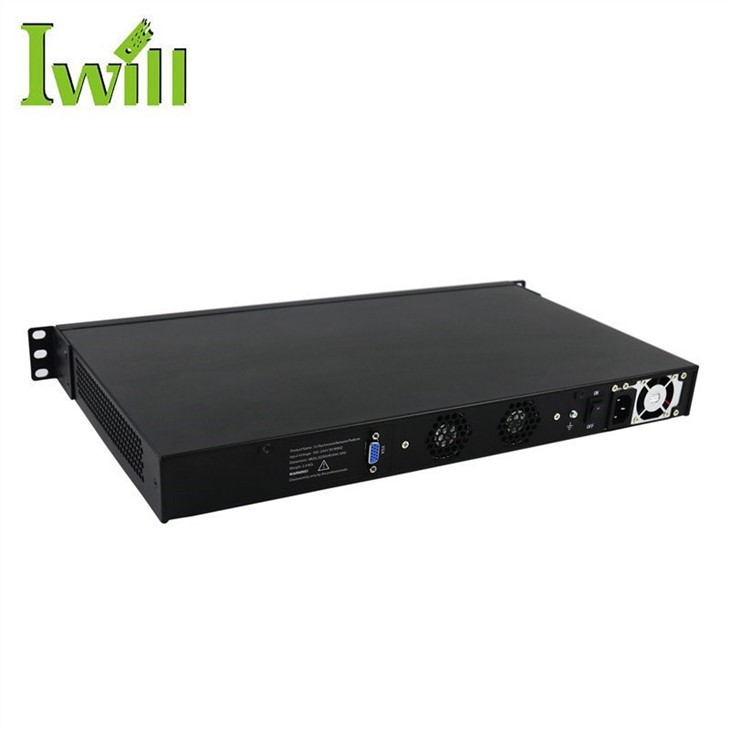

Back I/O Port |
1*VGA, 1*Power Switch, 1*AC power port |
|
Expansion Slot |
1*MINI PCIE (Support MSATA) |
|
1*MINI PCIE (WIFI/Bluetooth optional) |
|
|
LAN |
6*Intel 82583V LAN (2*Intel i350 Gbe fiber port Optional) |
|
Storage |
1*MSATA |
|
1*CF Slot |
|
|
1*2.5" SATA HDD (2*2.5" SATA HDD optional) |
|
|
Power Supply |
110～240V/50～60Hz AC Input |
|
Work Temp |
-10℃ ～ +50℃ |
|
Work Humidity |
5% ～ 95% non-condensing |
|
Dimension |
440 * 250 * 44.5mm |
|
Weight |
3.4kg |
|
Application |
Firewall, VPN, Network Server, Network Security, Router and etc. |
Outstanding computing performance
Standard 1U rack server,supports computer-intensive and cloud applications saves energy,lowers TCO,simplifes management and maintenance.
Support Intel Core i3/i5/i7 processor sachieving high performancefor compute-intensive
