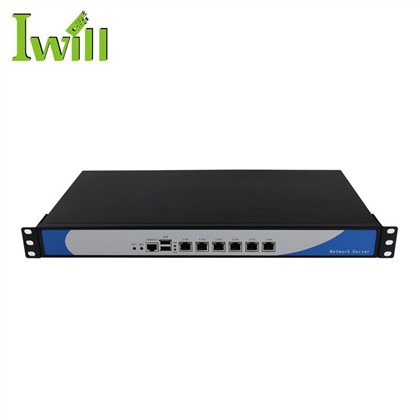

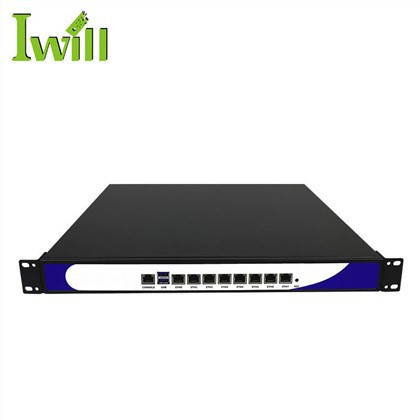

1U 19 Inch Rackmount Network Applince
◇2*DDR3 1333/1600 Max16 GB Ram
◇Adopt Intel B85 Chipset
◇6*Intel 82583V LAN，2*Optical Fiber Ports optional
◇1*Mini PCIE，WIFI/BT
◇OS：
Send Inquiry
Product Details of1U 19 Inch Rackmount Network Applince

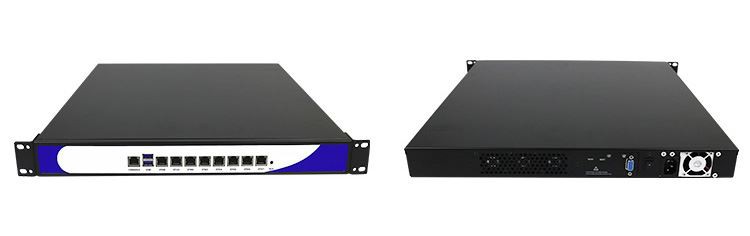

1U Rackmount 19" Structure Network Security Appliance, featuring a high-performance 4th Generation Core i3-4160, i5-4460, or i7-4770 processor. It adopts the Intel B85 chipset, supports 2×DDR3 1333/1600 MHz RAM (up to 16 GB), and offers up to 6×Intel 82583V Gigabit LAN ports and 2×SFP ports.
It is ideally suited for building high-performance firewalls and virtualized telecom elements, meeting the needs of big data and cloud computing applications.
Work Humidity
| Model | NS-1U8L (B85) |
| Color | Black |
| Shell Material | Good quality of cold-rolled sheet |
| Processor | Intel Core i3 4160(dual core, 4 threads,3.6 GHz) |
| Intel Core i5 4460(quad core, 4 threads,3.2 GHz,turbo boost 3.4 GHz) | |
| Intel Core i7 4770(quad core, 8 threads,3.4 GHz,turbo boost 3.9 GHz) | |
| Chipset | Intel B85 |
| Memory | 2*DDR3 1333/1600 MHz,SODIMM, Max:16 GB |
| I/O | 1*RJ45 COM(support Console),2*USB2.0,6*Intel 1000M LAN |
| 1*VGA,1*Power Switch,1*AC power port | |
| Expansion Slot | 1*MINI PCIE(Support MSATA) |
| 1*MINI PCIE(WIFI/Bluetooth optional) | |
| Network | 6*Intel 82583V LAN,2*Optical Fiber Ports optional |
| Storage | 1*MSATA , 1*2.5" SATA HDD(2*2.5" SATA HDD optional) |
| Power Supply | 110～240V/50～60Hz AC Input |
| Work Temp | -10℃ ～ +50℃ |
| Work Humidity | 5% ～ 95% non-condensing |
| Dimension | 440 * 250 * 44.5mm |
Outstanding computing performance
Standard 1U Rack server supports computer-intensive and cloud applications, saving energy.low TCO,simplifes manangement and maintenance.
Working with intelligent fan speed adjustment to precisely cool the server, markedly increaseing the cooling efficiency.
If you want to know mor info about 19-Inch 1U Network Security Appliance,Please contact us !
