J1900 Industrial PC with LPT
◇ All aluminum structure, fanless design;
◇ Support Intel Celeron J1900 quad core processor;
◇ Max. Support DDR3L 8G RAM;
◇ Support 1*2.5" HDD;
◇ Support MSATA or WIFI or 3G or 4G (Choose one from four);
◇ Support 6*COM (COM2 RS232 or 485 Optional);
◇ Support OS:
Cheap Industrial PC J1900 Fanless Computer

Specification | |
Model | IBOX-206 Plus |
Color | Grey (Color can be customized) |
Material | High-quality all aluminum, surface anodic oxidation |
Processor | Onboard Intel Celeron J1900 (Quad core quad threading, 1.99G, TDP: 10W) |
RAM | Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot, Max. Support 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics |
Display Port | 1*VGA, 1*HDMI (Support synchronous and asynchronous dual display) |

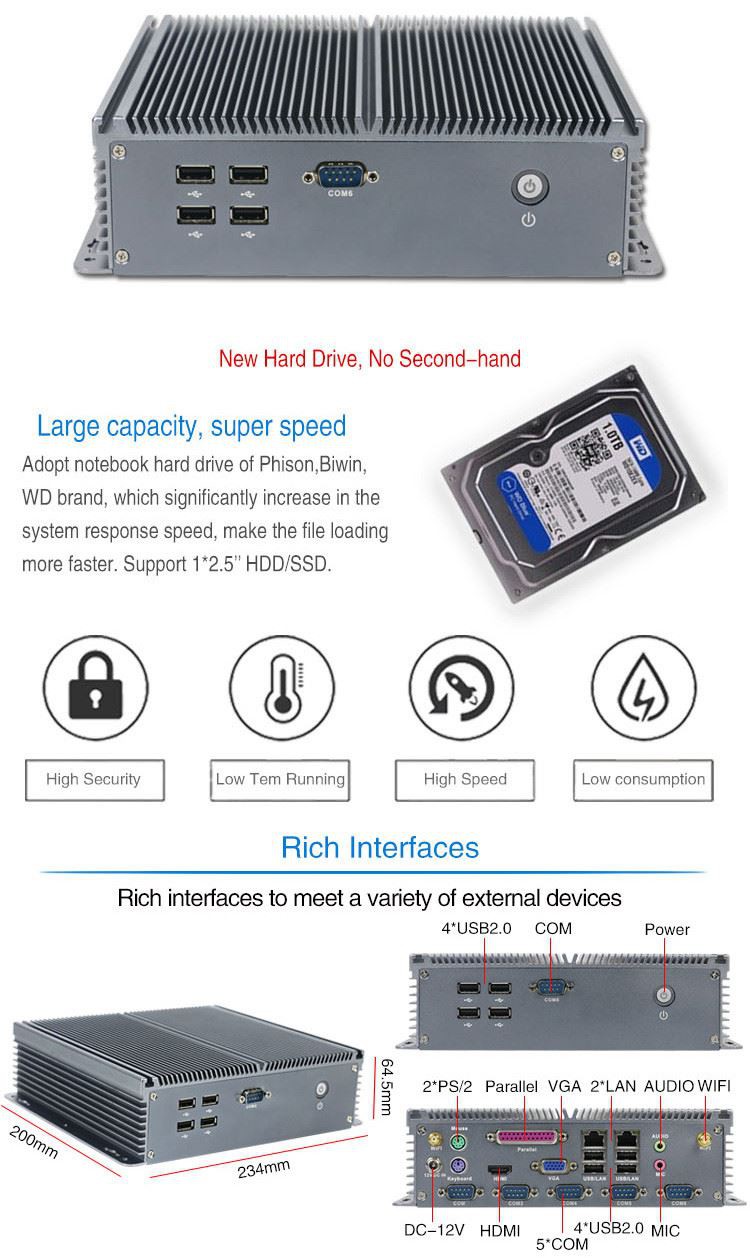

Front I/O | 4*USB2.0, 1*COM, 1*Power Switch |
Rear I/O | 4*USB2.0, 5*COM (COM2 RS232/485 Optional), 2*1000M LAN, 1*VGA |
1*HDMI, 2*PS/2, 1*DC Input, 1*Mic, 1*Line Out, 1*Parallel | |
Expansion Slot | Support 1*MINI PCIE Slot (MSATA/WIFI/3G/4G Optional), Embedded SIM slot |
Optional Ports: GPIO (Standard version doesn't include GPIO port) | |
Network | 2*RTL8111E 10/100/1000M LAN |
Storage | Support 1*MSATA Slot, 1*2.5" HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0~255 level)(Standard version doesn't set these function) |
Work Temp | 0℃ ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD), Surface air flow |
Work Humidity | 0% ~ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |
Dimension | 234 * 200 * 64.5mm |
Net Weight | 2.0 kg |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
