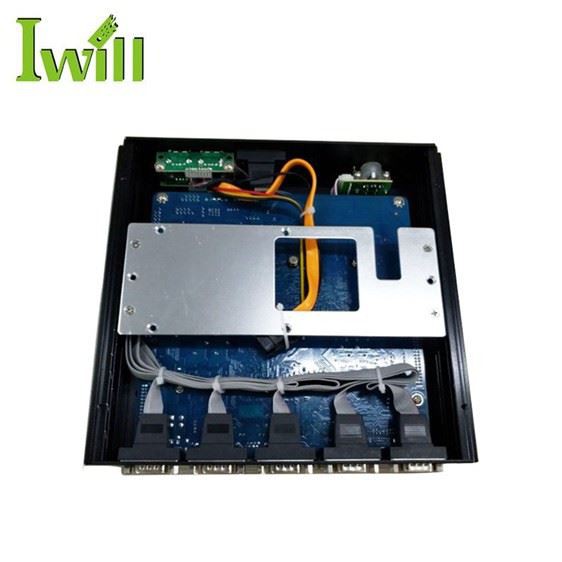

J1900 Industrial PC with 6 COM

Model

IBOX-203 Plus

Color

Black (Color can be customized)

Material

High-quality all aluminum, surface anodic oxidation

Processor

Onboard Intel Celeron J1900 (Quad core quad threading, 1.99G, TDP: 10W)

RAM

Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot, Max. Support 8GB

BIOS

AMI UEFI BIOS

Display Chip

Integrated Intel HD Graphics

Display Port

1*VGA, 1*HDMI (Support synchronous and asynchronous dual display)

Front I/O

4*USB2.0, 1*COM, 1*Power Switch

Rear I/O

1*USB3.0, 1*USB2.0, 5*COM (COM3 RS232/422/485 Optional), 2*1000M LAN

1*VGA, 1*HDMI, 1*DC12V Input, 1*Mic, 1*Line Out

Expansion Slot

Support 1*MINI PCIE Slot (Support MSATA)

Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot

Optional Ports：GPIO, LPT, PS/2 (Standard version doesn't include these ports)

Network

2*RTL8111F 10/100/1000M LAN

Storage

Support 1*MSATA Slot, 1*2.5" HDD

Input Voltage

Support DC 12V Input

Other Function

Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function)

Work Temp

0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow

Work Humidity

0% ～ 95% non-condensing

Certificates

CE, CCC, FCC Class A, ROHS

Dimension

234 * 200 * 54mm

Net Weight

2.0kg

Application

Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.
