6 LAN Mini PC

Features：
◇ All aluminum structure，Fanless design；
◇ Onboard Intel 8th Generation Core i5/i7；
◇ Support 2*DDR4 RAM Slot，Max Support 32G；
◇ Support 1* MSATA，1*2.5”SATA；
◇ Support 6* Intel 1000 M Lan；
◇ Support 1* RJ45 COM（Support Console）；
◇ Applied O/S：

6 Lan mini pc support Intel 8th Celeron 3867U/Core i5 8250U/i78550U,Support 2*DDR4 RAM Slot,Max Support 32G;Support 6* Intel 1000 M Lan;Support 1* RJ45 COM(Support Console).

6 LAN Mini PC

N-18-750_02

N-18-750_03

N-18-750_04

6 Lan mini pc
Model	IBOX-501 N18
Color	Black (Color can be customized)
Materia	High-quality all aluminum, Surface anodic oxidation
Processor	Onboard Intel Celeron 3867U(Dual core, dual threads,1.8G,2MB Cache);
	Ondoard Intel Core i5 8250U(quad core,8 threads,1.6G,Max.Turbo 3.4G,6MB Cache);
	Onboard Intel Core i7 8550U(quad core,8 threads, 1.8G,Max.Turbo 4.0G,8MB Cache)
RAM	Support 2* DDR4 2133/2400 MHz SODIMM RAM slot,Max.32 GB
Display Chip	Integrated Intel UHD Graphics 620
Display Port	1* HDMI(No sound output)

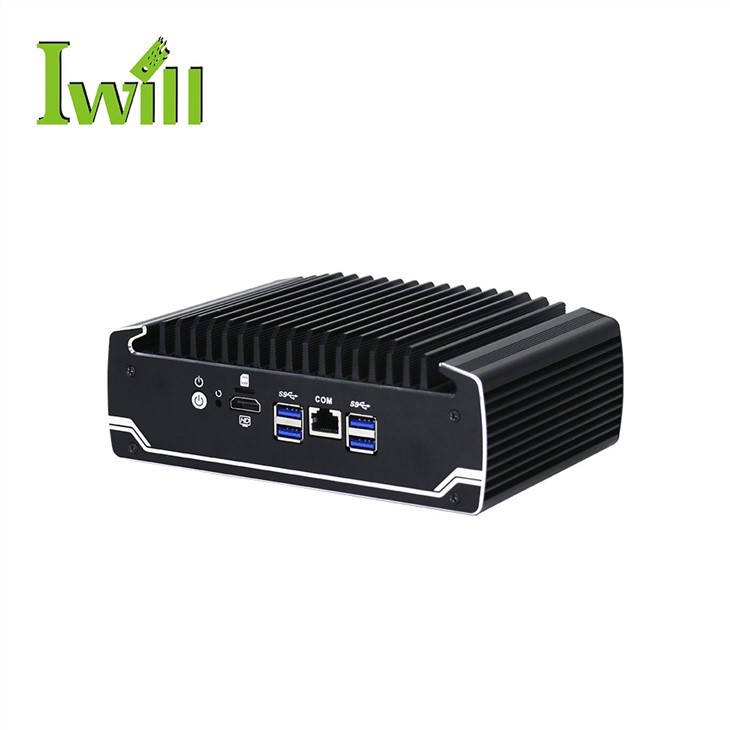

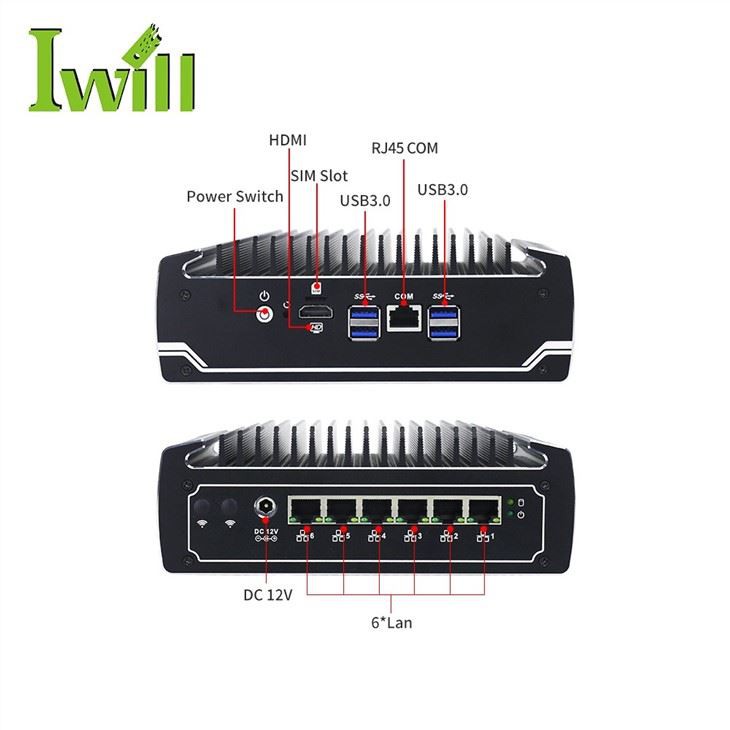

Front I/O	4USB3.0,1Power Switch,1RJ45 COM(Support Console),1 HDMI

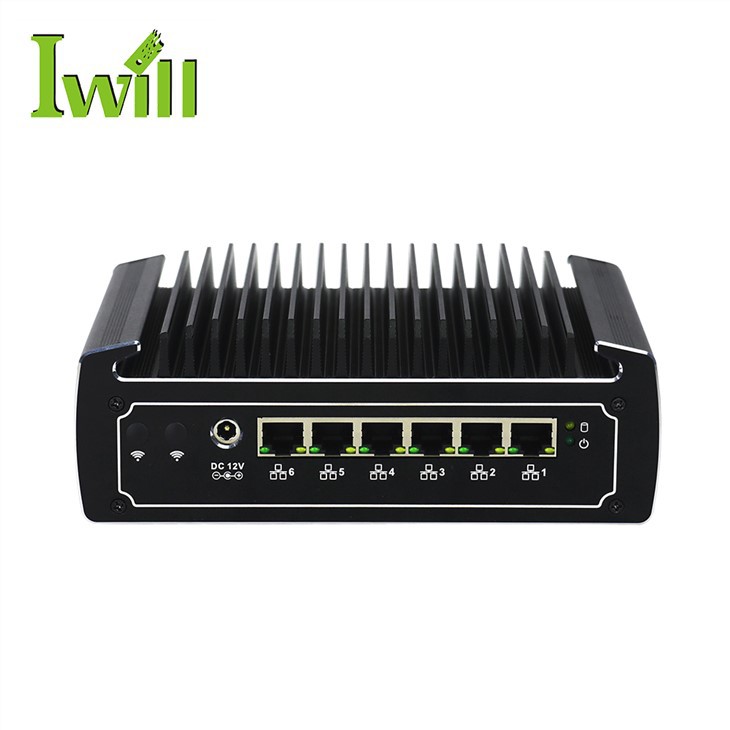

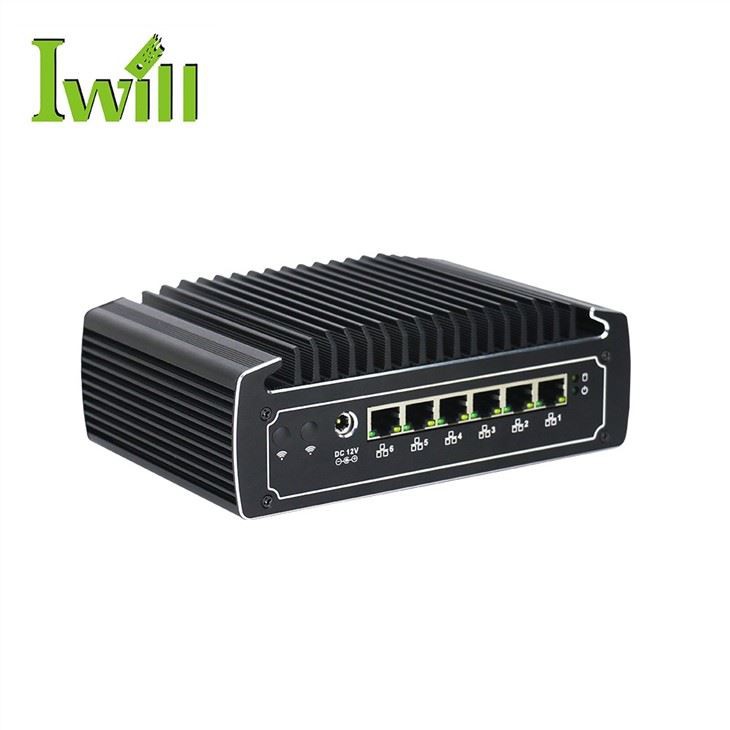

Rear I/O	6RJ45 1000M Lan, 1DC
Expansion	Support 1* half height MINI PCIE slot(WIFI/BT Optional)
Expansion	Support 1* Full height MINI PCIE slot(Suooport MSATA/4G,1* Nano-SIM slot on the plate)
Network	6*Intel i211-AT 10/100/1000M LAN
Storage	1MSATA slot,12.5" HDD
Input Voltage	Support DC 12V Input
Other Function	Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0～255 level)
Work Temp	0℃ ～ +50℃(Commercial HDD),-20℃ ～ +50℃((Industrial SSD),Surface air flow
Work Humidity	0% ～ 95% non-condensing
Dimension	186 * 126.5 * 66 mm
