i5 i7 Fanless Industrial PC
◇1xDDR4 2133/2400 Ram，Max:32GB
◇WIFI/3G/4G Optional; choose one from three
◇1xVGA，1xHD-MI,Intel UHD Graphics
◇TPM2.0 security encryption
◇OS：
Send Inquiry
Product Details ofi5 i7 Fanless Industrial PC
shenzhen-based Industrial PC maker specialized in making Ultra small and powerful Industrial.The IBOX-3046 Powered by intel celeron 4205U, 8th gen core i5 -8265U/ i7-8565U quad core Industrial fanless pc,with TPM 2.0 Security ,window 11 OS,Applied in Kiosk,Projects,Subway Station,Commercial,Medical Research Room,Smart Medical Display,Warehouse,Self-service Terminal,Automation,ATM,POS, Machine etc.,
|
Model |
IBOX-3046 |
| Color | Titanium gray |

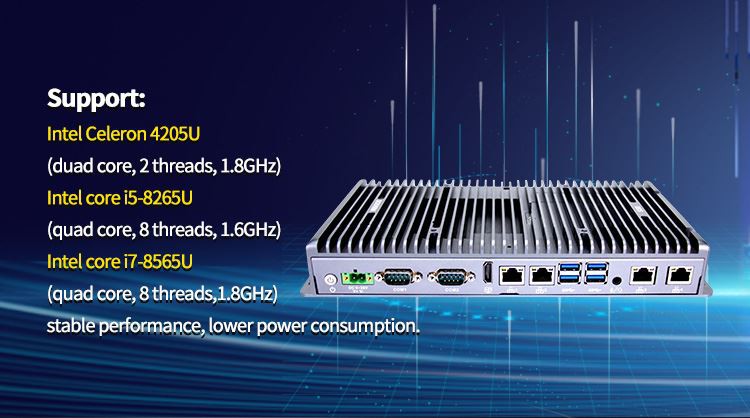

| Processor | Intel Celeron 4205U Dual core/ Core i5-8265U Quad core/ i7-8565U Quad core processor |
| RAM | 1*DDR4 2133/2400 SODIMM Memory slot,Max. Support 32GB |
| Storage | 1*M.2 2280 slot,1*2.5" HDD,Support RAID 0/1 |
| Expansion | 1*M.2 M-Key 2280 slot(Support SATA Protocol ) |
| 1*MINI PCIE Slot(WIFI/3G/4G Optional ) | |
| Expansion Ports：GPIO(8 Input 8 Output),2*COM,1*USB2.0(Standard version doesn't include these ports) | |

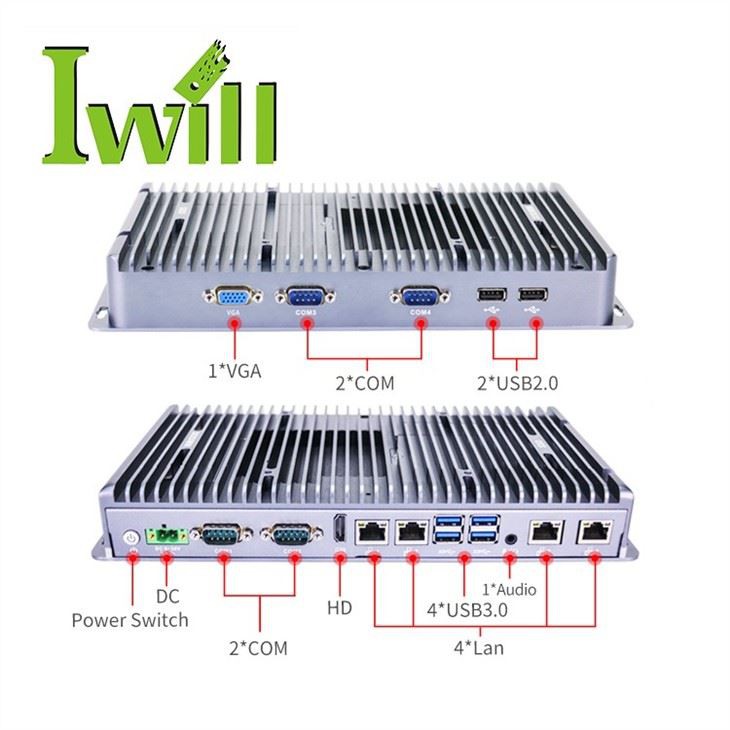

| I/O | 1*VGA, 1*HD-MI |
| 4*USB3.0, 2*USB2.0,2*COM, | |
| 4*Intel i211-AT 1000M LAN, | |
| 2*COM(COM1,COM2 RS232/RS422/RS485 Optional), | |
| 1*Audio,1*2Pin power supply phoenix connector,1*Power Switch | |
| Input voltage | DC 9V ～ 36V |
| Work Temp | 0℃ ～ +50℃,-20℃ ～ +60℃ |
| Work Humidity | 5% ～ 95% non-condensing |
| Size | 280*143*40mm |
| Weight | 1.45kg |
The IBOX-3046 is built to easily integrate into any industrial application. I/O features include 4x COM ports and 2com support RS232/RS422/RS485 . The IBOX-3046 also comes with 4xIntel 1000M Gigabit Ethernet ports, including one Intel® i211 chipset, The IBOX-3046 is expandable with1xMINI PCIE Slot, WIFI/3G/4G Optional, choose one from three;
The IBOX-3046 offers wide voltage input of 9V to 36V, wide operating temperature range from -20°C to 60°C and All aluminum alloy structure.key features to ensure reliable service in harsh industrial environments.
Click and get more about iwill ibox-3046 8th gen fanless industrial pc . Welcome to consult !
