Application of Embedded IPC in Expressway Monitoring System
The purpose of the highway monitoring system is to ensure traffic safety and smooth roads, provide reliable networked traffic services for rapid transportation, provide free communication channel services for traffic flow/vehicle-road interaction, and provide full-time responsive emergency services for emergency events. , to provide travelers with refined and autonomous travel services.
1. System overview
Using visual technology and image recognition technology, the highway monitoring system can accurately locate the road vehicle target, track the running track of the vehicle, intelligently judge the driving path of the vehicle, and realize the comprehensive information monitoring of the vehicle. At the same time, it realizes functions such as traffic violation detection and recording, vehicle intelligent monitoring, traffic incident detection, traffic parameter detection, and video surveillance.
2. System requirements
The highway monitoring system requires the functions of automatic detection and recording of traffic violations, vehicle feature recognition, video monitoring, data storage, data transmission, and self-diagnosis and alarm. In addition, the highway monitoring system requires uninterrupted and long-term stable operation in complex environments such as outdoor high temperature/low temperature, humidity, electromagnetic, dust, and vibration. It is required that the industrial computer adopts a low-power, fanless design, with a mean time between failures > 30,000 hours and an average repair time < 1 hour; supports ultra-high-definition cameras with a wide detection range; built-in large-capacity storage, no need for additional video equipment; Diagnosis and alarm function, convenient for later maintenance; support software upgrade mode to ensure the improvement of subsequent functions.
3. System framework and schematic diagram

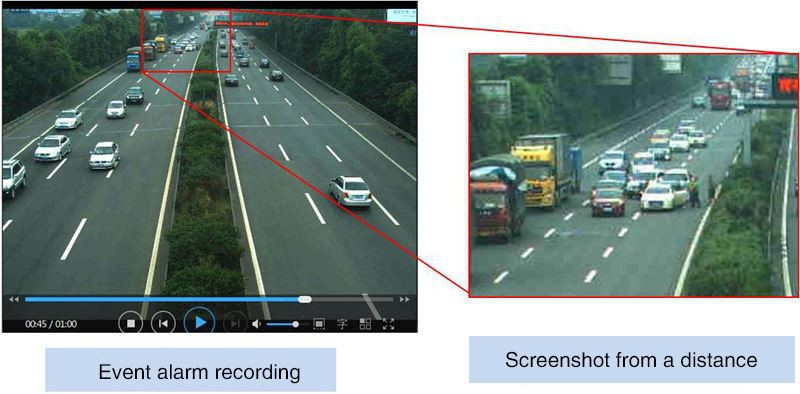

The highway monitoring system can be divided into traffic monitoring, collection, analysis and release of traffic information and meteorological information. Among them, the camera cooperates with the industrial computer to automatically patrol various traffic conditions within 1km, and on the other hand, it is responsible for receiving the alarm signals of various punching vehicles from the monitoring center at any time, and automatically tracking. In addition to the normal monitoring tasks, the industrial computer also needs to transmit monitoring information to the monitoring room in real time.
4. Solutions
Embedded industrial computer supports wide voltage 9~36V, wide temperature -20~70℃, can provide different shape, processor, storage and I/O configuration, strong scalability and easy maintenance, can be used in high vibration, large temperature difference, 7*24 hours of normal operation in dusty and harsh environments. With a low-power industrial motherboard, it supports Intel®Skylake-U/kaby lake-U i3/i5/I7, compatible with 15W/28W processors, DDR4 memory up to 32GB, supports quad-core, hyper-threading, and has fast computing speed. The onboard dual Gigabit Ethernet port has excellent data acquisition function, which can provide users with high bandwidth for data transmission while reducing the user's cost of use. In addition, its I/O port design is highly scalable and conforms to the latest industrial peripheral standards, making it the first choice for various applications requiring high-speed data processing.
Embedded IPC features are as follows:
1. It supports Intel and domestic platform processors, and supports Windows/linux and Galaxy Kirin/UOS domestic operating systems. The product has good scalability and can meet various application needs of the industry.
2. It is built in strict accordance with industrial-grade standards, and has undergone various professional tests, with strong environmental adaptability.
3. Rich functional interface design, supports audio input and output, supports multi-channel splicing, and can meet the needs of a variety of peripheral access.
4. Support fast algorithm and fast storage.
5. With high-performance video/image codec engine, it supports VGA+HDMI+DP multiple high-definition display outputs.
6. It supports Ethernet/WIFI/4G/Beidou positioning and timing, has a flexible network application environment, and supports fast and efficient transmission of digital signals.
The embedded industrial computer can provide efficient computing performance in a small space, is durable, efficient and reliable, and can play an important role in the highway monitoring system. It is the correct choice for customers with limited space applications.
