I5 8250U I7 8550U Mini PC

Model

Nano-N15

Color

Black (color can be customized)

Material

High-quality all aluminum

Processor

Intel Core i5 8250U (Quad core eight threads, 1.6G, Max. Turbo 3.4G, 6MB Cache)

Intel Core i7 8550U (Quad core eight threads, 1.8G, Max. Turbo 4.0G, 8MB Cache)

CPU Architecture

KabyLake-R

RAM

Support 1*DDR4 2133/2400 SODIMM memory slot, Max. Support 16GB

BIOS

AMI EFI BIOS

Display Chip

Integrated Intel HD Graphics 620

Display Port

1*DP, 1*HDMI

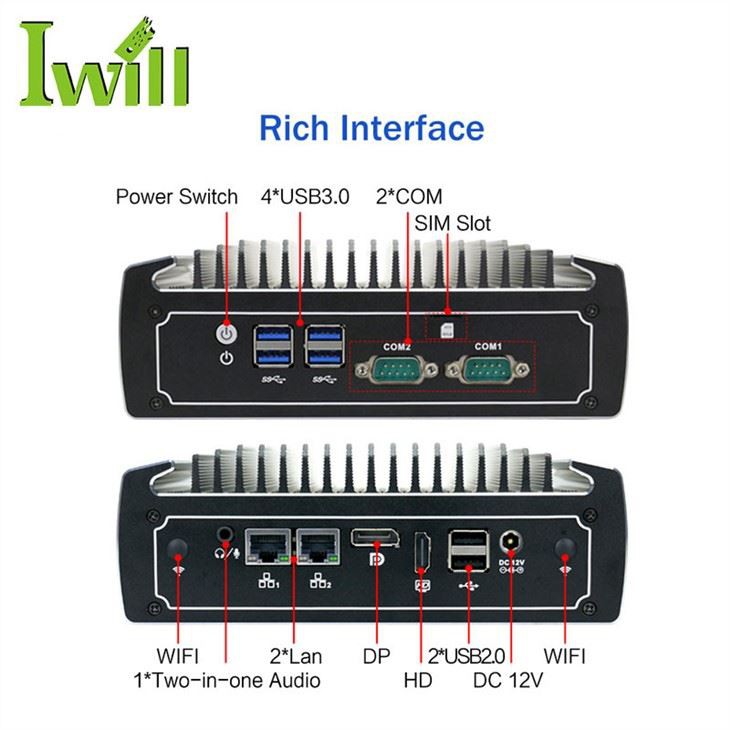

Front I/O

2*COM (2*COM RS232/485 is Optional), 4*USB3.0, 1*Power Switch, 1*SIM slot

Rear I/O

1*DC-IN 12V, 2*USB2.0, 1*HDMI, 1*DP, 2*Intel 1000M LAN, 1*Audio (Support Mic and Speaker at the same time)

Expansion Slot

Support 1*M.2 2280 slot (Support M.2 PCIE X4 and M.2 SATA SSD)

Support 1*MINI PCIE slot (WIFI/3G/4G choose one from three), embedded SIM socket

Network

2*Intel i211-AT 10/100/1000M LAN

Storage

Support 1*M.2 2280 slot, 1*2.5" HDD

Power Supply

DC 12V

Work Temp

0℃ ～ +40℃(HDD), -20℃ ～ +50℃(SSD), surface air flow

Work Humidity

5% ～ 95% non-condensing

Dimension

186 * 126.5 * 66 mm

Net Weight

1.3 kg

Application

Business Office, HD Video Playback, Electronic Education, Industrial Automation etc.
