15 Inch Fanless Resistance Touch Panel
◇ Die cast aluminum alloy moluding,fanless design;
◇ Onboard Intel Whiskey Lake U series processor;
◇Support 9V ～ 36V wide voltage Input, and TPM2.0 security encryption;
◇ Support TPM2.0,Windows 11;
◇ Support 2*RS232/422/485 COM,6*COM Optional;
◇ Support 2*Intel lans,4*Intel lans Optional;
◇ IP65 full flat front panel;
◇ Applied OS:
Send Inquiry
Product Details of15 Inch Fanless Resistance Touch Panel
ITPC-A500 intel core i7 8565U 15 inch fanless Resistance touch panel pc support win 11, The appearance is the same as A116 and A600 but the size is different. This one is 15 inch, A116 is 12.1 inch, and A600 is 17 inch.
Model: ITPC-A500
- Color: Titanium Gray (customizable)
- Material: Aluminum alloy chassis
Processor Options:
- Onboard Intel Celeron 4205U (Dual-core, 2 threads, 1.8GHz, 2MB Cache)
- Onboard Intel Core i5-8265U (Quad-core, 8 threads, 1.6GHz, Max Turbo 3.9GHz, 6MB Cache)
- Onboard Intel Core i7-8565U (Quad-core, 8 threads, 1.8GHz, Max Turbo 4.6GHz, 8MB Cache)
Memory:
- Supports 1 × DDR4 2133/2400 SODIMM slot, up to 32GB max

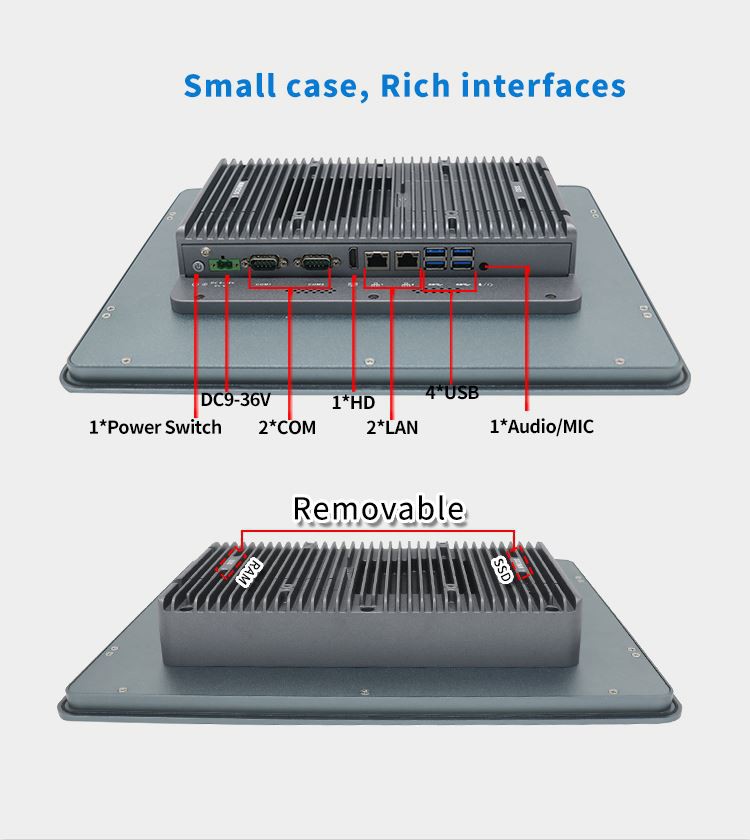

I/O Interfaces:
- 1 × HDMI
- 2 × COM (COM1 & COM2: RS232/RS422/RS485 optional; up to 6 COM ports optional)
- 1 × Power switch
- 1 × 2-pin Phoenix connector for power input
- 1 × Audio jack (supports microphone and speaker simultaneously)
- 4 × USB 3.0
- 2 × Intel 1000M LAN (up to 4 LAN ports optional)
Other Features:
- TPM 2.0 security encryption
- Auto power-on when power is connected
- Scheduled boot
- Wake-on-LAN
- PXE boot
- Watchdog timer (0–255 levels)
Note: These functions are not enabled in the standard version.
Expansion Options:
- GPIO (8 inputs, 8 outputs)
- 2 × LAN
- 4 × COM
- 2 × USB 2.0
Note: These ports are not included in the standard version.
Display:
- Screen Size: 15-inch TFT-LCD
- Brightness: 350 cd/m²
- Viewing Angle: Full viewing angle
- Aspect Ratio: 4:3
- Resolution: 1024 × 768
| Model | ITPC-A500 |
| Color | Titanium gray (Color can be customized) |
| Material | Aluminum alloy chassis |
| Processor | Intel Celeron 4205U Dual core |
| Intel Core i5-8265U Quad core | |
| Intel Core i7-8565U Quad core | |
| Memory | 1*DDR4 2133/2400 SODIMM Memory Slot,Max. Support 32GB |
| Storage | 1*M.2 2280 slot(SATA Protocol),1*2.5" HDD,Support RAID 0/1 |
| OS | Win10, Win11, Linux |
| Expansion | 1*Mini PCIE slot(WIFI/Bluetooth/3G/4G Optional,embedded SIM slot) |
| Display Port | 1*HD,1*LVDS |
| 1*Power Switch , 1*Audio (Support Mic and Speaker at the same time) | |
| 2*COM(COM1&COM2 RS232/RS422/RS485 Optional,6*COM Optional) | |
| I/O | 1*2Pin power supply phoenix connector |
| 4*USB3.0 ,1*HD | |
| 2*Intel 1000M LAN(4*LAN Optional) | |
| Other Function | TPM2.0 security encryption,Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog |
| Work Temp | 0℃ ～ +50℃(Commercial),-20℃ ～ +60℃(Industrial SSD) |
| Work Humi | 5% ～ 95% non-condensing |
| Dimension | 366 * 290*60 mm (Embedded Installation: 355 * 279 mm) |
| Weight | 3.9 kg |
