Low Power Fanless Mini Pc
Intel Celeron J4125 (Quad core quad threading, 2.0GHz, Max turbo2.7GHz)
Support 1*DDR4 2400 SODIMM RAM Slot，Max support 8GB
Integrated Intel ® UHD Graphics 600
1*Power Switch，4*USB3.0，2*USB2.0，1*COM
Send Inquiry
Product Details ofLow Power Fanless Mini Pc

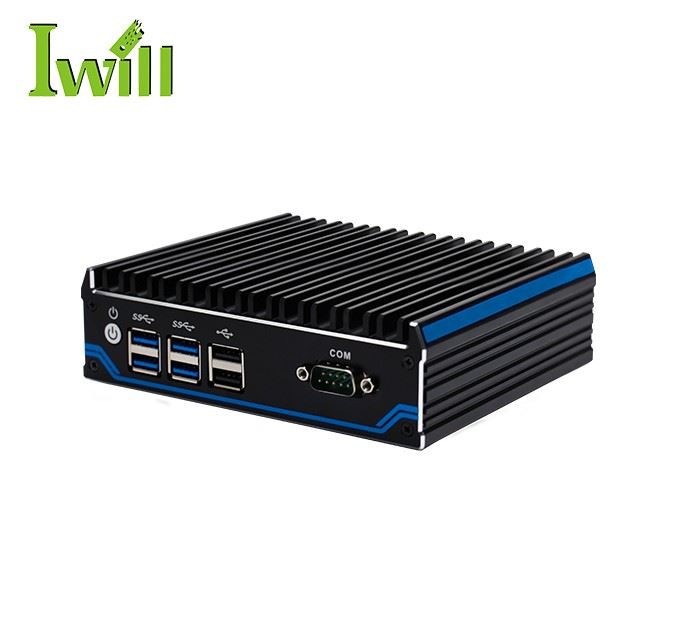

Nano N1021 is a low-power, fanless mini PC equipped with an Intel Celeron J4125 quad-core processor. It supports Windows 10, Linux, and other operating systems. It also supports 1 × M.2 and 1 × 2.5" SATA HDD, making it very convenient to use.
The entire machine features an aluminum alloy molded design with a simple structure, offering excellent dustproof, heat dissipation, anti-vibration, and EMC performance. It provides high reliability and strong adaptability to various environments.
|
Product name |
low power fanless mini pc |
|
RAM |
Support 1*DDR4 2400 SODIMM RAM Slot,Max support 8GB |
|
BIOS |
AMI UEFI BIOS |
|
Display Port |
1*HDMI,2*DP(Support synchronous and asynchronous three display,Max Resolution support 4096x2160 @ 60Hz) |
|
Front I/O |
1*Power Switch,4*USB3.0,2*USB2.0,1*COM |
|
Rear I/O |
1*DC,1*HDMI,2*DP,2*lan |
|
1*SIM slot,1*Audio (support Mic and Speaker at the same time) |
|
|
Expansion Slot |
Support 1*M.2 2280 M-key slot(Support SATA) |
|
Support 1*M.2 2242 B-key Slot (Support 4G function), embedded 1*SIM slot |
|
|
Support 1*M.2 2230 E-key Slot(Support WIFI,Bluetooth Optional) |
|
|
Optional expansion function：TPM Pin(Support TPM 1.2 / 2.0 security module),1*COM ( (Standard version doesn't have these function) |
|
|
Network |
2*10/100/1000M RTL8111H LAN |
|
Network |
1*M.2 2280 slot,Onboard 1*2.5" SATA HDD |
|
Input Voltage |
Support DC 12V Input |
|
Other Function |
Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot |
|
Work Temp |
0℃～ +50℃(Commercial HDD),-20℃ ～ +60℃(Industrial SSD) |
|
Work Humidity |
0% ～ 95% non-condensing |
|
Dimension |
144 * 126.5 * 42 mm |
|
Application |
0.8 kg |
Storage Instructions
The low-power fanless mini PC should be stored in its original packaging. The recommended storage temperature is 0℃ to 40℃, with relative humidity between 20% and 85%. The storage area must be free of harmful gases, flammable or explosive materials, and corrosive chemicals. It should also be free from strong mechanical vibrations, impacts, and magnetic fields.
The packaging box should be placed at least 10 cm above the ground and at least 50 cm away from walls, heat sources, cold sources, windows, or air inlets.
Caution – Risk of Equipment Damage
When transporting the product in cold weather, avoid sudden temperature changes. Ensure that no condensation forms on or inside the device. If condensation is present, wait at least 12 hours before powering on the device.
