Mini PCs are positioned as HTPCs with a harmonious living room atmosphere, high-definition video playback, and a relatively quiet environment. With the growing trend of thinness of the chassis and the popular listing of computer hosts in the living room, it is a trend to place mini computer hosts in the living room.
Color | Titanium gray (Color can be customized) |
Material | High-quality all aluminum，surface anodic oxidation |
Processor | Onboard Intel Celeron J4125（Quad core quad threading，4MB Cache，2.0GHz，pulse frequency 2.7GHz） |
CPU Architecture | Gemini Lake Refresh |
RAM | Support 1*DDR4 2400MHz SODIMM Memory Slot，Max. Support 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics 600 |
Display Port | 1*HDMI，1*DP，1*Type-C Port（Support synchronous and asynchronous three display，Max Resolution support 4096x2160 @ 60Hz） |

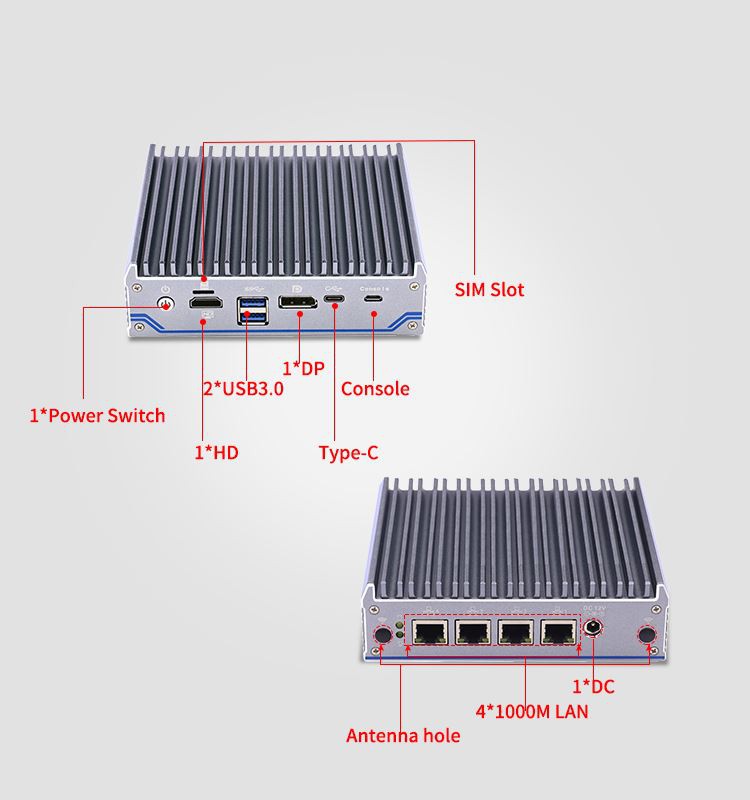

Front I/O | 1*Power Switch，1*HDMI，1*DP，1*Mirco USB (Support Console) |
2*USB3.0，1*Type-C Port（Optional Ports：1*USB3.0 and 1*DP） | |
Rear I/O | 1*DC，4*1000M LAN |
Expansion Slot | Support 1*M.2 2280 M-key Slot（Support SATA Protocol） |
Support1*M.2 2230 E-key Slot（WIFI or Bluetooth Optional） | |
Support1*Mini PCIE Slot（4G/WIFI/Bluetooth Optional，Embedded SIM slot） | |
Network | 4*Intel i210-AT 10/100/1000M Ethernet LAN |
Storage | Onboard 8G EMMC，1*M.2 2280SSlot，1*2.5’’ HDD |
Input Voltage | SupportDC 12V Input |
Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot |
Work Temp | 0℃ - +50℃（Commercial HDD），-20℃ - +60℃（Industrial SSD），Surface air flow |
Work Humidity | 0% - 95% non-condensing |
Certificates | CE、 CCC、 FCC Class A、 ROHS |

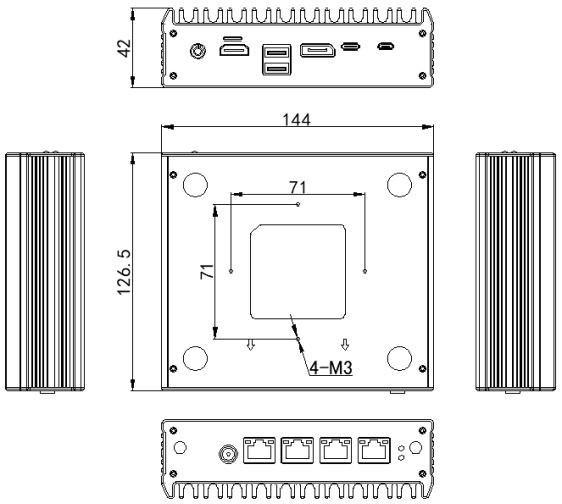

Dimension | 144 * 126.5 * 42 mm |
Net Weight | 0.7 kg |
Application | Firewall, VPN, Network Server, Network Security, Router and etc. |

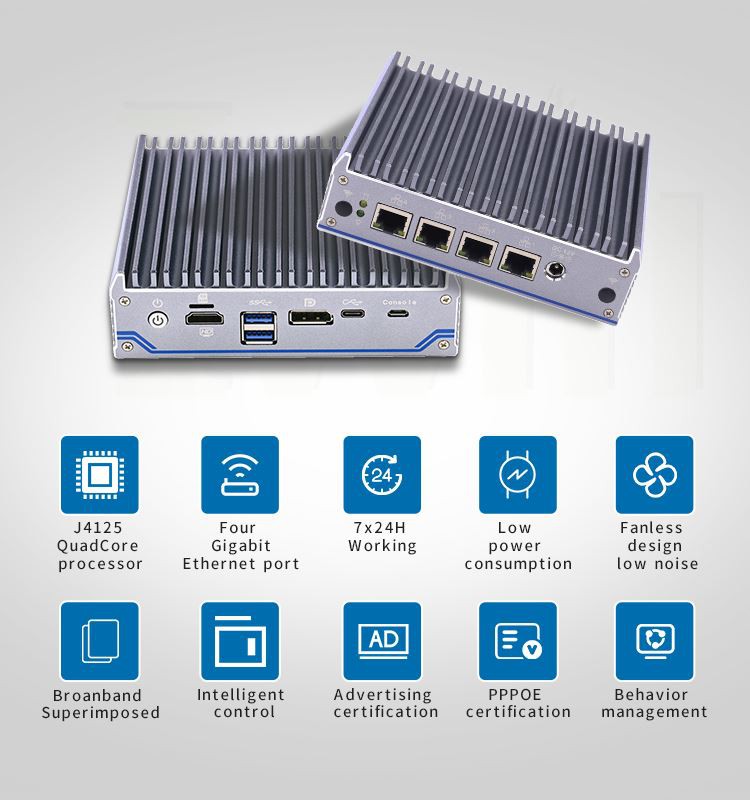

1) Onboard Intel Celeron J4125（Quad core quad threading，4MB Cache，2.0GHz，pulse frequency 2.7GHz）
2) 1*DP+1*HD +4*LAN+2*COM+2*USB3.0
3) High-quality pure aluminum Case
4)Support 2*M.2 Slot,1*Mini PCIE Slot；
5)Onboard EMMC 8G，Support 1*Type-C Full Function；
6) Support Desktop, Din Rail, VESA wall-mounted and other fixing methods；
7)Intel Celeron J4125 Quad core mini pc
Packaging & Shipping
1.Delivery Time:
1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways:
Each pc for one neutral box, 10 or 16 neutral box for one carton.
3.Shipping Ways:
For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Warm Tips: If you're interested in this Intel Celeron J4125 Quad core mini pc, and want to know more information, like quotation, products, solutions, etc.,welcome to contact!
Contact: Nancy
Email: nancy@iwilltech.cn
Skype: iwillnancy
Wechat ID: Nancy_0008
