MINI PC Firewall Fanless Network Server with 6*Lan Port VPN Firewall PFsense Computer
1) Inter core i3 i5 i7 LGA1155 processor dual core and intel B75 chipset

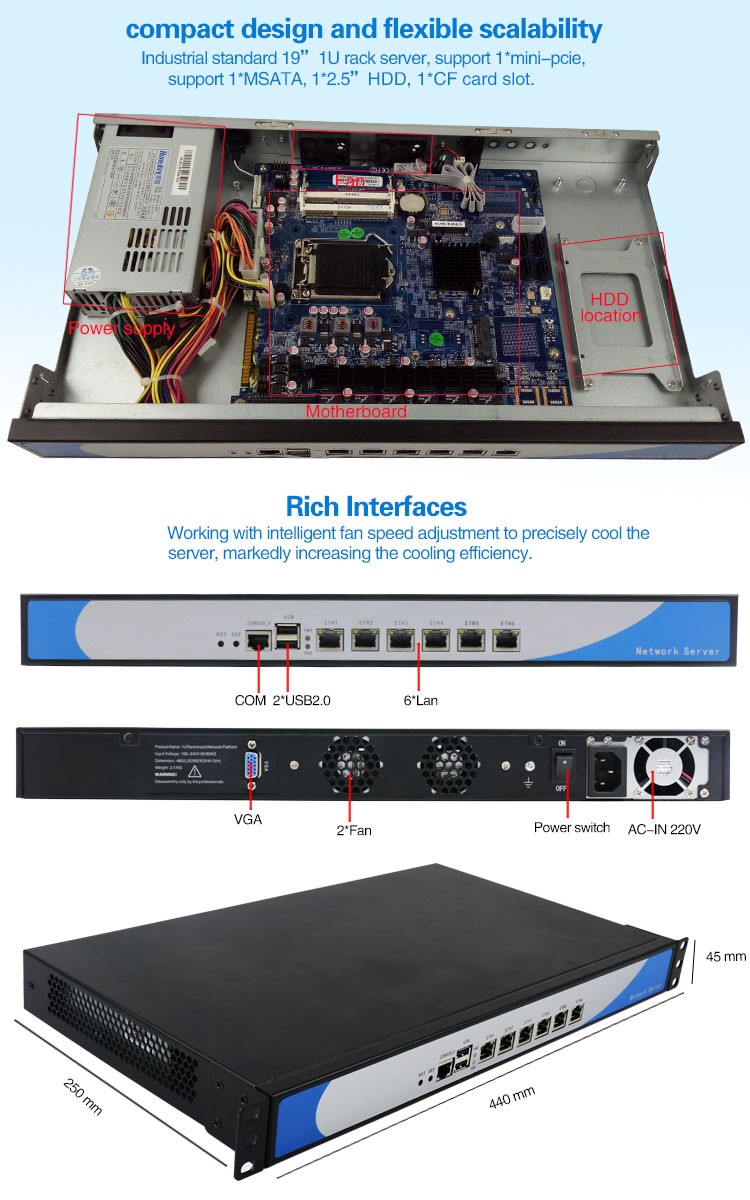

2) 1*VGA+2*USB2.0+1*Power switch +6*Intel LAN(Can add 2* fibre optical port)
3) AMI 64MB Flash ROM .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT
4) High-quality pure aluminum Case
5) 1*MSATA, 1* 2.5'' SSD/HDD, 1*mini-PCIE, support wifi
6) 6*Intel 82574L 1000M lan card, support wake on lan
7) AC 100V - 240V power supply ;
8) Applied in Firewall, VPN , Network Server, Network Security, Router etc .
Specification | |||
Model | NS-1U8L(B75) | ||
Case Color | Black(color can be customized) | ||
Material | High-quality pure aluminum | ||
CPU | Intel Core i3 i5 i7 LGA1155 processor dual core | ||
Chipset | Adopt Intel B75 chipset | ||
Mainboard | 170*170mm mini ITX mainboard | ||
RAM | 2*SO-DIMM DDR3, support max 16G | ||
Storage | 1*MSATA, 1*2.5'' HDD, 1*CF card slot | ||
Audio | N/A | ||
Display Interface | 1*VGA | ||
Display | Integrated Intel HD Graphic card, support 1*VGA | ||
I/O | 2*USB2.0 | ||
1*VGA | |||
1*HDD LED | |||
6*Intel Lan | |||
1*Power LED | |||
1*Power Switch | |||
1*AC 220V input | |||
Network Card | 6*Intel 82574L 1000M lan, support wake on lan | ||
Expansion | 1*mini-PCIE, support Wifi | ||
Watch Dog Timer | Support | ||
Power Supply | AC 100V~240V power supply | ||
Operating System | Windows 7/8/10, Linux, Pfsense | ||
BIOS | AMI 64M DPI Flash ROM | ||
Working Temperature | -10°C - 60°C | ||
Working Humidity | 0% - 95% relative humidity, Non-condensing | ||
Size | 440*250*45 mm (L*W*H); | ||
Weight | 8kg; | ||
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
