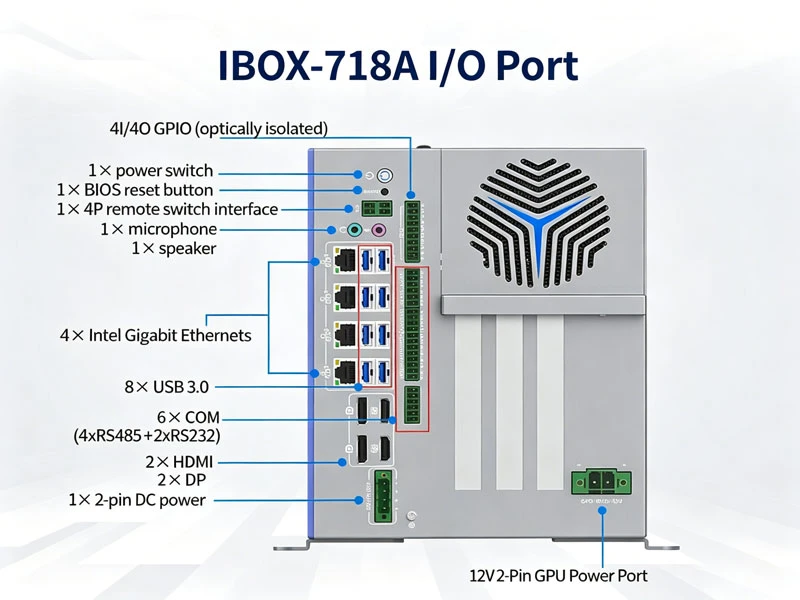

IBOX-718A PCIe Expandable Industrial Computer

12/13/14 Gen Intel Procrssor, 3×PCIe Slots, Q670/W680, 4×Intel LAN

Expansion Power for Machine Vision & Motion Control

IBOX-718A provides three PCIe expansion slots (X16 + two X8) for motion control cards, frame grabbers, and high-speed data acquisition modules. This makes it an ideal choice for machine vision systems requiring simultaneous camera input and real-time actuator control.

Intelligent Connectivity and Remote Management.

Equipped with 4×Intel Gigabit LAN ports (including i219-LM with vPro), the 718A supports out-of-band management for remote troubleshooting and BIOS-level recovery. The dual 12–24V DC Phoenix inputs ensure redundant power stability for critical factory automation.

Built for Demanding Edge Deployments.

The fanless aluminum chassis supports wide-temperature operation with industrial SSD. Combined with TPM and watchdog timer, the 718A delivers secure, always-on performance in logistics sorting lines and energy management gateways.

paramenters of CRA series

Expedite multifunctional data after next-generation solutions done foster extensible total linkage after enterprise methodologies never enable resource maximizing relationships

products
Model number	IBOX-718A	IBOX-718B	IBOX-718C
weight (Excluding wall mount)	8.05kg	5.45kg	4.45kg
Dimension	175 × 363 × 230 mm	175 × 253 × 230 mm	230 × 253 × 96 mm
Expansion Slot	1×PCIe X16 slot; 2×PCIe X8 (X4 signal) slots	1×PCIe X16 slot ; 2×PCIe X8 (X4 signal) slots	1×PCIe X16 slot
expansion card max size	312mm×21mm×112mm	215mm ×21mm ×112mm	215mm × 21 mm× 112 mm
procrssor	Intel 12th/13th/14th Gen (Alder Lake-S / Raptor Lake-S desktop processors), LGA1700
Memory	2× DDR5 4800/5600 , up to 64 GB.
Storage	2× M.2 2280 M-key (1× PCIe 4.0 X4/SATA, 1× PCIe 4.0 X4) + 2× 2.5" SATA bays
COM	6 ×COM (1-4 RS485, COM5-6 RS232 )	6 ×COM (1-4 RS485, COM5-6 RS232 )	6 ×COM (1-4 RS485, COM5-6 RS232 )
uSB	8 ×USB 3.0	8 ×USB 3.0	8 ×USB 3.0
Display Chip	2×HD-MI,2×DP	2×HD-MI,2×DP	2×HD-MI,2×DP

FAQ

1. What processors are compatible with the 718 series?
All three models support 12th/13th/14th Gen Intel Core i3/i5/i7 (LGA1700) with Q670 or W680 chipsets.

2. What are the expansion differences between 718A, 718B, and 718C?
718A and 718B offer three PCIe slots (X16 + two X8), while 718C provides one PCIe X16 slot for compact deployments.

3. Can these systems handle 4K multi-display setups?
Yes. Each model features 2×HDMI + 2×DP ports, supporting four independent 4K displays for monitoring and visualization.

4. What is the input voltage range for the 718 series?
They accept DC 12–24V wide voltage input with dual Phoenix connectors, suitable for industrial and vehicle power environments.

5. Which operating systems are officially supported?
Windows 10, Windows 11, Windows 8, and Linux (Ubuntu/Debian/CentOS) are fully compatible.

6. Are the 718 computers fanless?
Yes. All three models use a fully aluminum alloy fanless structure for silent, dust-resistant, and maintenance-free operation.
