I3 I5 I7 Industrial PC with PCIE X4
◇ All aluminum alloy structure, Fanless design;
◇ Onboard Intel Q170 chip;
◇ Support DDR4 1866 or 2133 32G memory;
◇ Support 1*MSATA slot, 2*2.5" SATA;
◇ Optional No expand slot, 2 expand slot, 4 expand slot;
◇ Support 6*COM (Two optional RS232 or 422 or 485);
◇ Support DC 9～36V, Support positive and negative connector reverse protection;
◇ Applied OS:
Send Inquiry
Product Details ofI3 I5 I7 Industrial PC with PCIE X4

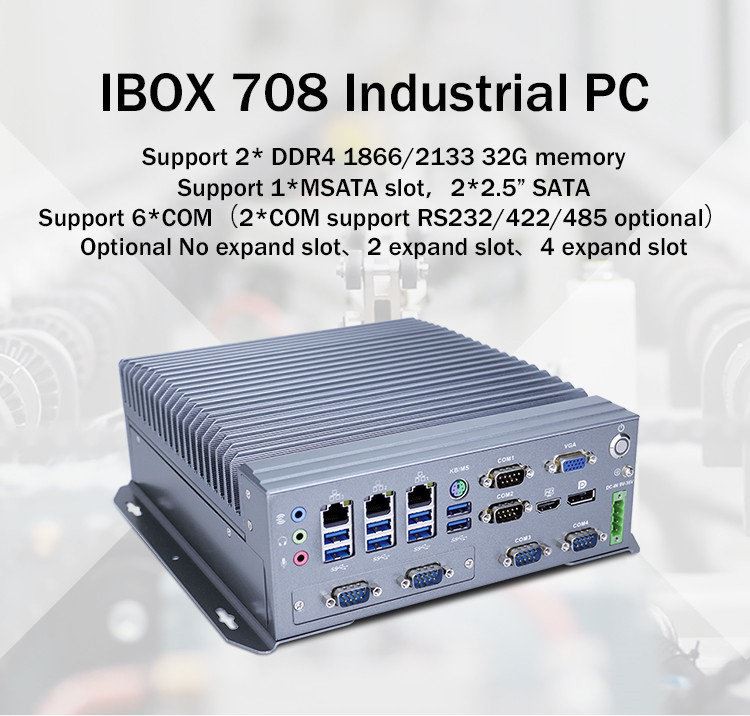

Industrial PC Core I5 6500T Embedded Computer
Specification | |
Model | IBOX-708 |
Color | Titanium gray (Color can be customized) |
Material | High quality aluminum alloy+ sheet metal structure |
Processor | Intel Core i3 6100T (Dual core four threads, 3.2 GHz) |
Intel Core i5 6500T (Quad core four threads, 2.5 GHz, Max turbo 3.1 GHz) | |
Intel Core i7 6700T (Quad core eight threads, 2.8 GHz, Max turbo 3.6 GHz) | |
Memory | Support 2* DDR4 1866/2133 SODIMM memory slot, Max 32GB |
BIOS | AMI EFI BIOS |
Display Chip | Integrated Intel HD Graphics 530 |
Display Port | 1* VGA, 1*HDMI, 1*DP (Support synchronous/asynchronous three display) |
Front I/O | 8*USB3.0, 2 *Intel 1000M LAN, 1*Power Switch, 1* Mic, 2* Speak port |
6* COM (COM1, 2 Optional RS232/422/485), 1* DC Power phoenix terminal | |
1*VGA, 1*HDMI, 1*DP | |
Rear I/O | Support 1*MINI PCIE slot (Support WIFI/3G/4G), Embedded SIM Slot |
Support 1*MINI PCIE slot (Support MSATA/3G/4G), Embedded SIM Slot | |
Optional (Standard version doesn't include these ports): 16 bit GPIO port, 4*USB2.0 | |
Expansion Slot | 1*PCIE X16 slot + 1*PCIE X4 slot + 2*PCI slot, Extension Cards: support 210 mm |
Optional expand slot: 1*PCIE X16 slot + 1*PCIE X4 slot | |
Network | 2*Intel i211-AT, 1*Intel i219-LM 1000M LAN (Support Vpro skill) |
Storage | Support 1*MSATA , 2*2.5" SATA (Support RAID0/1) |
Power Supply | DC 9～36V wide voltage Input, Support positive and negative connector reverse protection |
Other function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function) |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industry SSD), Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |
Size | 210 * 240 * 173 mm【NO VESA Mount】 |
Weigh | 5.2 kg【No VESA Mount】 |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
