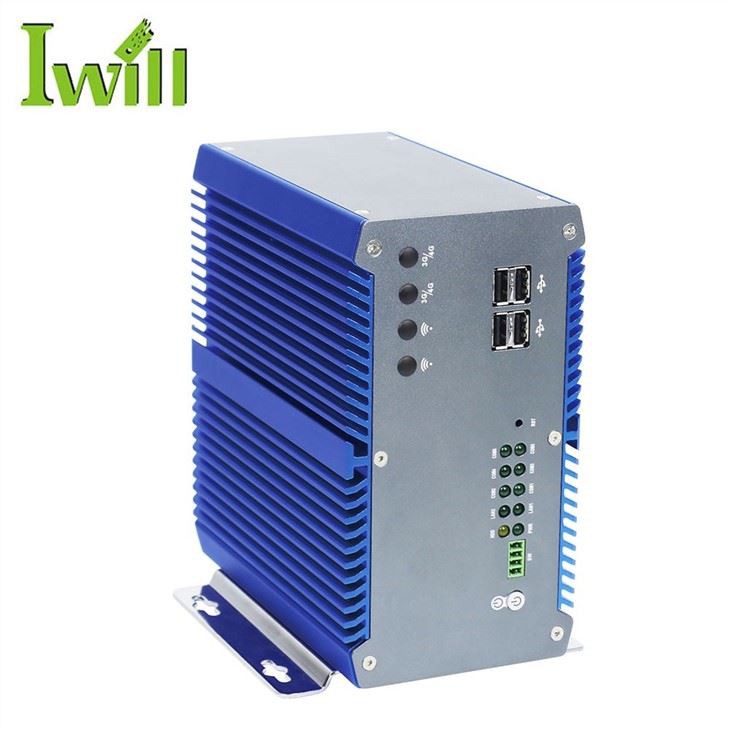

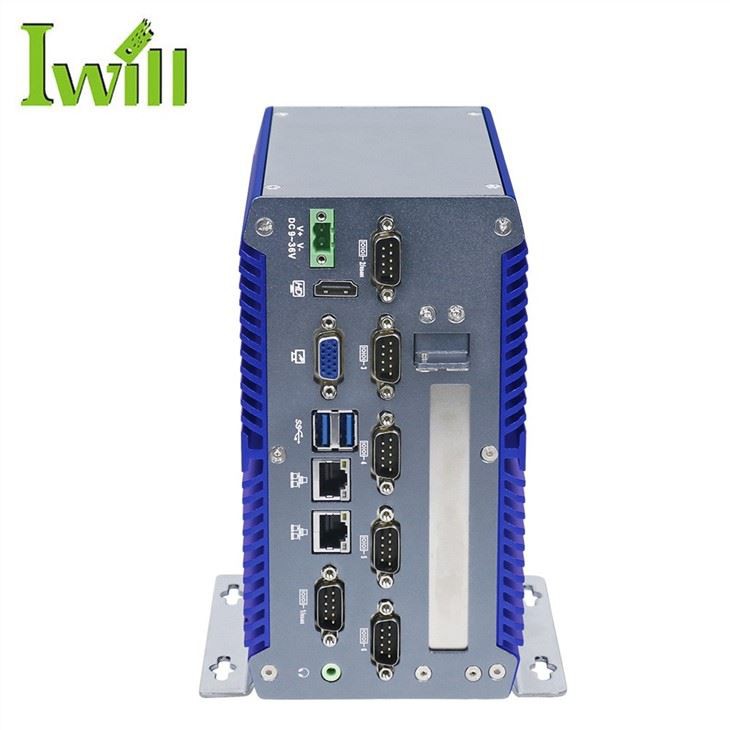

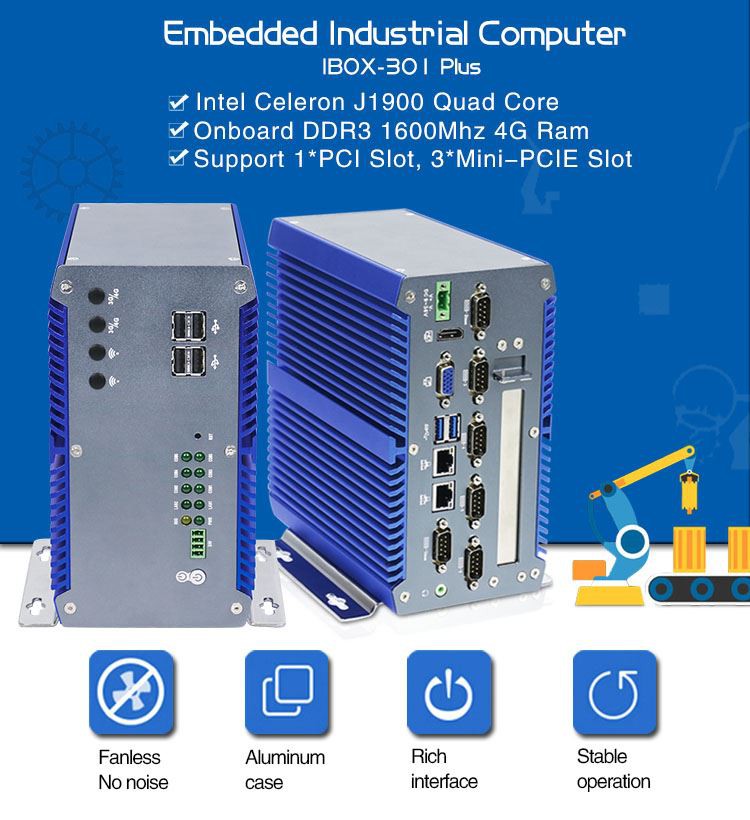

IBOX-301 Plus is a fanless All aluminum industrial embedded computer with1x32bit PCI expansion slots. The expansion slot Max. Can support the length of expansion card：168 mm. Powerd by onboard Intel® Celeron® quad core processor J1900 2.0GHz lower power 10W. can meet most industrial control applications.

A convenient design of Onboard DDR3L 1333 4GB RAM,its compact chassis can accommodate 1*MSATA Slot,1*2.5" HDD hard drives to expand your storage capacity.and maximize the stability and storage space.supports 1*VGA,1*HDMI HD Dual display player and dual gigabit LAN ports design,10xLED is convenient to detect the work of each interface . Otherwise DC 9～36V wide voltage Input,Support positive pole and negative electrode connect reversely protection.

Work Humidity

J1900 Quad Core Embedded Dual Lan Mini Pcs' Specification
Specification	IBOX-301 Plus
Color	Blue + Grey
Processor	Intel Celeron J1900(Quad core quad threading,1.99G,TDP:10W)
RAM	Onboard DDR3L 1333 4GB RAM
Storage	1MSATA Slot,12.5" HDD
Display Chip	2*Intel 82583V/i211-AT 10/100/1000M LAN
Expansion Slot	1*PCI Slot(32bit)
	1*MINI PCIE Slot(Support WIFI/Bluetooth)
	1*MINI PCIE Slot(Support WIFI/Bluetooth/3G/4G Optional),Embedded SIM slot
	1*MINI PCIE Slot(Support MSATA)
Input Voltage	DC 9～36V wide voltage Input,Support positive pole and negative electrode connect reversely protection
Work Temp	0℃ ～ +50℃(Commercial HDD),-20℃ ～ +60℃
5% ～ 95% non-condensing
Dimension	185 * 175 * 100 mm【Not include the brackets】
Net Weight	2.5 kg【Not include the brackets】

2(1)

Learn more about IBOX-301Plus Model, a Fanless Industrial Computer J1900 Quad Core Embedded Dual Lan Mini Pc With Pci Express Slot welcome consult
