The Beloved Mini Computer

Dec 02, 2021

Cheap Ultra Low Power Thin Client Faness Ubuntu Oem 2 Ethernet j1900 Mini Pc X86 With 4Gb Ram For Windows 10

mini pc

Product Feature



1) Intel celeron J1900 quad core 2.0GHz

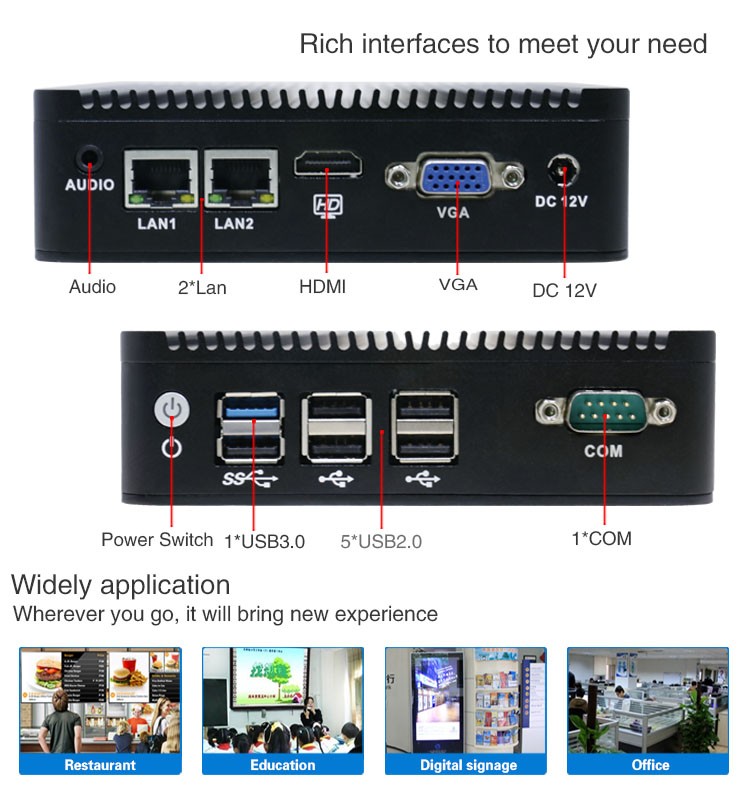

2) Support 1*VGA+1*HD+2*LAN+1*COM+5*USB2.0+1*USB3.0(2*COM,4USB optional)

3) AMI 32MB Flash ROM .support RPL/PXE diskless boot, wake on lanelectricity boot, WDT

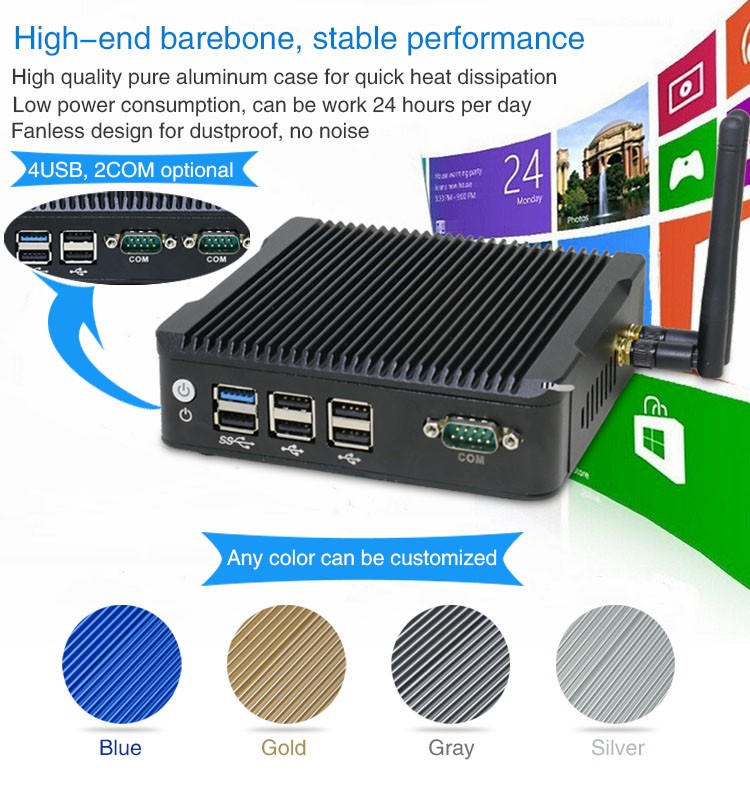

4) High-quality pure aluminum Case

5) 1*MSATA,1*mini-PCIE, support wifi and blue-tooth

6) 2*RTL8111E 1000M lan card, support wake on lan

7) DC-IN 12V power supply and AC power adapter

8) Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal,

    Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance

    Parking Pay Station, Channel System, Medical electronic etc

Product Display

 mini pcmini pcmini pcmini pc



Specifications



lastest Intel J1900 quad core faless mini pc with DDR3L 1600MHz RAM, 2 ethernet ports Nano computer support WIFI and Blue-tooth

Model

IBOX-501 N3

Case Color

Black(color can be customized)

Material

High-quality pure aluminum

CPU

Adopt Intel Celeron J1900 quad core 2.0GHz

Chipset

Adopt Intel express chipset

Mainboard

120*120mm mini itx mainboard

RAM

1*SO-DIMM DDR3 , Support Max 8G

Storage

1*MSata, 16G/32G/64G/128G/256G/512G SSD (optional 500~1T HDD )

Audio

Integrated Realtek ALC662 6sound channel

Display Interface

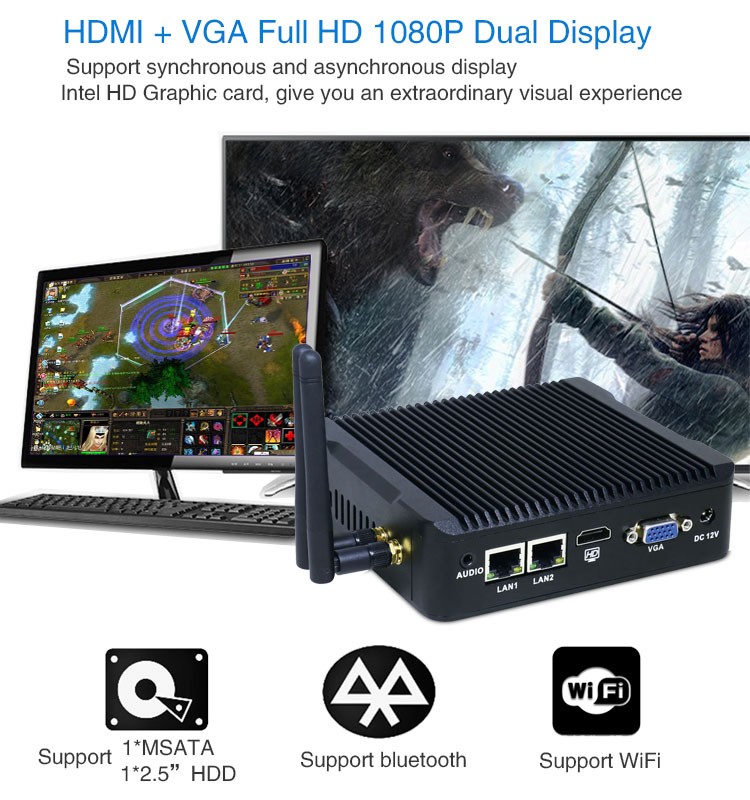

Support 1*VGA, 1*HD

Display

Integrated Intel HD Graphic card, support VGA, 1*HD, display input

I/O

USB

5*USB2.0, 1*USB3.0


COM

1*RS232 COM(2*COM optional)


WIFI Antenna

2


Lan

2*RJ45 lan


Audio


Network Card

2*RTL8111E 1000M lan, support wake on lan

Expansion

1*mini-PCIE, support Wifi and blue-tooth

Watch Dog Timer

Support

Power Supply

DC 12V-IN power supply and AC power adapter

Operating System

Windows 7/8/10, Linux

BIOS

AMI 64Mbit Flash ROM

Working Temperature

-10°C - 60°C

Working Humidity

0% - 95% relative humidity, Non-condensing

Size

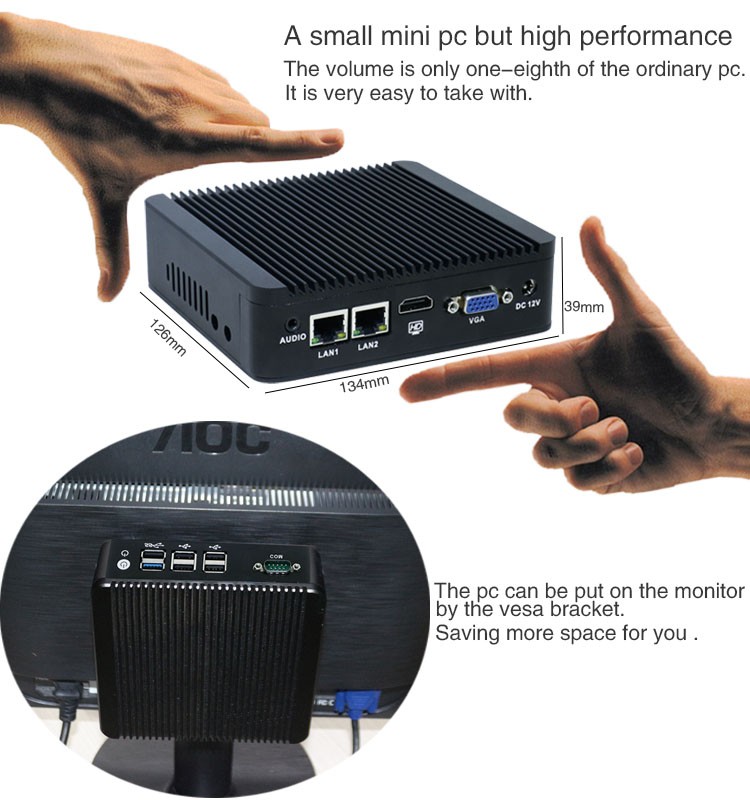

134*126*39 mm (W*D*H)

Weight

0.65kg

Packaging & Shipping



 1.Delivery      Time:  1 ~ 3 Days for one sample, 15 Working days for a large quantity.

 2.Packaging Ways:  Each pc for one neutral box, ten or sixteen neutral box for one carton.

 3.Shipping    Ways:  For small amount, we advise our customer to take DHL, Fedex, UPS.

                                       For a large quantity, we can support to ship by air or by sea.





 mini pc
