Specification | |

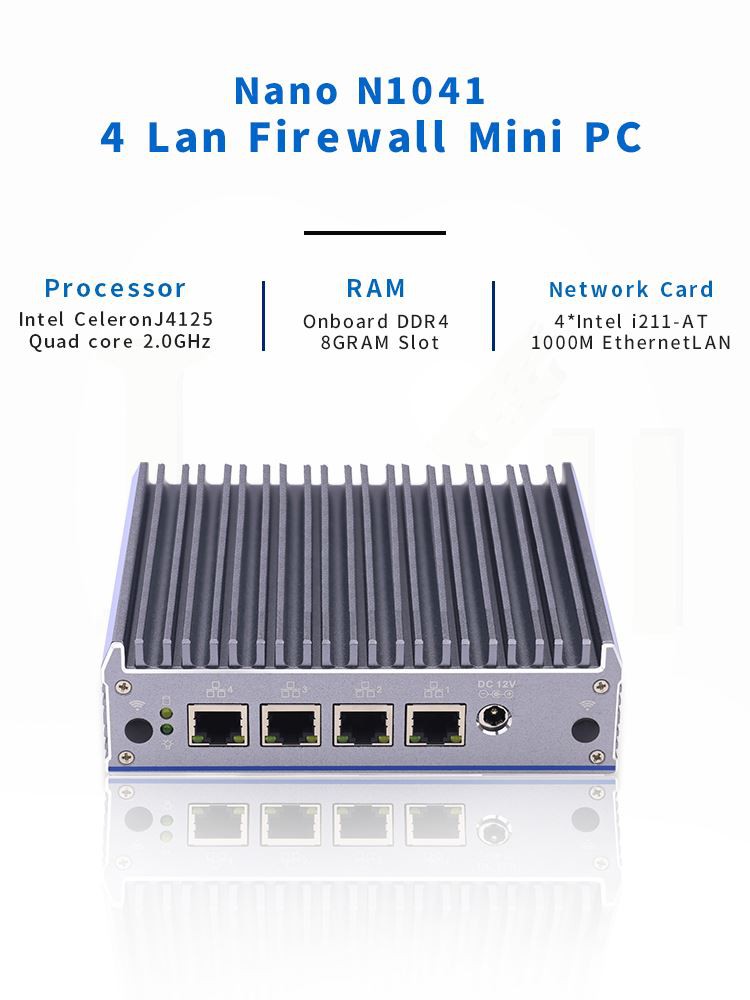

Model | Nano N1041 |
Color | Titanium gray (Color can be customized) |
Material | High-quality all aluminum，surface anodic oxidation |
Processor | Onboard Intel Celeron J4125（Quad core quad threading，4MB Cache，2.0GHz，pulse frequency 2.7GHz） |
CPU Architecture | Gemini Lake Refresh |
RAM | Support 1*DDR4 2400MHz SODIMM Memory Slot，Max. Support 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics 600 |
Display Port | 1*HDMI，1*DP（Support synchronous and asynchronous dual display，Max Resolution support 4096x2160 @ 60Hz） |
Front I/O | 1*Power Switch，1*DP，1*HDMI，4*USB3.0，1*SIM Slot |
1*RJ45 COM（Support console），1*Reset | |
Rear I/O | 1*DC，4*1000M LAN |
Expansion Slot | Support 1*M.2 2280 M-key Slot（Support SATA Protocol） |
Support1*M.2 2230 E-key Slot（Only support USB BT） | |
Support1*Mini PCIE Slot（4G Optional，External SIM slot：only support USB Wifi/BT） | |
Network | 4*Intel i211-AT 10/100/1000M Ethernet LAN |
Storage | 1*M.2 2280SSlot，1*2.5’’ HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot |
Work Temp | 0℃ - +50℃（Commercial HDD），-20℃ - +60℃（Industrial SSD），Surface air flow |
Work Humidity | 0% - 95% non-condensing |
Certificates | CE、 CCC、 FCC Class A、 ROHS |
Dimension | 144 * 126.5 * 42 mm |
Net Weight | 0.7 kg |
Application | Firewall, VPN, Network Server, Network Security, Router and etc. |
