J4125 Mini PC 4 Lan Fanless Computer
◇ No Noise, No Vibrations, No Dus: All aluminum structure，fanless design;
◇ Powerful Quad Cord Processor Small PC:J4125 ,4MB Cache，2.0GHz CPU;
◇ Applied in Firewall, Network Server:4*Intel i211-AT 10/100/1000M Ethernet LAN;

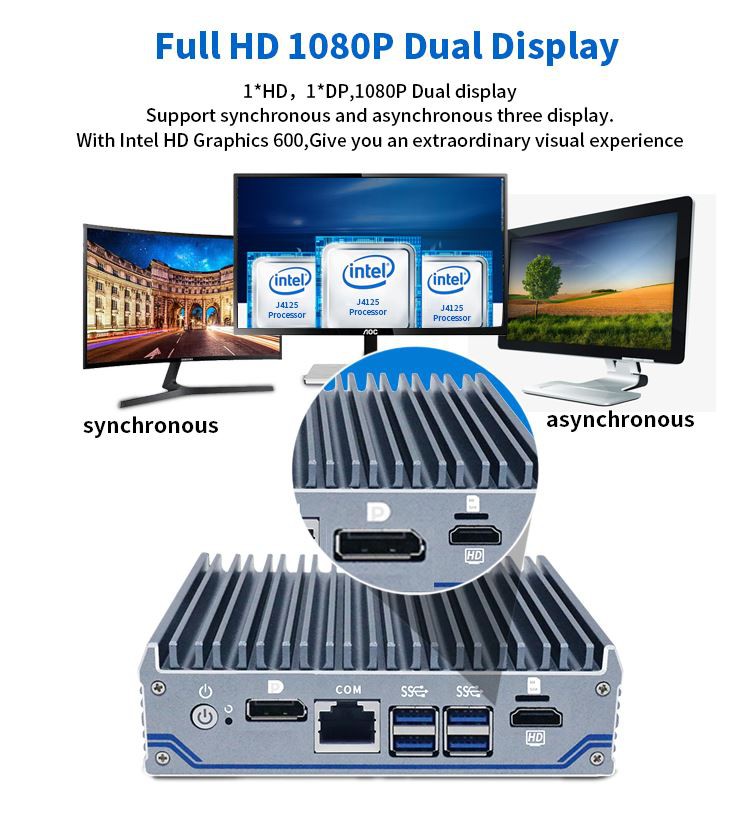

◇ Dual Display, Working Efficiently:1*HD，1*DP,Intel UHD Graphics 600;
◇ Special Features and Additional Services- supports Wake on LAN / PXE / Auto Power on;
◇ Small Size ,Space Saver:144 * 126.5 * 42 mm,with a VESA mount that can be perfectly fixed on the back of your monitors;
◇ High-quality after-sale services: provide for this small pc 3 years guarantee .;
◇ Support OS:
Send Inquiry
Product Details ofJ4125 Mini PC 4 Lan Fanless Computer
4 Lan Gateway J4125 Fanless Mini PC Support Linux
N1041 J4125 pfsense mini pc
1) Powerful Quad Cord Processor Small PC--In-tel Cele-ron J4125 Quad core quad threading 2.0GHz
2) Support1*DDR4 Max 8GB Ram Slot
3)1*Power Switch+1*HD+1*DP+1*SIM Card+4*USB3.0+1*DC+4*1000M LAN
4) Nuc Dimension: 115*107.5*39 mm
5) Support 4*In-tel i211-AT 10/100/1000M Ethernet LAN
6) Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot
7) Support 1*Mini PCIE Slot（4G/WIFI/BT Optional，Embedded SIM slot）
8) Applied in Router, VPN, Firewall, Network server etc .
4 Lan Gateway J4125 Fanless Mini PC Support Linuxs' Specification | |

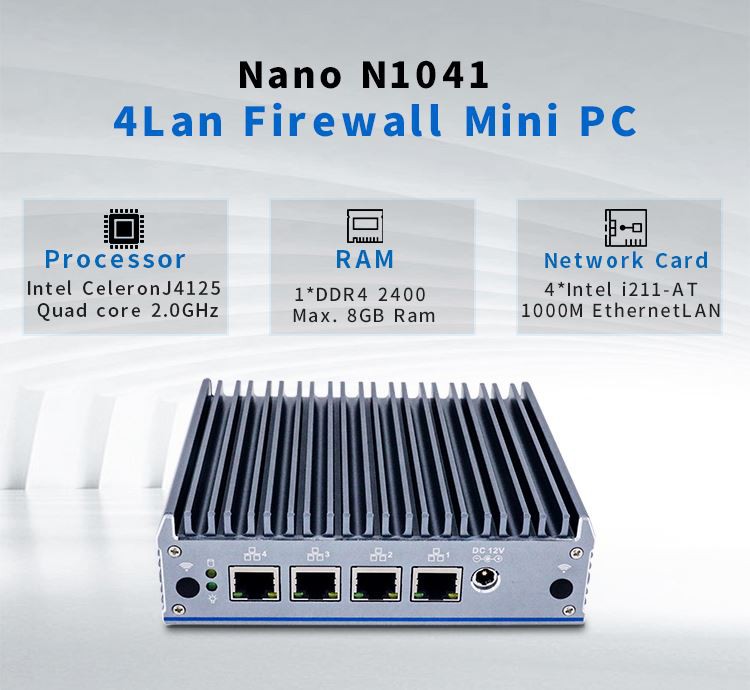

Model | Nano N1041 Micro Appliance Firewall |
Color | Titanium gray (Color can be customized) |
Material | All aluminum structure，fanless design |
Processor | Intel Celeron J4125 (Quad core quad threading, 4MB cache, 2.0GHz, Max turbo 2.7GHz) |
CPU Architecture | Gemini Lake Refresh |
RAM | Support 1*DDR4 2400MHz SODIMM RAM Slot, MAX 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics 600 |
Display Port | 1*HD，1*DP |

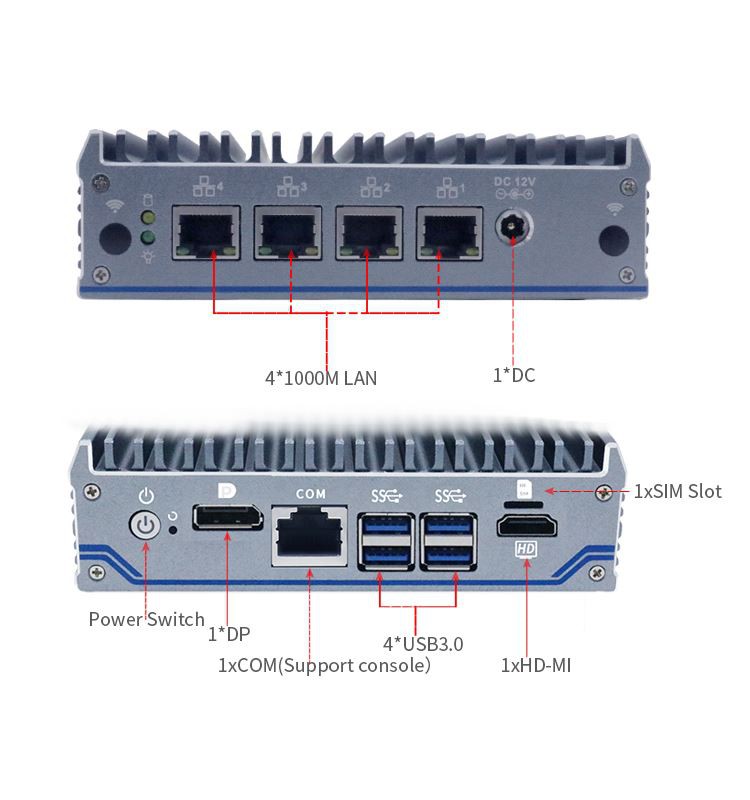

Front I/O | 1*Power Switch，1*DP，1*HDMI，4*USB3.0，1*SIM Slot, 1*RJ45 COM（Support console），1*Reset |
Rear I/O | 1*DC，4*1000M LAN |
Expansion Slot | 1*M.2 2280 M-key Slot（Support SATA Protocol） |
1*M.2 2230 E-key Slot（Only support USB BT） | |
1*Mini PCIE Slot（4G/WIFI/BT Optional，Embedded SIM slot） | |
1*Mini PCIE Slot（4G Optional，External SIM slot：only support USB Wifi/BT） | |
Network | 4*Intel i211-AT 10/100/1000M Ethernet LAN |
Storage | 1*M.2 2280SSlot，1*2.5" HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow |
Work Humidity | 0% ～ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |
Dimension | 144 * 126.5 * 42 mm |
We're professional 4 lan ports firewall micro appliance manufacturers ,Get micro appliance core at a bigger saving,For more intel celeron J4125 4 Port, Firewall Micro Appliance Mini PC ,- Intel quad Core, AES-NI, Barebone at iwillminipc.com.
