3865U I3 I5 Firewall Appliance 6 LAN

Model

N13

Color

Black (Color can be customized)

Material

High-quality all aluminum, surface anodic oxidation

Processor

Intel Celeron 3865U (dual core dual threading, 2MB third level cache, 1.8GHz)

Intel Core i3 7100U (dual core quad threading, 3MB third level cache, 2.4GHz)

Intel Core i5 7200U (dual core quad threading, 3MB third level cache, 2.5GHz, Max. turbo 3.1 GHz)

CPU Architecture

KabyLake-U

RAM

Support 2*DDR4 1866/2133 MHz SODIMM RAM Slot, Max. Support 32GB

Display Chip

Integrated Intel HD Graphics 610/620

Display Port

1*HDMI (NO Sound Output)

Front I/O

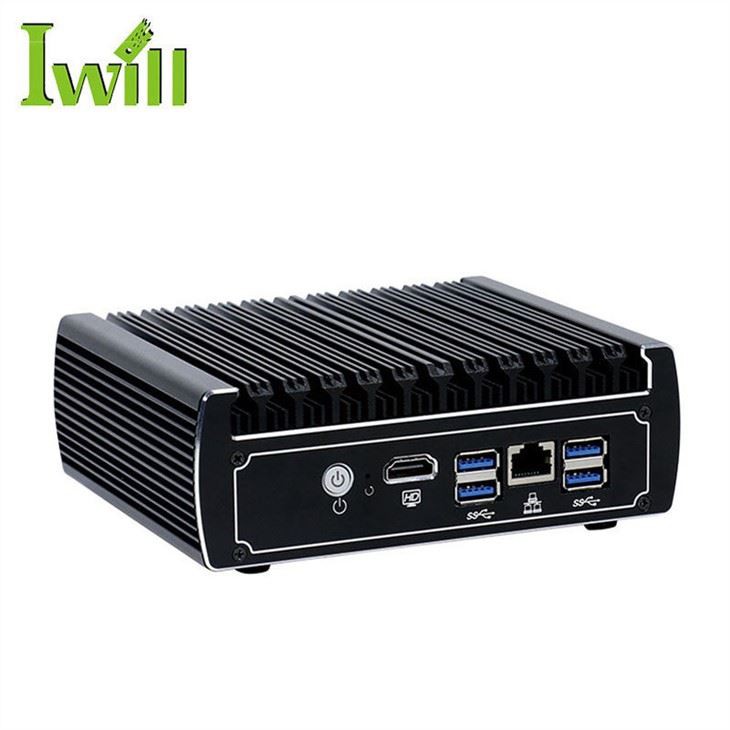

4*USB3.0, 1*Power Switch, 1*RJ45 COM (Support Console function),1*HDMI

Rear I/O

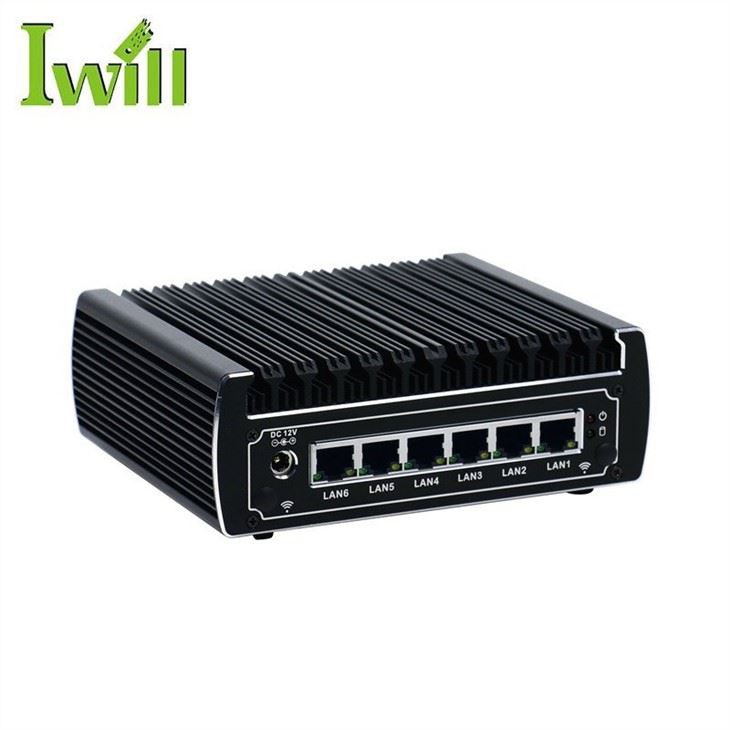

6*RJ45 LAN, 1*DC Input

Expansion Slot

Support 1*MINI PCIE Slot (WIFI/Bluetooth Optional)

Support 1*MINI PCIE Slot (Support MSATA)

Network

6*Intel 82583V 10/100/1000M LAN

Storage

1*MSATA Slot, 1*2.5" HDD

Input Voltage

Support DC 12V Input

Other Function

Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function)

Work Temp

0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +50℃ (Industrial SSD), Surface air flow

Work Humidity

0% ～ 95% non-condensing

Certificates

CE, CCC, FCC Class A, ROHS

Dimension

155 * 126.5 * 52.5mm

Net Weight

1.6kg

Application

Firewall, VPN, Network Server, Network Security, Router etc.
