Dual Ethernet Firewall Mini PC
◇ DDR3L 1600MHz Memory up to 8GB
◇ 1 Mini-PCIe（WIFI/Bluetooth Optional）,1 Mini-PCIe（Support MSATA）
◇ 2*Intel i211-AT 1000M LAN，4*USB2.0，1*DC Input,2*HDMI
◇ Auto power on 、 Timing boot、Wake on LAN、PXE boot
◇ Support OS:
Send Inquiry
Product Details ofDual Ethernet Firewall Mini PC

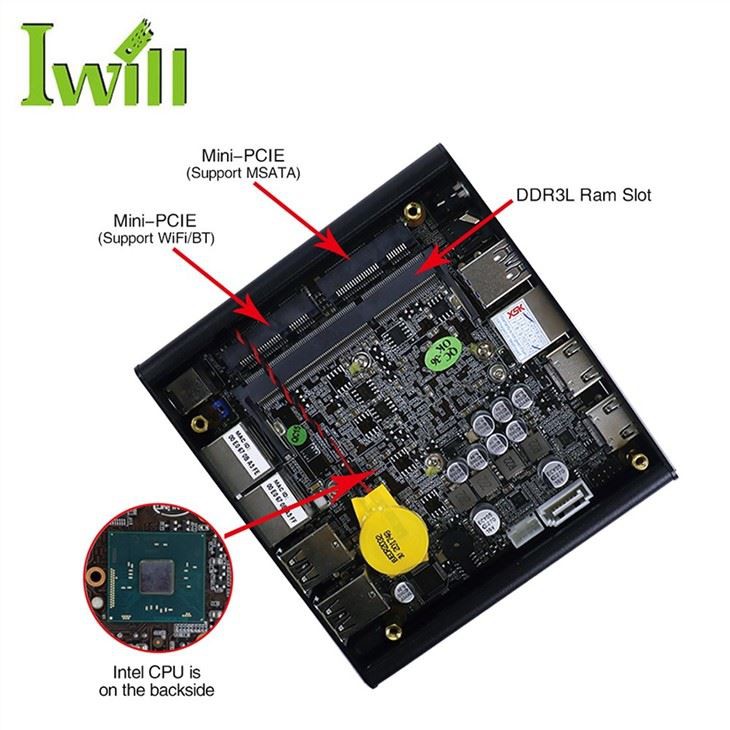

This Dual Ethernet Firewall Mini PC is powered by an Intel Celeron J3060 dual-core processor. With its compact size of 115 × 107.5 × 39 mm, it fits easily in one hand. Featuring a nano-size motherboard, the design is delicate, stylish, smaller, neater, and more user-friendly. It offers rich interfaces to support a wide range of external devices.

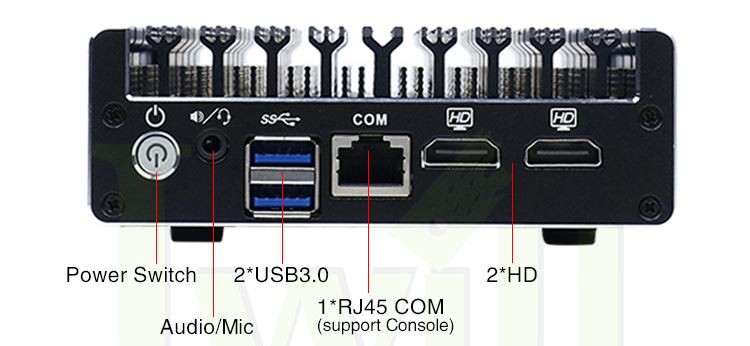

- Front panel: 1× Power Switch, 1× Audio (supports microphone and speaker simultaneously), 2× USB 3.0, 1× RJ45 COM (supports console function).
- Rear panel: 2× RJ45 LAN, 4× USB 2.0, 1× DC-IN 12V port.
| Model | NUC-C3 |
| Processor | Intel Celeron J3060 (dual core dual threads,1.6 GHz,Max turbo 2.48GHz) |
| RAM | 1*DDR3L RAM Slot up to 8GB |
| Storage | 1*MSATA |
| Display Chip | Intel HD Graphics |
| I/O | |
| USB | 2*USB3.0 ; 4*USB2.0 |
| LAN | 2*Intel i211-AT 1000M LAN |
| Display Port | 2*HDMI |
| COM | 1*RJ45 COM(Support Console Function) |
| Power Switch | 1 |
| Input Voltage | 1*DC-IN 12V |
| Audio | 1(Support Mic and Speaker at the same time) |
| Expansion | 1*MINI PCIE Slot (WIFI/Bluetooth Optional); 1*MINI PCIE Slot(Support MSATA) |
| Work Temp | 0℃ ～ +50℃,-20℃ ～ +50℃ |
| Work Humi | 5% ～ 95% |
| Dimension | 115 * 107.5 * 39mm |
Does this J3060 Dual Ethernet Firewall Micro PC support Wake-on-LAN or PXE boot?
At Iwill, all of our mini PCs support auto power-on when power is connected, scheduled boot, Wake-on-LAN, PXE boot, and watchdog timer functions. For customers who require these features, we will confirm and record the request before production, so please make sure to communicate with us in advance. Note: barebone systems do not include these functions by default.
Wake-on-LAN is a standard feature that allows a computer system to be powered on remotely from anywhere in the world via a network message. To use this function, it must first be enabled in the BIOS and then configured in the operating system.
Where Can I Buy a Dual LAN Firewall Mini PC?
You can purchase a dual LAN firewall appliance from Iwill. We have over 15 years of experience in manufacturing network firewall hardware and offer a wide range of multi-LAN mini PCs compatible with pfSense, which can be customized to meet your project requirements.
If you're interested in a Firewall Mini PC with dual LAN ports, feel free to contact us - we have many options to choose from.
Professional Sales Representative: Jessie Wang
Email: jessie@iwilltech.cn
