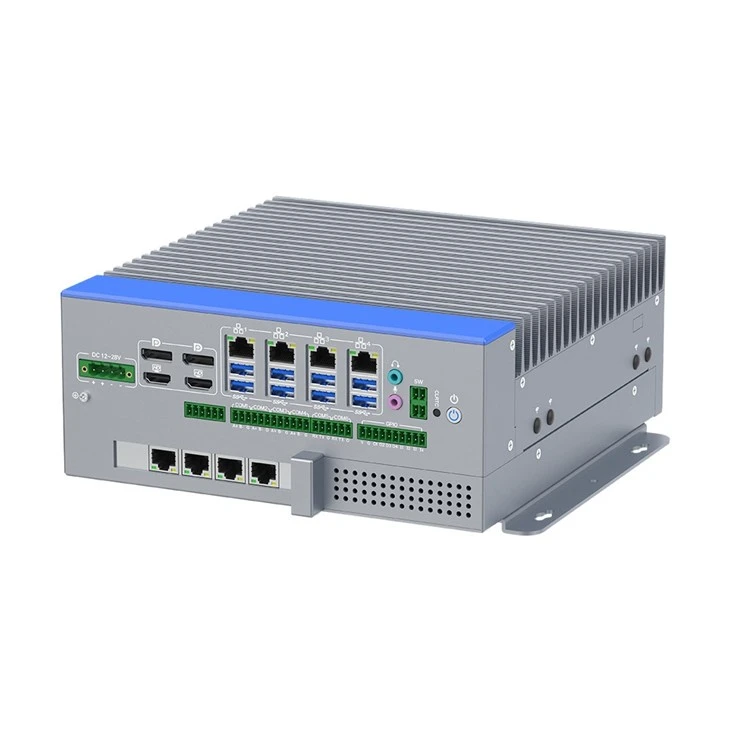

1×PCIe X16 Slot Embedded System
12th–14th Gen Core processors combined with DDR5 4800 memory
4×Intel Gigabit LAN + i219-LM with vPro for out-of-band management
Industrial-grade storage: 2×M.2 NVMe + 2×2.5-inch drive bays
Wide operating temperature from -20°C to +60°C (industrial SSD)
8×USB 3.0, 6×COM (RS485/RS232) and optional 8×GPIO for control systems
Send Inquiry
Product Details of1×PCIe X16 Slot Embedded System
Space-Saving Design with Core Expansion
IBOX-718C packs one PCIe X16 slot into a compact chassis, supporting high-performance add-ons like GPU cards or specialized frame grabbers. This makes it suitable for applications where installation space is limited but expansion is still required.
Comprehensive Network and Display Integration
Dual HDMI and dual DP ports enable four independent 4K displays for control room dashboards. 4×Intel Gigabit LAN with vPro support allow secure remote management and network redundancy for surveillance or SCADA systems.
Durable Storage and Peripheral Support
The system includes 2×M.2 NVMe slots and 2×2.5-inch drive bays, supporting RAID configurations for data redundancy. Optional 8×GPIO and 4×USB 2.0 expand connectivity for custom industrial controllers or sensor arrays.
paramenters of iBOX-718 series
| products |
 |
| Model number | IBOX-718C |
|
weight (Excluding wall mount) |
4.45kg |
| Dimension | 230 × 253 × 96 mm |
| Expansion Slot | 1×PCIe X16 slot |
| procrssor | Intel 12th/13th/14th Gen (Alder Lake-S / Raptor Lake-S desktop processors), LGA1700 |
| Memory | 2× DDR5 4800 , up to 64 GB. |
| Storage | 2×M.2 2280 M-key slots (PCIe 4.0 X4 NVMe) |
| Input Voltage | DC 12–28V input, 4-pin Phoenix connector, 5.08mm pitch |
| COM |
6 ×COM (1-4 RS485, COM5-6 RS232 ) |
| uSB | 8 ×USB 3.0 |
| Display Chip | 2×HD-MI,2×DP |
FAQ
01.What processors are compatible with IBOX-718C?
IBOX-718C supports Intel 12th, 13th, and 14th Gen Core desktop processors (LGA1700), including i3-12300T, i5-12500T, i7-12700T, i3-13100T, i5-13500T, i7-13700T, i5-14500T, and i7-14700T, all paired with Intel Q670 or W680 chipsets.
02.How many PCIe expansion slots does it have?
It offers 1× PCIe X16 slot, supporting add-on cards up to 215mm × 21mm × 112mm. This makes it suitable for GPU accelerators, frame grabbers, or high-speed network adapters.
03.What are the memory and storage configurations?
The system features 2× DDR5 4800 SODIMM slots (up to 64GB) and 2× M.2 2280 NVMe slots (PCIe 4.0 X4), plus optional 2× 2.5-inch drive bays for additional HDD/SSD expansion.
04.Does IBOX-718C support wide voltage input?
Yes, it accepts DC 12–28V wide voltage input via dual Phoenix terminals (4P + 2P), ensuring stable operation in industrial environments with unstable power supplies.
05.What networking and remote management features are included?
It has 4× Intel Gigabit LAN ports (3× i210/i211-AT + 1× i219-LM), with the i219-LM supporting Intel vPro for out-of-band remote management and BIOS-level recovery.
06.What operating systems are compatible?
IBOX-718C supports Windows 8, Windows 10, Windows 11, and Linux distributions (Ubuntu, Debian, CentOS), with full driver support for industrial and embedded applications.
