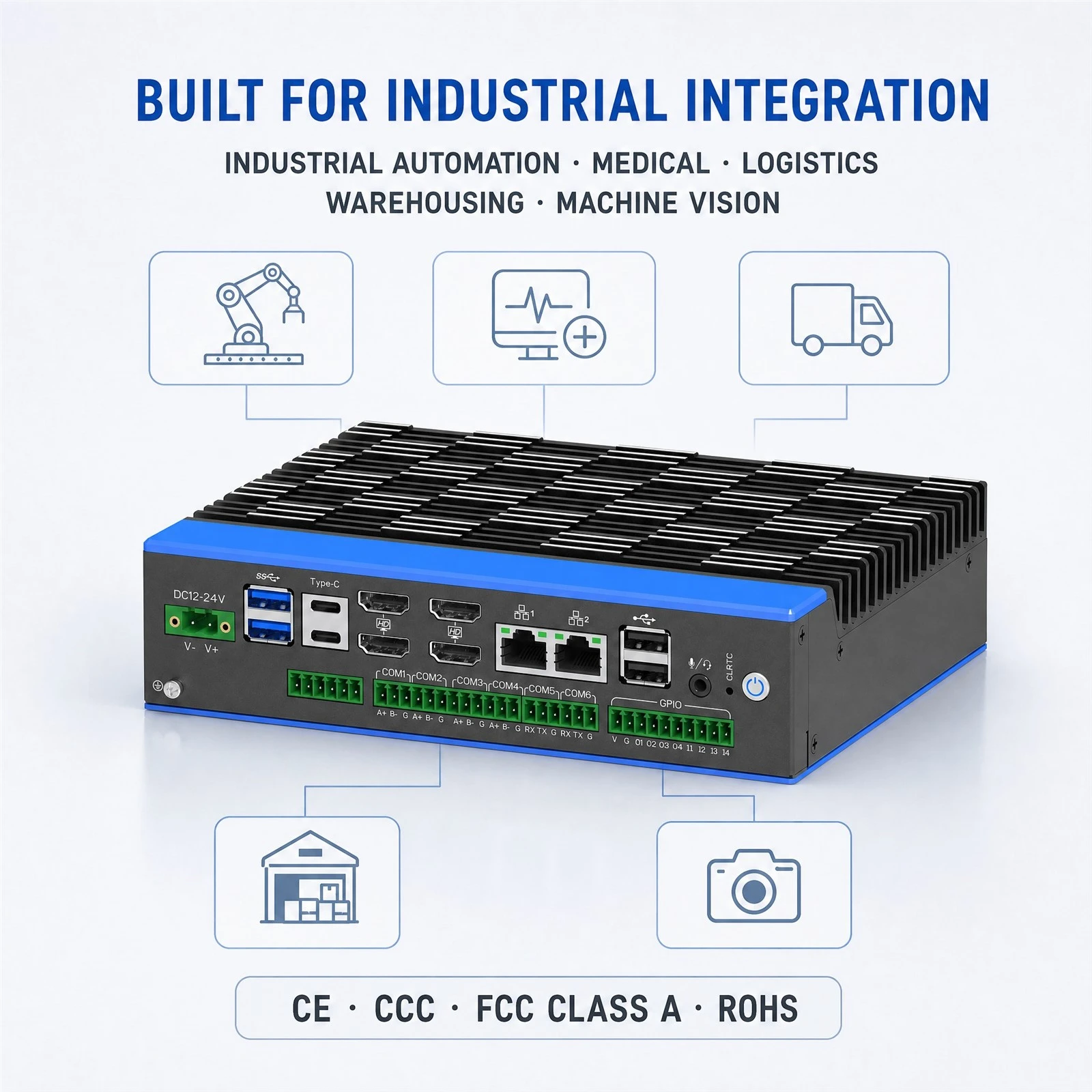

Industrial Automation Computer With Intel Ultra 5 125U 4-Display

The IBOX-3426-A Powered by a board-mounted Intel® Core™ Ultra 5 125U processor, the computer supports 12 cores, 14 threads, 12MB cache and up to 4.3 GHz turbo frequency. The platform also integrates Intel® AI Boost and Intel® Graphics.

Connect More Industrial Devices
The six COM-port design supports different serial communication requirements. COM1 to COM4 are RS485 interfaces, while COM5 and COM6 are RS232 interfaces. The isolated GPIO section provides four inputs and four outputs and supports 9-24V wide voltage

The six COM-port design supports different serial communication requirements. COM1 to COM4 are RS485 interfaces, while COM5 and COM6 are RS232 interfaces. The isolated GPIO section provides four inputs and four outputs and supports 9-24V wide voltage.

For display and monitoring tasks, the computer offers four HD-MI ports and two full-function Type-C ports. The platform supports synchronous or asynchronous four-display output with a maximum resolution of 4096 × 2160 @ 60Hz.

The IBOX-3426-A supports two M.2 2280 M-key slots, one M.2 2230 E-key slot, two MINI PCIE slots and two Nano-SIM sockets. The optional 2.5-inch drive bay can be supported with the optional 2.5-inch baseboard.

The system accepts DC 12V-24V wide voltage input through a 2P 5.08mm Phoenix terminal. It also supports network wake-up, UEFI PXE boot, power-on, scheduled power-on, TPM2.0 security encryption and a 0-255 level watchdog.

The enclosure measures 190 × 136 × 48 mm without wall-mount brackets and weighs 1.49 kg including wall-mount brackets.
