Ultra-Thin Industrial Mini PC With Intel Core Ultra 5 125U

Space-Saving Computing for Industrial Equipment

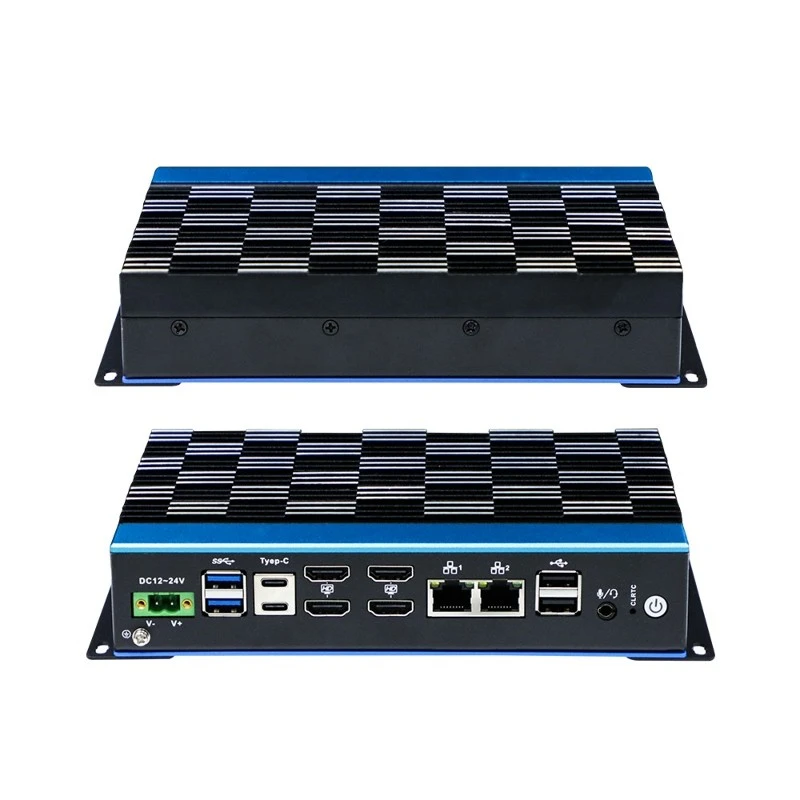

When installation space is limited, the IBOX-3426-B provides a compact 39.5 mm industrial computer platform for equipment integration. Its aluminum alloy and sheet metal chassis uses an active cooling design and maintains a slim form factor.

The board-mounted Intel® Core™ Ultra 5 125U processor features 12 cores, 14 threads, 12MB cache and up to 4.3 GHz turbo frequency. The platform also includes Intel® AI Boost and integrated Intel® Graphics.

The computer is equipped with four HD-MI high-definition interfaces and two full-function Type-C ports. It supports synchronous or asynchronous four-display output with resolutions up to 4096 × 2160 @ 60Hz.

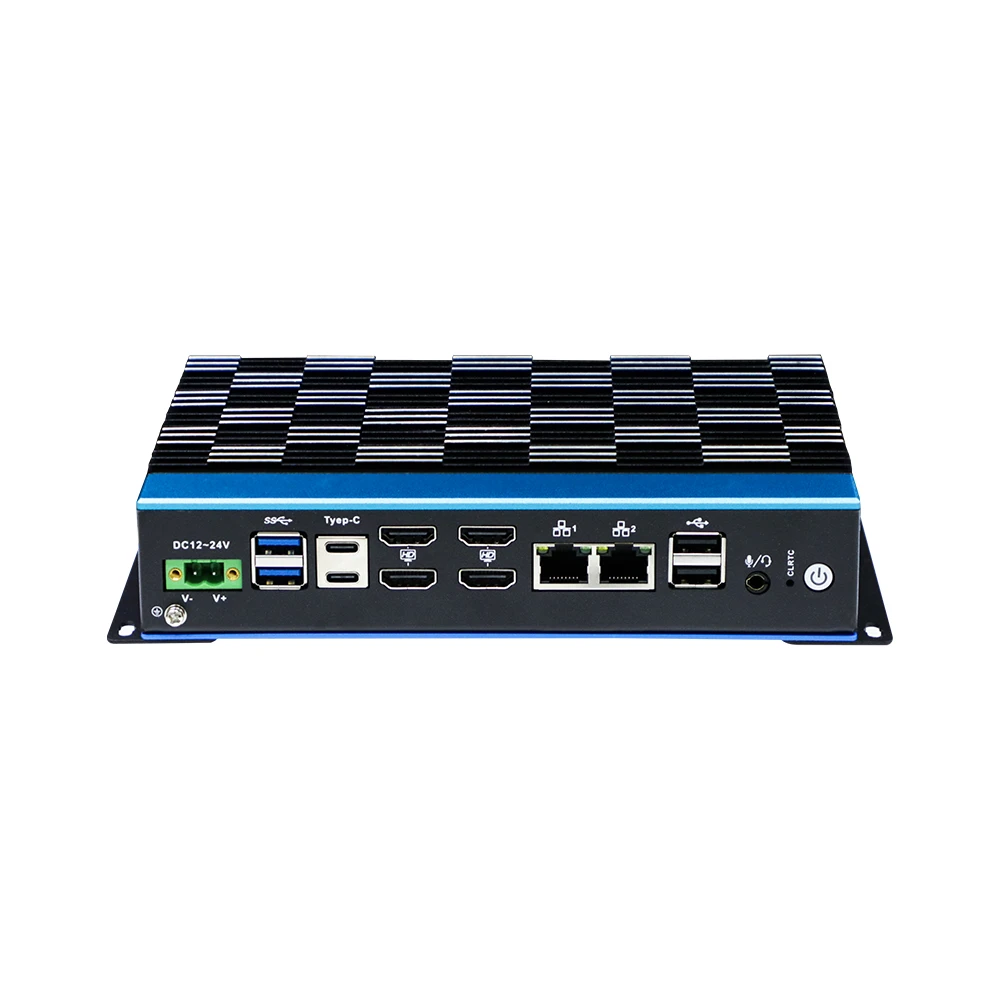

For networked industrial equipment, IBOX-3426-B provides two Intel 2.5G LAN ports. A third 2.5G LAN port can be selected according to the required configuration. The front panel also includes two USB 3.1 ports and two USB 2.0 ports.

The system supports two M.2 2280 M-key slots, one M.2 2230 E-key slot, two MINI PCIE slots and two Nano-SIM sockets. These interfaces allow equipment builders to plan storage and communication functions according to project requirements.

Additional platform functions include UEFI PXE boot, network wake-up, power-on, scheduled power-on, TPM2.0 security encryption and a watchdog with levels from 0 to 255.

The computer measures 190 × 136 × 39.5 mm excluding wall-mount brackets and weighs 1.46 kg including wall-mount brackets. It uses DC 12V-24V wide voltage input.
