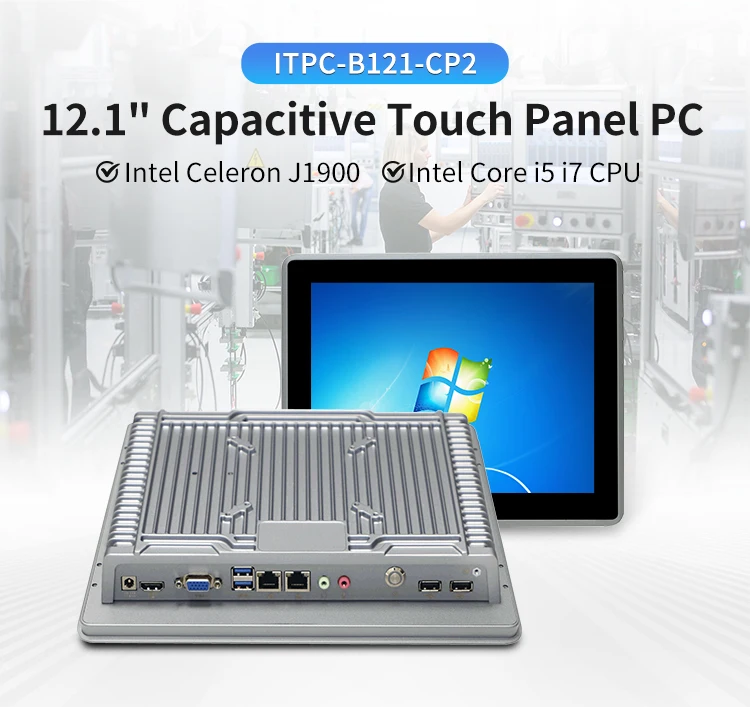

This 12.1-inch Fanless Industrial Panel Pc features a TFT-LCD display with a 4:3 aspect ratio, 1024×768 resolution, and high brightness (500 cd/m²). It includes a durable multi-point capacitive touchscreen rated for over 50 million operations, seamlessly fitted with the LCD. The device is equipped with 1x 8Ω2W speaker (customizable for wide voltage input: DC 9–36V) and supports a DC 12V power supply (9–36V wide voltage optional). Designed for harsh environments, it operates in temperatures from 0°C to +50°C and humidity levels of 5%–95% (non-condensing). With compact dimensions (298 × 237 × 48 mm) and a weight of 2.4 kg, it is ideal for industrial automation, medical, logistics, transportation, warehousing, and e-education applications.

12.1-inch fanless industrial panel pc

Model	ITPC-B121-CP2
Processor	Intel Celeron J1900【 Quad Core,1.99GHz 】
Processor	4/5th Gen Intel Core i5/i7(The specific model is subject to shipment)
Chipset	Intel CPU Integrated Chip
Memory	Support 1DDR3L 1333/1600, MAX: 8GB ; 4/5th Gen i5/i7：support 2DDR3L 1333/1600 memory slot,Max. 16GB
Screen size	12.1Inch TFT-LCD
Screen Ratio	4：3
Resolution	1024 * 768
Brightness	500 cd/m²
Touch Screen	Multi-point capacitive touch screen, life can reach more than 50 million times; Fit with LCD screen;

Hardware & Environmental Specifications

Touch Display: 12.1″ XGA (1024×768) industrial-grade resistive multitouch, 350 cd/m² brightness, designed for glove/stylus input.
Processor Options: Intel Whiskey Lake U-series (e.g. i3/i5), and optional low-power Intel Celeron.
Storage & Memory: Supports up to 16 GB DDR4 RAM, with optional SSD/mSATA storage.
Connectivity: RS‑232 ports x2, USB3.0 ports, dual LAN, audio I/O.
Power Requirements: 15 W typical usage; supports 9–36 V DC power input (AC/DC optional).
Rugged Design: Full-aluminum, fanless chassis; IP65-rated front panel; operates from –20 °C to +60 °C; EMC ruggedness IEC 61000‑6‑2/-6‑4; shock/vibration tested.
Security Features: Optional TPM 2.0, Wake-on-LAN, BIOS password lock.

Application Scenarios

Factory automation – attach to sensors/PLCs for status and control interfaces.
Kiosks & POS – compact, vandal-resistant touch interface.
Vehicle and outdoor use – IP65 rating for dust/water protection.
Field service & SCADA terminals – silent, low-power, rugged operation.

If you are interested in our 12.1 Inch Fanless Industrial Panel Pc, contact us get more details of industrial computer.
