Specification | |

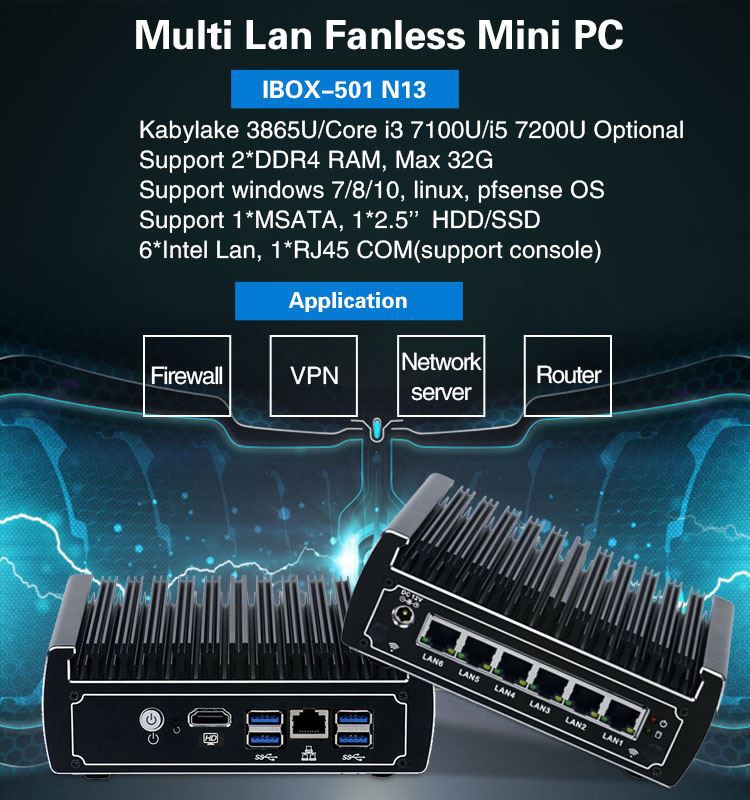

Model | N13 |
Color | Black (Color can be customized) |

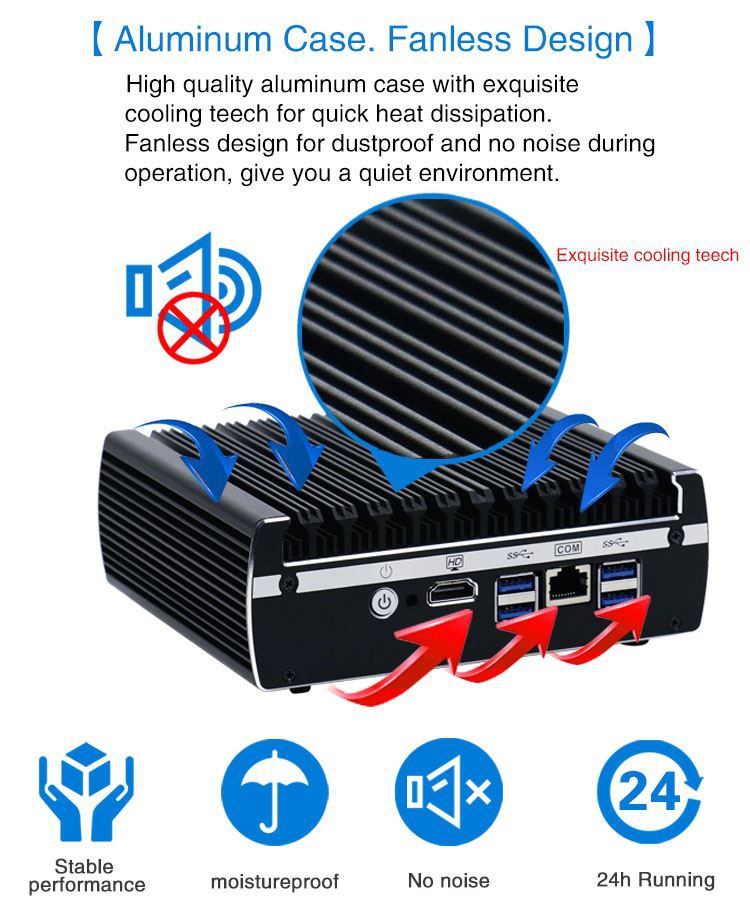

Material | High-quality all aluminum，surface anodic oxidation |
Processor | Intel Celeron 3865U (dual core dual threading，2MB third level cache，1.8GHz) |
Intel Core i3 7100U (dual core quad threading，3MB third level cache，2.4GHz) | |
Intel Core i5 7200U (dual core quad threading，3MB third level cache，2.5GHz，Max. turbo 3.1 GHz) | |
CPU Architecture | KabyLake-U |

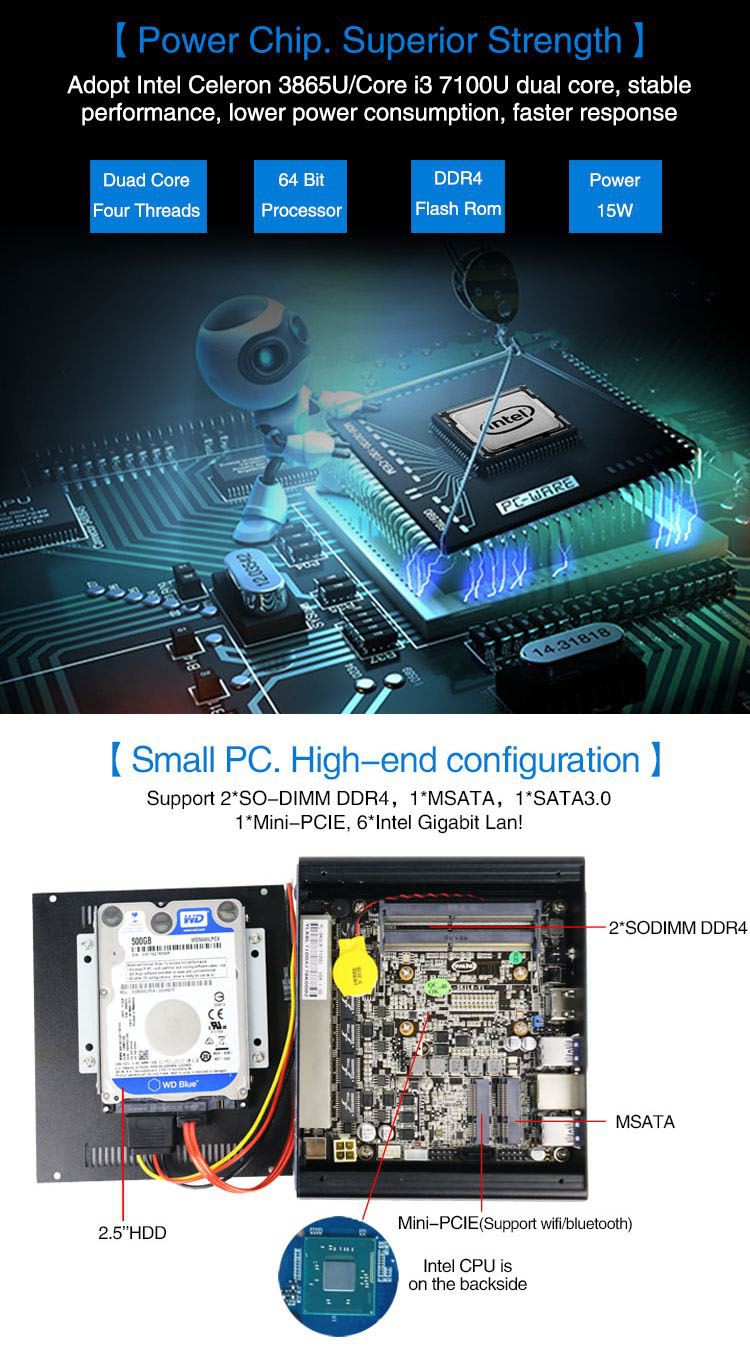

RAM | Support 2*DDR4 1866/2133 MHz SODIMM RAM Slot，Max. Support 32GB |
Display Chip | Integrated Intel HD Graphics 610/620 |
Display Port | 1*HDMI（NO Sound Output） |
Front I/O | 4*USB3.0，1*Power Switch，1*RJ45 COM（Support Console function）,1*HDMI |
Rear I/O | 6*RJ45 LAN, 1*DC Input |
Expansion Slot | Support 1*MINI PCIE Slot（WIFI/Bluetooth Optional） |
Support 1*MINI PCIE Slot（Support MSATA） | |
Network | 6*Intel 82583V 10/100/1000M LAN |
Storage | 1*MSATA Slot，1*2.5”HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
Work Humidity | 0% ～ 95% non-condensing |
Certificates | CE、 CCC、 FCC Class A、 ROHS |

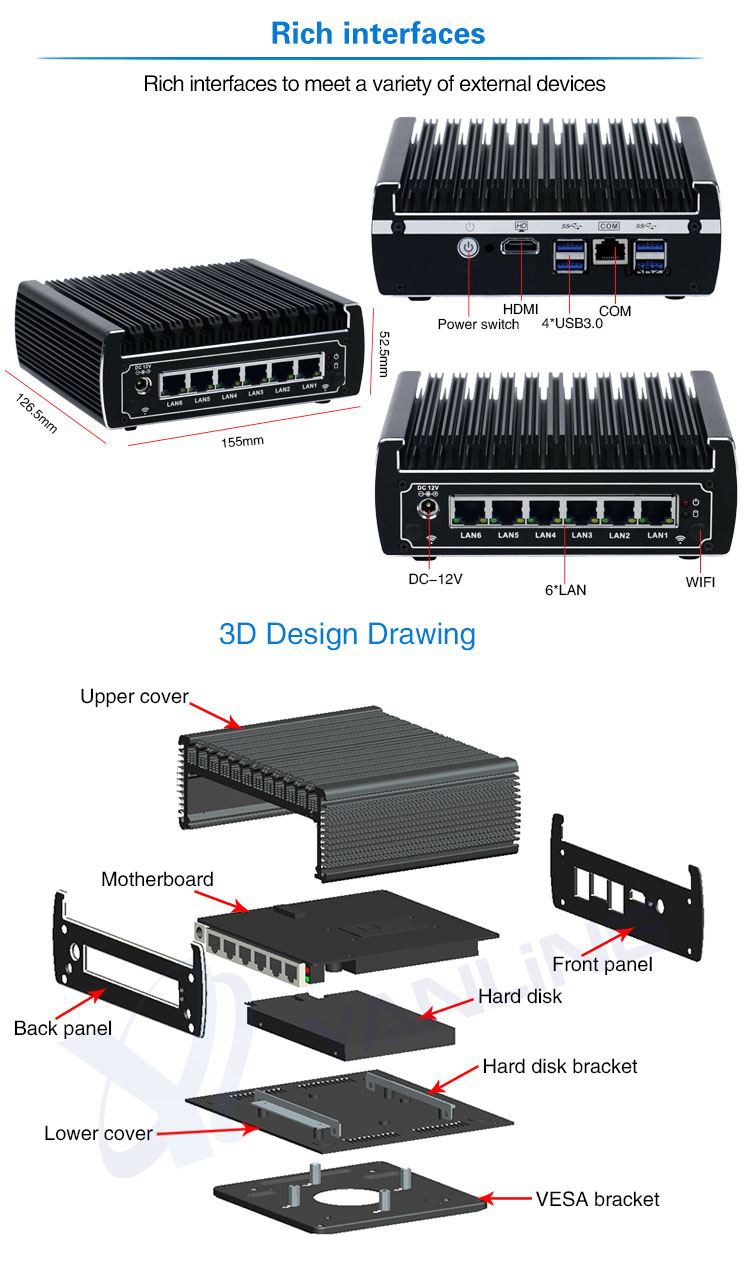

Dimension | 155 * 126.5 * 52.5mm |
Net Weight | 1.6kg |
Application | Firewall，VPN，Network Server，Network Security，Router etc. |
Specification | |
Model | IBOX-501 N18 |
Color | Black (Color can be customized) |
Material | High-quality all aluminum，Surface anodic oxidation |
Processor | Onboard Intel Celeron 3867U（Dual core, dual threads，1.8G，2MB Cache）； |
Ondoard Intel Core i5 8250U（quad core,8 threads,1.6G，Max.Turbo 3.4G,6MB Cache）； | |
Onboard Intel Core i7 8550U（quad core,8 threads, 1.8G，Max.Turbo 4.0G,8MB Cache） | |
RAM | Support 2* DDR4 2133/2400 MHz SODIMM RAM slot，Max. 32 GB |
Display Chip | Integrated Intel UHD Graphics 620 |
Display Port | 1* HDMI（No sound output） |
Front I/O | 4*USB3.0，1*Power Switch，1*RJ45 COM（Support Console）,1* HDMI |
Rear I/O | 6*RJ45 1000M Lan, 1*DC |
Expansion | Support 1* half height MINI PCIE slot（WIFI/BT Optional） |
Support 1* Full height MINI PCIE slot（Suooport MSATA/4G，1* Nano-SIM slot on the plate） | |
Network | 6*Intel i211-AT 10/100/1000M LAN |
Storage | 1*MSATA slot，1*2.5” HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level） |
Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（（Industrial SSD），Surface air flow |
Work Humidity | 0% ～ 95% non-condensing |
Certificates | CE、 CCC、 FCC Class A、 ROHS |
Dimension | 186 * 126.5 * 66 mm |
Net Weight | 1.3 kg |
Application | Firewall，VPN，Network server，Network security，Router etc. |
