What are the characteristics of N3

Dec 24, 2021

Specification

Model

Nano N3

Color

Black (Color can be customized)

Material

High-quality all aluminum,surface anodic oxidation

Processor

Onboard Intel Celeron J1900(Quad core quad threading,2MB Second Level Cache 1.99GHz, pulse frequency 2.42GHz)

Onboard Intel Pentium N3540(Quad core quad threading,2MB cache,2..16GHz,pulse frequency 2.66GHz)

Chipset

J1900 or N3540(Single Chip)

RAM

Support 1*DDR3L 1333/1600MHz SODIMMRAM slot,Max. Support 8GB

BIOS

AMI UEFI BIOS

Display Chip

Integrated Intel HD Graphics

Display Port

1*VGA,1*HDMI(Support synchronous and asynchronous dual display)

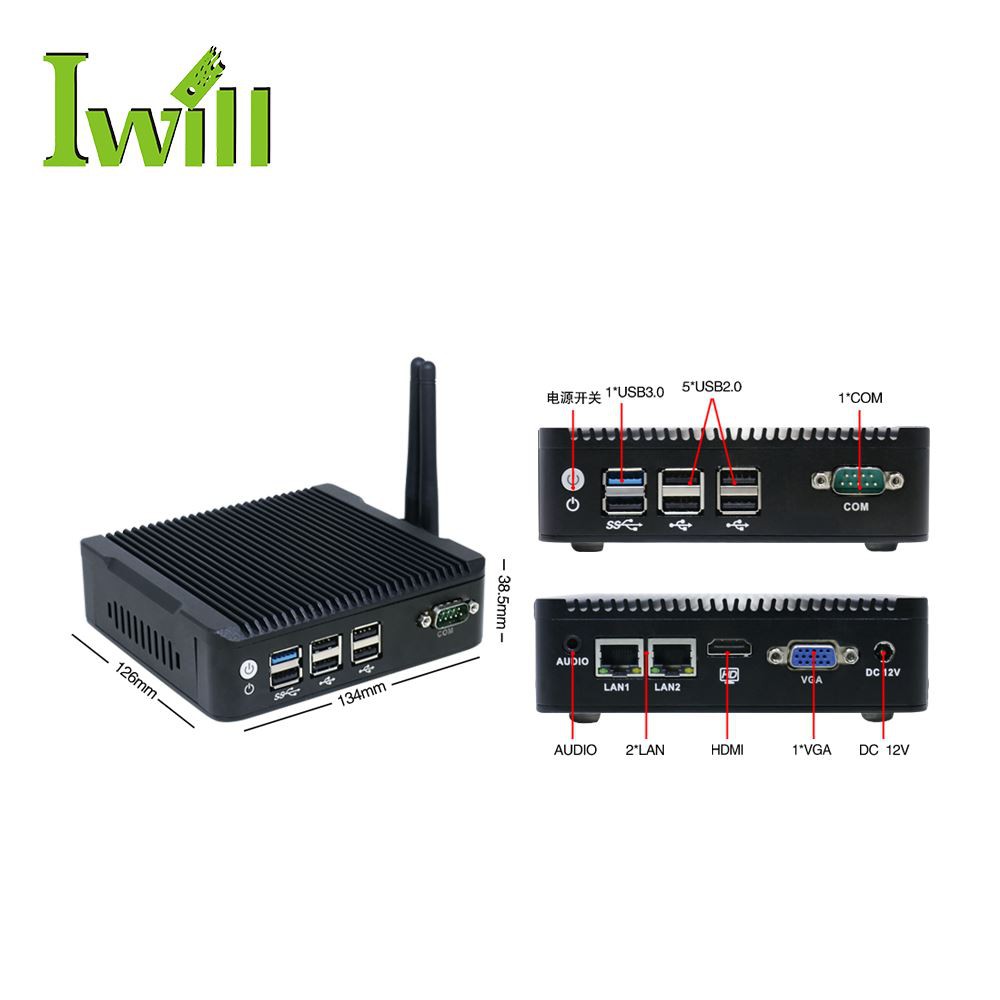

Front I/O

1*Power Switch,1*USB3.0,5*USB2.0,1*RS232 COM

Rear I/O

1*Audio,2*RJ45 LAN,1*VGA,1*HDMI,1*DC Input

Expansion Slot

Support 1*MINI PCIE Slot(WIFI and Bluetooth Optional)

Support 1*MINI PCIE Slot(Support MSATA)

Network

2*10/100/1000M RTL8111E 1000M LAN

Storage

1*MSATA,1*2.5” HDD

Input Voltage

Support DC 12V Input

Other Function

Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog(0~255 level)

Work Temp

0℃ ~ +50℃(Commercial HDD),-20℃ ~ +50℃(Industrial SSD),Surface air flow

Work Humidity

5% ~ 95% non-condensing

Certificates

CE、 CCC、 FCC Class A、 ROHS

Dimension

134 * 126 * 38.5 mm

Net Weight

0.7kg

Application

Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.
