15 Inch Fanless Touch Panel Pc
◇ Die cast aluminum alloy moluding,fanless design;
◇ Onboard Intel Whiskey Lake U series processor;
◇Support 9V ～ 36V wide voltage Input, and TPM2.0 security encryption;
◇ Support TPM2.0,Windows 11;
◇ Support 2*RS232/422/485 COM,6*COM Optional;
◇ Support 2*Intel lans,4*Intel lans Optional;
◇ IP65 full flat front panel;
◇ Applied OS:
Send Inquiry
Product Details of15 Inch Fanless Touch Panel Pc

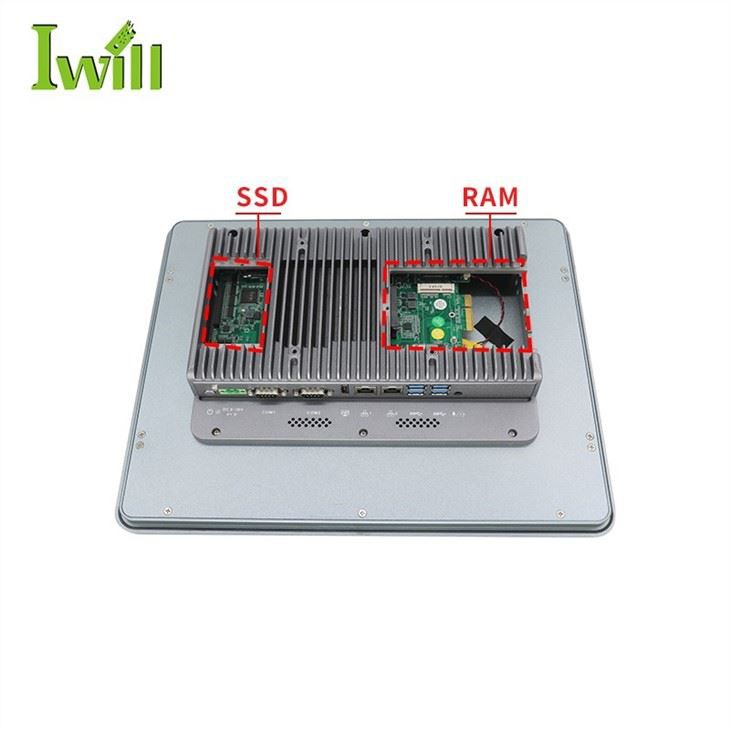

ITPC-A500 intel core i7 8565U 15 inch fanless touch panel pc support win 11, The appearance is the same as A116 and A600 but the size is different.
Size：15 inch TFT-LCD;
Brightness:350 cd/m2;
Viewing Angle:Full Angl;
Ratio:4:3;
Resolution:1024 * 768;
Industrial grade multi-touch resistance touch screen,Life Time: more than 50000 Thousand Times;
|
Model |
ITPC-A500 |
|
Processor |
Intel Celeron 4205U(Dual core dual threads,1.8Ghz,2MB Cache); |
| Intel Celeron J6412 (Quad core quad threads, 2.0GHz, Max turbo 2.6GHz) | |
| Intel Core i3-10110U (Dual core 4 threads, 2.1G, Max.Turbo 4.1G, 4MB Cache) | |
|
Intel Core i5-8260U (Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache) |
|
|
Intel Core i7-8565U(Quad core eight threads,1.8Ghz,Max turbo 4.6Ghz,8MB Cache); |
|
|
RAM |
Support 1*DDR4 2133/2400 RAM Slot,Max. 32GB |
|
Storage |
1*M.2 2280 slot(SATA Protocol),1*2.5" HDD,Support RAID 0/1 |
|
Input Voltage |
DC 9V ～36V wide voltage Input |
|
Dimension |
366 * 290*60 mm |
|
Weight |
3.9 kg |
|
Embedded Installation |
355 * 279 mm |
1.SMT: We have 4 SMT lines which can produce 80K pcs motherboards every month.
2.Assembling Line: Our workshop have three workshop line for assembling which we assemble the corresponding case , MB, RAM, SSD, WiFi etc.
3.Testing Line and QC: Our testing line will pre-load the OS , test every port and every function of the machine. QC team will check the appearance of the chassis before we packaged.
4.Aging Test Room: We build the aging test room which comply a strict safety and quality standard. All of our product will need to be done the aging test (CPU and GPU 100% percent running) 24 hours before we delivered.
5.Laser Engraving: We have two laser engraving machine which used for engraving customer's LOGO , I/O port signs and customized icon.
6.CNC Workshop: Our CNC workshop has 5 CNC machine which is mainly used for milling our chassis (it is a very important production process of chassis ).
7.Lab: There are vibration test machine, programing H&L temp test chamber, ESD test machine in our Lab. We will make exhaustive test for every our newly developed product.
8.R&D Team: We have one professional and experienced R&D team which focus on the developing of new product and customer's customized product.
9. Warehouse: We have three warehouse which respectively used for semi-finished product, finished product and other accessory .
We have the all in one pc bracket, if you needthe bracket , please contact us.
