Embedded D2550 1u Free VPN Server 6 Intel 82583V
◇ 1U 19" Rack Mount Network Security;
◇ Support 6th 7th Desktop Core i3 or i5 or i7 CPU;

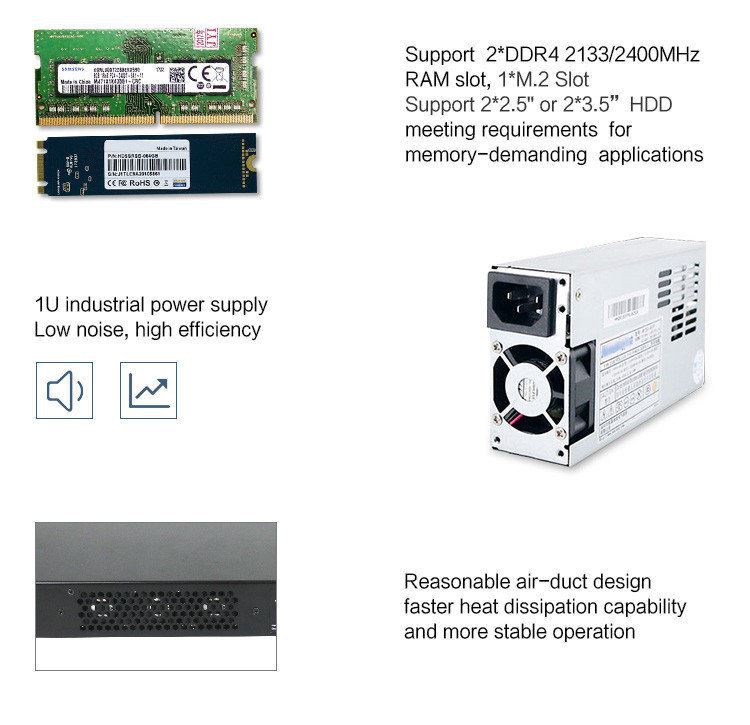

◇ Support 2* DDR4 2133 or 2400 32G;
◇ Support 1*M.2, 2*2.5 or 3.5 inchs SATA;
◇ Support 2*PCI-E X8 Slot;
◇ Support 8*Intel 1000M Lan;
◇ Applied OS:
Send Inquiry
Product Details of Embedded D2550 1u Free VPN Server 6 Intel 82583V
Product Introduction
We attempt for excellence and hope to be the top cooperation team and dominator company for personnel, suppliers and customers, realizes price share and continual marketing for industrial pc lte, industrial touchscreen pc, industrial pc high performance. We are guided by market demand to meet the needs of profit-related parties and are our driving force. We believe that only by clarifying the mission of the company can we set clear and appropriate development goals. We solidly promote enterprise management and establish an efficient safety management system.

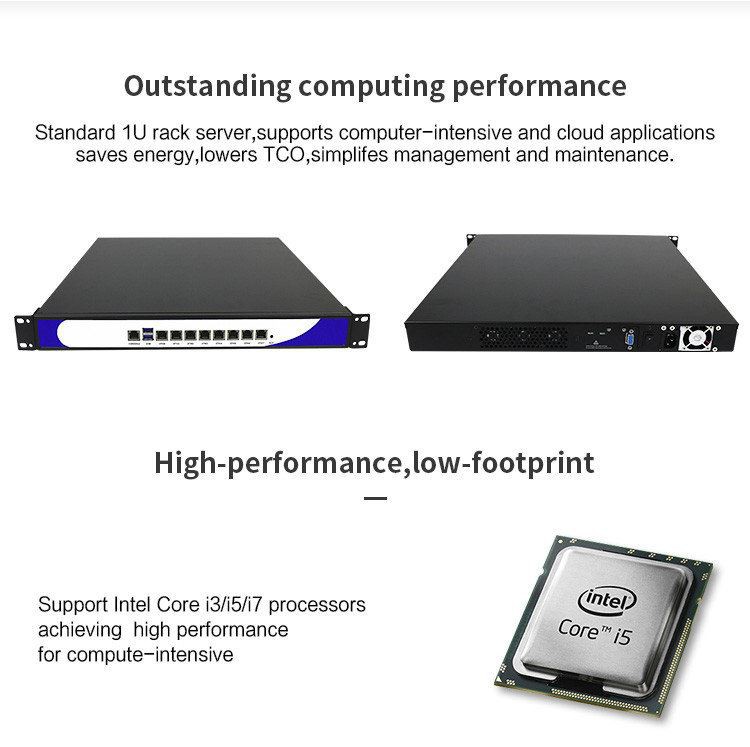

19 Inch Rack Mount Server
1U 19 inch Rack Mount Network Security Server equipped 6th 7th 8th Desktop Core i3 i5 i7 CPU , 4 Cores 4 threads or 6 Cores 12 threads optional, integrated Intel C236 Chipset , Support 2 DDR4 2133/2400MHz SODIMM ram ,Max 32 GB,stroge capacity support one M.2 and two2.5 inch or 3.5 inch SATA, network port support eight intel gigabit lan.aApplied in network security, Security storage, Industrial and telecommunications grade servers, IoT edge intelligent solutions and services,vehicle network security solution.
|
Specification |
|
|
Model |
NS-1U8L (C236) |
|
Color |
Black |
|
Material |
High Quality Steel |
|
Processor |
Intel Core i3-8100T(Quad Core,4 thread, 3.1 GHz) |
|
Intel Core i5-8500T(6 Core,6 thread, 2.1 GHz,Turbo boost to 3.5 GHz) |
|
|
Intel Core i7-8700T(6 Core, 12 thread, 2.4 GHz,Turbo boost to 4.0 GHz) |
|
|
Chipset |
Intel C236 |
|
Memory |
Support 2*DDR4 2133/2400MHz SODIMM Ram, Max 32 GB |
|
Display Port |
1*VGA (1*HD-M-I can be expand) |
|
Front I/O |
1*RJ45 COM (support console function), 2*USB3.0, 8*intel Gbe Lan |
|
Front I/O |
1*VGA, 1*power SW, 1*AC input port |
|
Expansion |
Support 2*PCI-E X8 (4*1000M Lan or 4*1000M SFP) |
|
Support 1*M.2 Slot (Support 2260/2280) |
|
|
Support 1*MINI PCIE (WIFI/BT/3G/4G is optional) |
|
|
Network Port |
8* Intel i211-AT 1000M Lan |
|
Storage |
Support 1*M.2 2280 |
|
Support 2*2.5/3.5 inchs SATA |
|
|
Input |
110～240V/50～60Hz AC Input |
|
Working Temp |
-10℃ ～ +50℃ |
|
Humidity |
5% ～ 95% Non-condensing |
|
Size |
482 * 501 * 44.5mm |
|
Weight |
7.2 kg |
|
Application |
Firewall, VPN, Network Server, Network Security, Router etc. |
What size is a 1U rack mount server?
1.75″ by 19″
Servers come in sizes of: 1U, 2U, and 4U. While server sizes may differ slightly depending on the make and model, a 1U server typically occupies a dimension of 1.75″ by 19″ of rack space. There are also 2U and 4U servers, which offer more computing power but take up more space on the rack.
To be a result of ours specialty and service consciousness, our enterprise has won an excellent status between buyers all around the globe for Embedded D2550 1u Free VPN Server 6 Intel 82583V. Our company has been growing gradually, expanding its business scope and maintaining excellent development performance. The company adheres to the spirit of people-oriented, caring for employees, advocating learning, and respecting talents. Welcome people of insight to join us.
