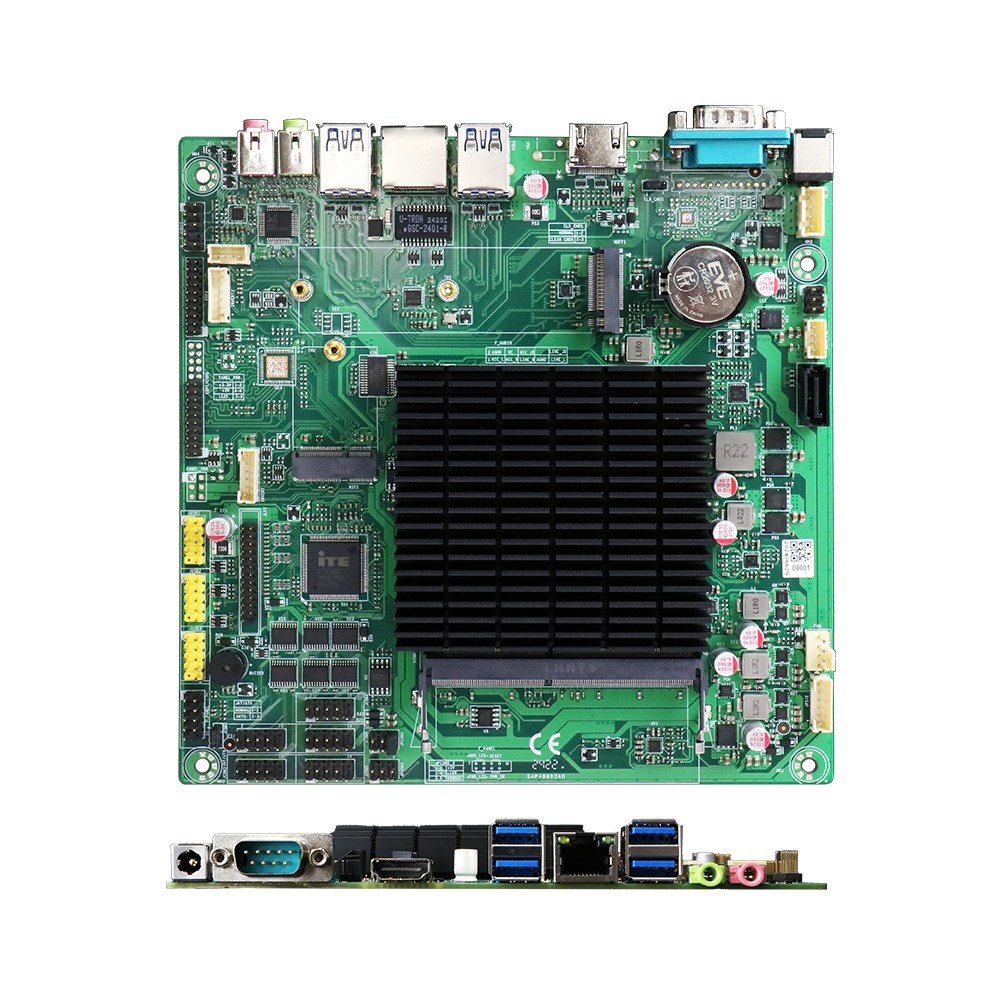

N5095 Mini Itx Motherboard HM-N5095D16
• Adopt Intel® Jasper Lake processor
• 1 × DDR4 2933MHz SO-DIMM Ram, max 16GB
• VGA, LVDS, HDM support triple display
• 6 ×COM, 1 ×LPT, 1 ×PS/2
• Support watchdog, network wake-up and diskless boot.
• Suitable for retail, self-service, all-in-one machine and industrial control industries
Send Inquiry
Product Details ofN5095 Mini Itx Motherboard HM-N5095D16
◆Adopt Intel® Jasper Lake processor
◆Intel® UHD Graphics
◆1 × DDR4 2933MHz SO-DIMM Ram, max 16GB
◆4 ×USB3.0, 6 ×USB2.0
◆6 ×COM, 1 ×LPT, 1 ×PS/2
◆1 × RJ45 LAN (RTL8111H PCIe bus network card chip), 1 × Mini-PCIe
◆1 × MSATA, 1 ×SATA
◆Support watchdog, network wake-up and diskless boot.
◆Suitable for retail, self-service, all-in-one machine and industrial control industries
H-JSL01
| CPU | Onboard Intel Jasperlake 4-core N5095 2.0~2.7GHz CPU 15W 4 MB L3 Cache |
| Chipset | Intel Jasperlake SOC integrated |
| Display controller | Intel CPU integrated UHD display controller |
| Display interface | support triple display: VGA/HD +LVDS/Edp+EDP VGA maximum resolution 1920x1200@60Hz;HD maximum resolution 4096x2160@30Hz eDP maximum resolution 1920*1080@ 60Hz;LVDS optimal resolution: 1920*1080 |
| Memory | 1xDDR4 SODIMM memory slot, up to 16GB |
| Storage | 1xSATA3.0, 1xM.2 2242/2280 interface supports SSD with SATA/NVME protocol |
| Audio | Rear IO supports Mic-in, Line-out, supports chassis front panel audio, supports dual-channel 2W/8Ω, 3W/4Ω power output |
| Network | 1xRJ45 Gigabit Ethernet port RTL8111H |
| USB | Rear IO: 4 x USB3.0 (double-layer USB 3.0 Type-A) Onboard: 3 x 2*5N9Pin Header, expansion 6*USB2.0 |
| Parallel port/I²C/ | SMBus 1 LPT parallel port |
| Serial port | 6 RS232 serial ports COM2&COM3 support Pin9 5/12V power supply |
| Expansion bus | 1 M.2 KEY-M (SATA/PCIE X2 adaptive) 1 M.2 KEY-E (PCIE X1+USB2.0 signal) |
| Other ports | 1 PS/2 1*6PIN Wafer, 1 JCASH cash box interface (with HY cash box board) |
| Temperature & Humidity | Storage temperature and humidity: -20~75℃ 10%~90%, non-condensing Working temperature and humidity: 0~60℃ 10%~90%, non-condensing |
| Operating system | Windows 7/8/10, Server 2008/2012, Linux |
| BIOS | AMI UEFI BIOS |
| Special functions | support watchdog, diskless boot, network wake-up, power on, timed boot |
| Power supply | DC 12V |
| PCB size | 170mm*170mm(L*W) |
| Model | CPU | LVDS | EDP | HD | VGA | LAN | USB | COM | M.2 | MINI-PCIE | |
| 3.0 | 2.0 | ||||||||||
| Hm-N5095D12-H2E | N5095 |
/
|
2
|
1 | / | 1 | 4 | 6 | 2 | 2 | / |
| Hm-N5095D12-HLE | N5095 |
|
1
|
/ | 1 | 4 | 6 | 2 | 2 | / | |
| Hm-N5095D12-V2E | N5095 |
/
|
2 | / | 1 | 1 | 4 | 6 | 2 | 2 | / |
| Hm-N5095D12-VLE | N5095 | 1 | 1 | / | 1 | 1 | 4 | 6 | 2 | 2 | / |
| Hm-N5095D16-H2E | N5095 |
/
|
2 | 1 | / | 1 | 4 | 6 | 6 | 2 | / |
| Hm-N5095D16-HLE | N5095 | 1 | 1 | 1 | / | 1 | 4 | 6 | 6 | 2 | / |
| Hm-N5095D16-V2E | N5095 |
/
|
2 | / | 1 | 1 | 4 | 6 | 6 | 2 | / |
| Hm-N5095D16-VLE |
N5095
|
1 | 1 | / | 1 | 1 | 4 | 6 | 6 | 2 | / |
