Fanless Celeron J4125 Industrial Computer
◇ All aluminum structure，fanless design；
◇Onboard Intel Celeron J4125 Quad Core processor；
◇ Support 2*Intel i211-AT 1000M LAN；
◇ Support 1*M.2 Slot,1*Mini PCIE Slot；
◇ Support WIFI/3G/4G (Three choose one)
◇ Support 6*COM,COM1 Support RS485；
◇ Support OS：
Send Inquiry
Product Details ofFanless Celeron J4125 Industrial Computer
IBOX-1026 is low power fanless Celeron J4125 industrial computer，It support Windows 10、Linux ，Support 2*Intel i211-AT 1000M LAN；Support 1*M.2 Slot,1*Mini PCIE Slot；Support WIFI/3G/4G (Three choose one);Support 6*COM,COM1 Support RS485；very convenient to use.
The whole machine adopts aluminum alloy mold forming, simple structure, with good dustproof, heat dissipation, anti-vibration and EMC performance, high reliability, strong environmental applicability.
Product Feature
Features:
1. All aluminum structure,fanless design;
2.Onboard Intel Celeron J4125 Quad Core processor;
3. Support 2*Intel i211-AT 1000M LAN;
4. Support 1*M.2 Slot,1*Mini PCIE Slot;
5. Support WIFI/3G/4G (Three choose one)
6. Support 6*COM,COM1 Support RS485;
7. Support OS:

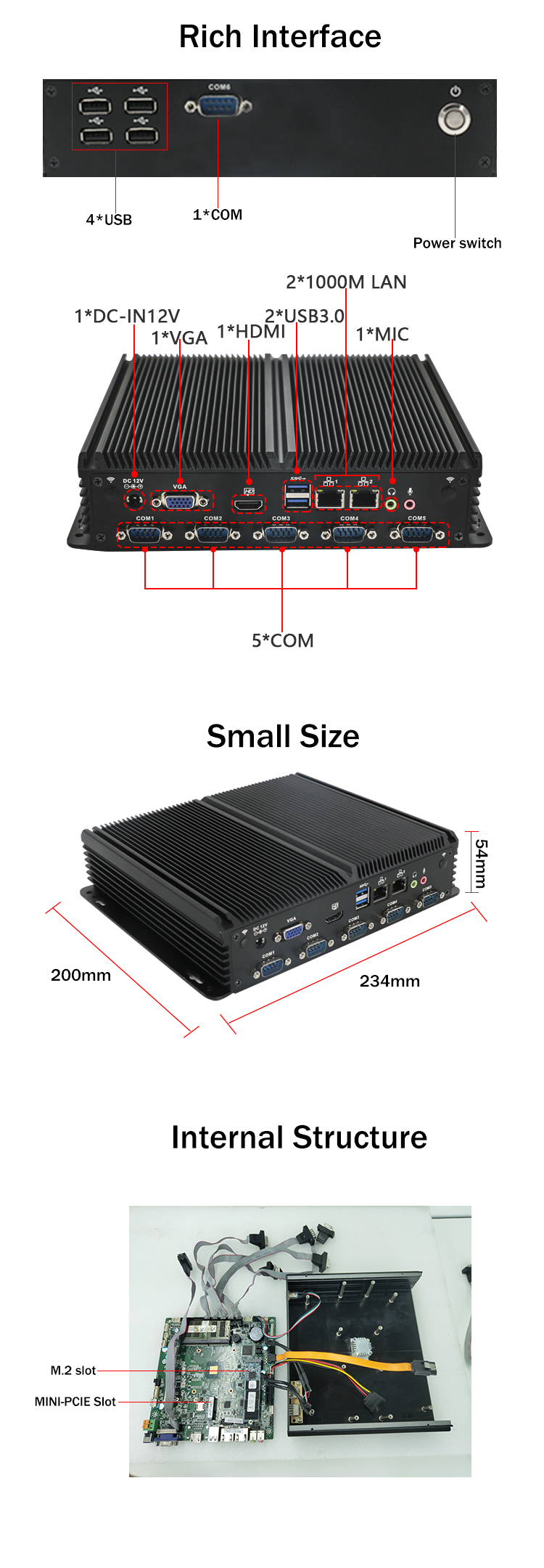

Product Display
| fanless Celeron J4125 industrial computer | |
Model | IBOX-1026 |
Color | Black（Color can be customized） |
Material | High-quality all aluminum，surface anodic oxidation |

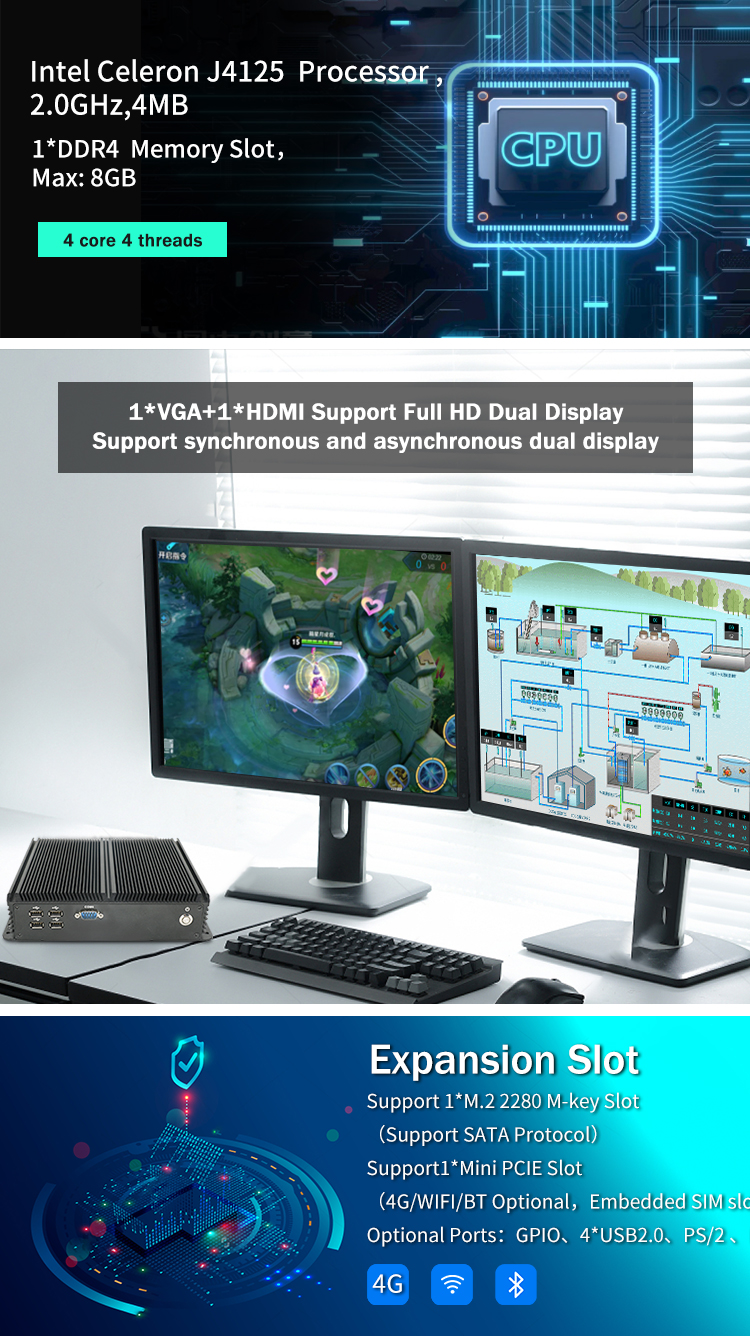

Processor | Onboard Intel Celeron J4125（Quad core quad threading，4MB Cache，2.0GHz，turbo 2.7GHz） |
CPU Architecture | Gemini Lake Refresh |
RAM | Support 1*DDR4 2400MHz SODIMM Memory Slot，Max. Support 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel UHD Graphics 600 |
Display Port | 1*HDMI,1*VGA（Support synchronous and asynchronous dual display,Max Resolution support 4096x2160 @ 30Hz） |
Front I/O | 4*USB2.0，1*Power Switch,1*COM |
Rear I/O | 1*DC,1*VGA,1*HDMI, 2*USB3.0， 2*1000M LAN, 1*MIC,1*SPK |
5*COM | |
Expansion Slot | Support 1*M.2 2280 M-key Slot（Support SATA Protocol） |
Support1*Mini PCIE Slot（4G/WIFI/BT Optional，Embedded SIM slot） | |
Optional Ports：GPIO、4*USB2.0、PS/2 、LPT | |
Network | 2*Intel I211-AT 10/100/1000M Ethernet LAN |
Storage | 1*M.2 2280 Slot，1*2.5’’ HDD |
Input Voltage | DC 12V Input |
If you are interested in our fanless Celeron J4125 industrial computer, contact us of our industrial computer.
