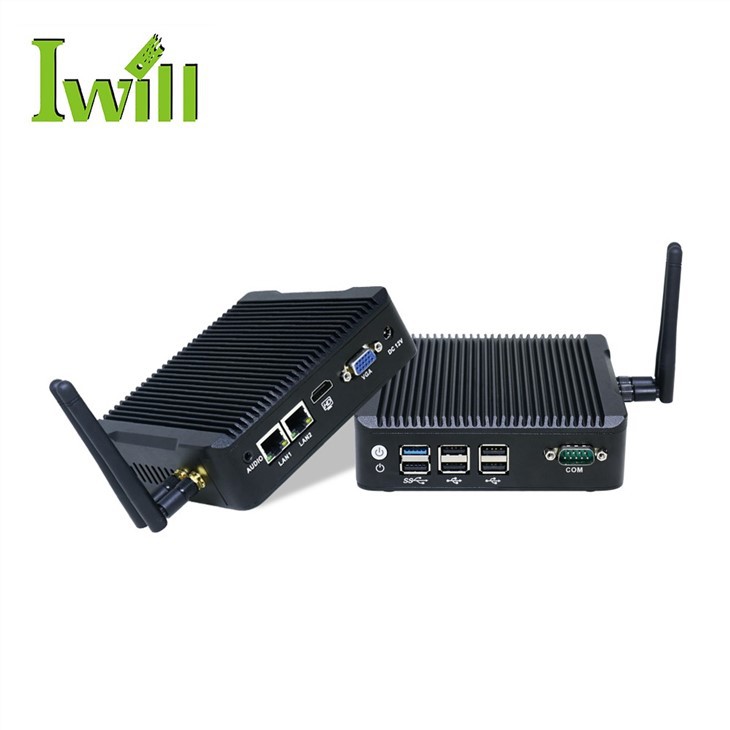

Low Power Celeron J1900 Mini Computer
◇ Mini PC comes with Intel Celeron J1900/ Intel Pentium N3540 Quad core CPU;
◇ Integrated Intel HD Graphics;
◇ Support 1*DDR3L RAM slot，Max. Support 8GB;
◇ 1*VGA，1*HD,1*USB3.0，5*USB2.0，1*RS232 COM;
◇ 1*MINI PCIE Slot（WIFI/BT Optional）;
◇ Support OS:
Send Inquiry
Product Details ofLow Power Celeron J1900 Mini Computer
N3 is an ultra fanless low power celeron J1900 mini PC. It uses Intel® Celeron™ J1900 / Intel Pentium N3540 quad core processor, support Windows 7/8/10 & Linux OS etc.,2*10/100/1000M RTL8111E 1000M LAN,Support 1*DDR3L 1333/1600MHz SODIMMRAM slot,Max. Support 8GB,support 1*MSATA and 1*2.5 inch HDD.
Specification
| Module | Low power celeron J1900 Mini PC |
|
Processor |
Intel Celeron J1900(Quad core quad threading,2MB Second Level Cache 1.99GHz) |
| Intel Pentium N3540(Quad core quad threading,2MB cache,2..16GHz,Max turbo 2.66GHz) | |
| Display Chip | Intel HD Graphics, support VGA,HDMI |
| RAM | 1*DDR3L Memory Slot 1333/1600MHz, Max. Support 8GB |
| LAN | 2*10/100/1000M RTL8111E LAN |
| Storage | Support 1*MSATA,1*2.5 inch HDD |
| Expansion | Support 1*Mini PCIE(WIFI/BT Optional) |
| USB | Support 1*USB3.0 and 5*USB2.0 |
| COM | Support 1*RS232 COM |
| Dimension | 134*126*38.5MM |
| Weight | 1 KG |
| Power Supply | DC 12V |
|
Front I/O |
1*Power Switch,1*USB3.0,5*USB2.0,1*RS232 COM |
|
Rear I/O |
1*Audio,2*RJ45 LAN,1*VGA,1*HDMI,1*DC Input |
|
Expansion Slot |
Support 1*MINI PCIE Slot(WIFI and Bluetooth Optional) |
|
Support 1*MINI PCIE Slot(Support MSATA) |
|
|
Input Voltage |
Support DC 12V Input |
|
Work Humidity |
5%～95%non-condensing |
| Work Temp | -10℃～50℃ |
Features
1. Support synchronous and asynchronous dual display
Nano-N3 is equipped with full HD 1080p dual display, integrated Intel HD graphics, and supports dual HD ports,
2. Uninterrupted work 7*24 hours a day!
Strong heat dissipation capacity, almost no noise
3. Small size and high performance
The size is 134 * 126 * 38.5 mm, and the computer can be placed on the monitor through the VESA bracket, so the space is super small.
N3 is the best-selling product of IWILL, with low power consumption, compact body and no space (134*126*38.5mm), it is the best choice for office. The case material is made of all aluminum alloy structure, fanless design, supports one MSATA, one 2.5-inch hard disk slot, supports DC12V input, working humidity 0℃~+50℃ (commercial HDD), -20℃~+50 ℃ (industrial SSD), air flow on the surface.
Warm Tips: If you're interested in this Low power celeron J1900 Mini PC,and want to know more information, like quotation, products, solutions, etc.,welcome to contact!
Email: jessie@iwilltech.cn
Skype: iwilljessie
Wechat ID: Ms_Jessie_Wang
