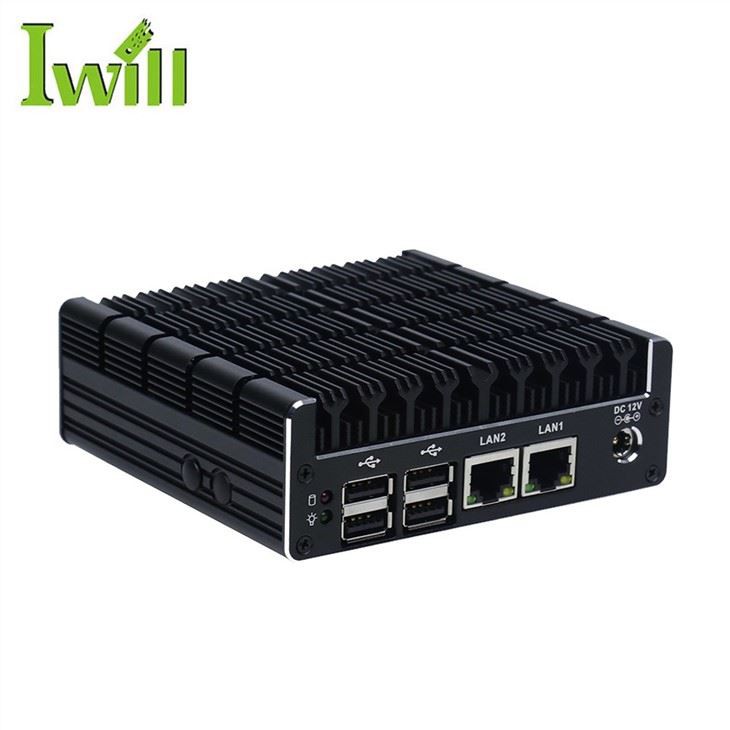

J3060 Celeron Mini Pc
Onboard Intel Celeron J3060 processor；Max.Support DDR3L 1600 8G RAM；
Support 2*MINI PCI-E Slot；
Support 2*HDMI；
Support 2*Intel 1000M LAN；
Support OS：
Send Inquiry
Product Details ofJ3060 Celeron Mini Pc
NUC-C3 is a J3060 Celeron mini pc, Material: Rugged, all‑aluminum chassis with anodized finish – built to dissipate heat silently and withstand 24/7 use in offices, kiosks, or industrial settings.
Processor: Intel® Celeron™ J3060 (2 cores, 2 threads; 1.6–2.48 GHz burst) – ultra‑low power (6 W TDP) yet efficient enough for light server, signage, or firewall tasks.
RAM: 1× DDR3L‑1600 SODIMM, up to 8 GB – easily supports Windows, Linux, or lightweight virtualization.
The whole machine adopts aluminum alloy mold forming, simple structure, with good dustproof, heat dissipation, anti-vibration and EMC performance, high reliability, strong environmental applicability.
| J3060 Celeron mini pc | |
|
Model |
NUC-C3
|
|
Color |
Black |
|
Material |
High-quality all aluminum,surface anodic oxidation |
|
Processor |
Intel Celeron J3060 |
|
RAM |
1*DDR3L 1600MHz SODIMM RAM Slot,Max turbo 8GB |
|
Display Chip |
Integrated Intel HD Graphics |
|
Display Port |
2*HDMI(Support synchronous/asynchronous dual display) |
|

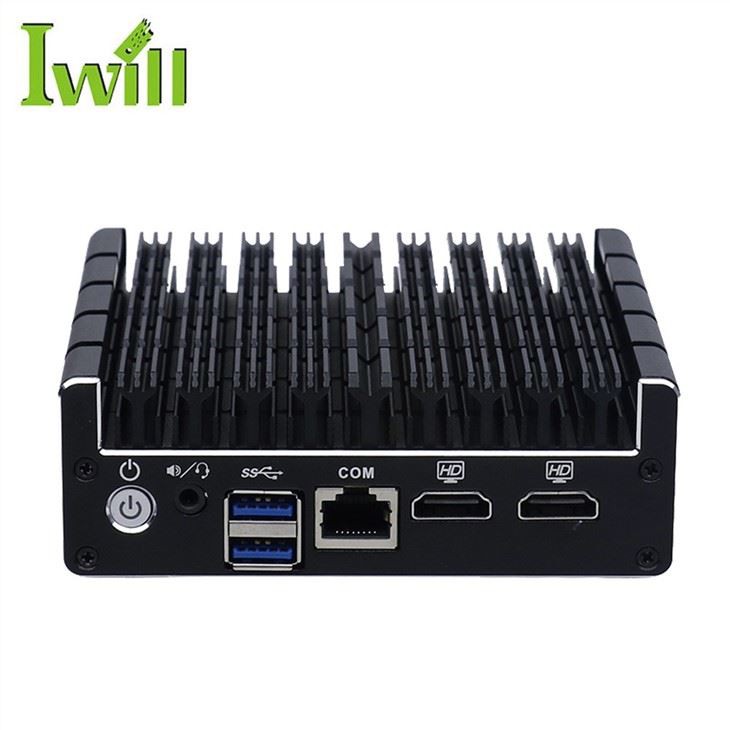

Front I/O |
1*Power Switch, 1*Audio 2*USB3.0, 1*RJ45 COM 2*HDMI |
|
Rear I/O |
2*RJ45 LAN, 4*USB2.0, 1*DC Input |
|

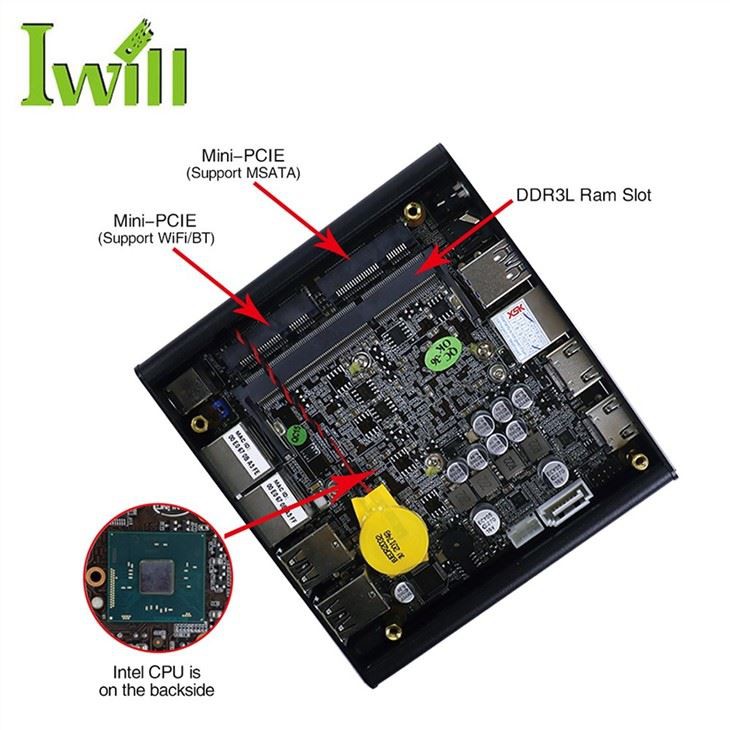

Expansion Slot |
1*MINI PCIE Slot(WIFI/Bluetooth Optional) |
|
1*MINI PCIE Slot(Support MSATA) |
|
|
Network |
2*Intel i211-AT 1000M LAN |
|
Storage |
1*MSATA Slot |
|
Input Voltage |
Support DC 12V Input |
|
Other Function |
Auto power on when there is electricity, Timing boot,Wake on LAN,PXE boot,Watchdog(0～255 level)(Standard version doesn't set these function) |
|
Work Temp |
0℃ ～ +50℃(Commercial HDD),-20℃ ～ +50℃(Industrial SSD),Surface air flow |
|
Work Humidity |
5% ～ 95% non-condensing |
|
Certificates |
CE, CCC, FCC Class A, ROHS |
|

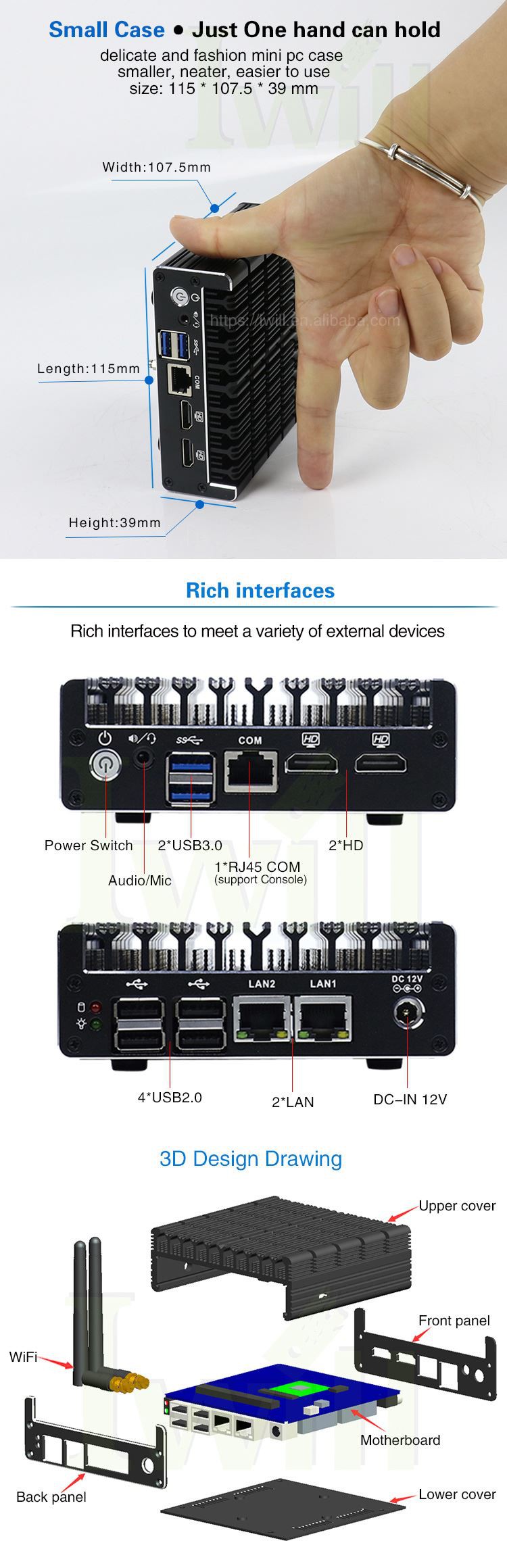

Dimension |
115 * 107.5 * 39mm |
|
Net Weight |
0.5kg |
|
Application |
Business Office,HD Video Playback,Home Learning,Router,Network Security etc. |
Advantages
1. Silent and robust fanless build
Fanless architecture + full aluminum shell removes dust-related failures and avoids noisy fans-perfect for retail, classrooms, and healthcare environments.
2. Low-power yet capable
With just 6 W TDP, you get burst performance up to 2.48 GHz-enough to handle gigabit firewall duties, lightweight server tasks, or HD signage without thermal throttling.
3. Edge & connectivity friendly
Includes dual Intel i211AT Gigabit LAN, 6 USB ports, MSATA slot-everything you need for networking, storage, cameras, sensors, or POS peripherals.
If you are interested in the J3060 Celeron Mini Pc, welcome to contact us!
