Intel 4th I5 4300U Fanless Industrial Pc
◇ Support Intel Core i5 4300U dual core processor
◇ Max. Support DDR3L 8G RAM
◇ Support 1*MSATA Slot，1*2.5” HDD
◇ Support WIFI/3G/4G（Choose one from three）
◇ Support 6*COM（COM3 RS232/422/485 Optional）
◇ Support OS：
Send Inquiry
Product Details ofIntel 4th I5 4300U Fanless Industrial Pc

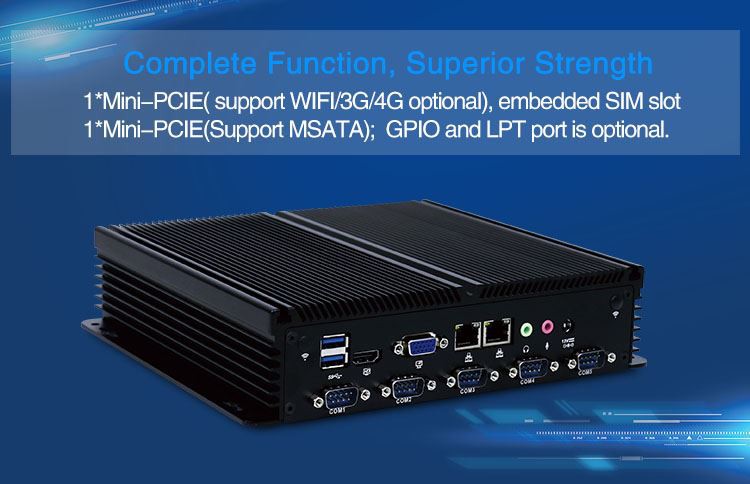

The High end IBOX-205 Plus I5 4300U embedded industrial pc is a fairly satisfactory one among the industrial computer, and the price is cheap. Powered by Intel Core i5 4300U dual core four-thread processor, it equipped DDR3L 1333/1600MHz SODIMM RAM Slot, Max. Support 8GB memory, integrated Intel HD Graphics 4400 core graphics card, 1*VGA display interface, 1*HDMI high-definition display interface (support synchronous/asynchronous dual display), 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot, supports 1*MSATA slot, 1*2.5 inch hard drive bay (optionally supports 2*2.5 inch hard drive bay).
Model | IBOX-205 Plus |
Color | Black（Color can be customized） |
Material | High-quality all aluminum，surface anodic oxidation |
Processor | Onboard Intel Core i5 4300U（dual core quad threading，1.9Ghz，Max. Turbo 2.9Ghz）； |
RAM | Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot，Max. Support 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics 4400 |
Display Port | 1*VGA，1*HDMI（Support synchronous and asynchronous dual display） |
Front I/O | 4*USB2.0，1*COM，1*Power Switch； |
Rear I/O | 2*USB3.0，5*COM（COM3 RS232/422/485 Optional），2*1000M LAN |
1*VGA，1*HDMI，1*DC12V Input，1*Mic，1*Line Out | |
Expansion Slot | Support 1*MINI PCIE Slot（Support MSATA）； |
Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot； | |
Optional Ports：GPIO、LPT、PS/2 (Standard version doesn’t include these ports) | |
Network | 2*Intel i211-AT 1000M LAN |
Storage | Support 1*MSATA Slot，1*2.5” HDD（2*2.5” HDD Optional） |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
Work Humidity | 0% ～ 95% non-condensing |
Certificates | CE、 CCC、 FCC Class A、 ROHS |
Dimension | 234 * 200 * 54mm |
Net Weight | 2.0kg |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
Warm Tips: If you're interested in this intel core I5 4300U embedded industrial pc, and want to know more information, like quotation, products, solutions, etc., we also have other series of products, such as mini pc, industrial pc, network sever, etc., welcome to consult to I5 4300U embedded industrial pc to get more details,Jessie Wang can provide more help for you.
